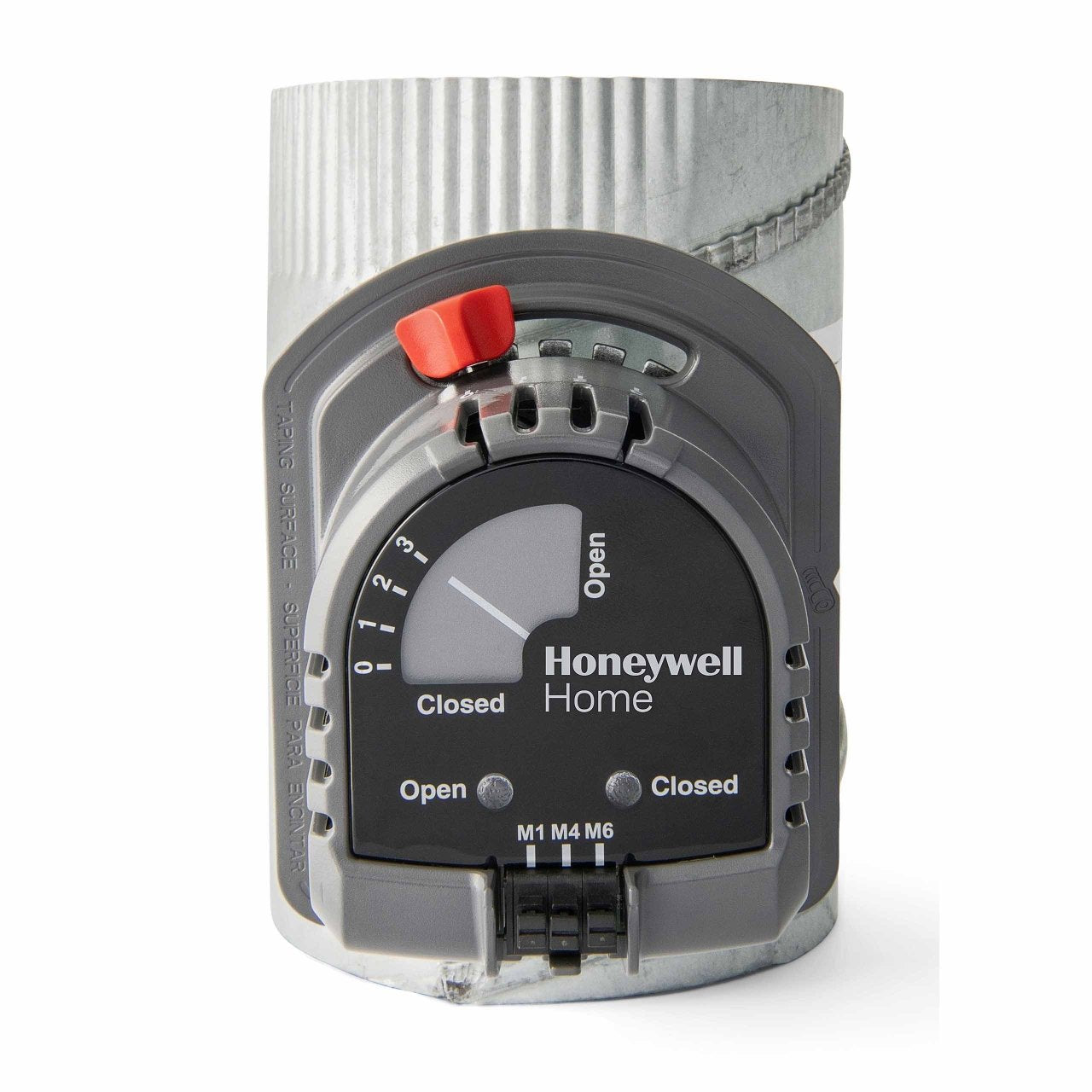

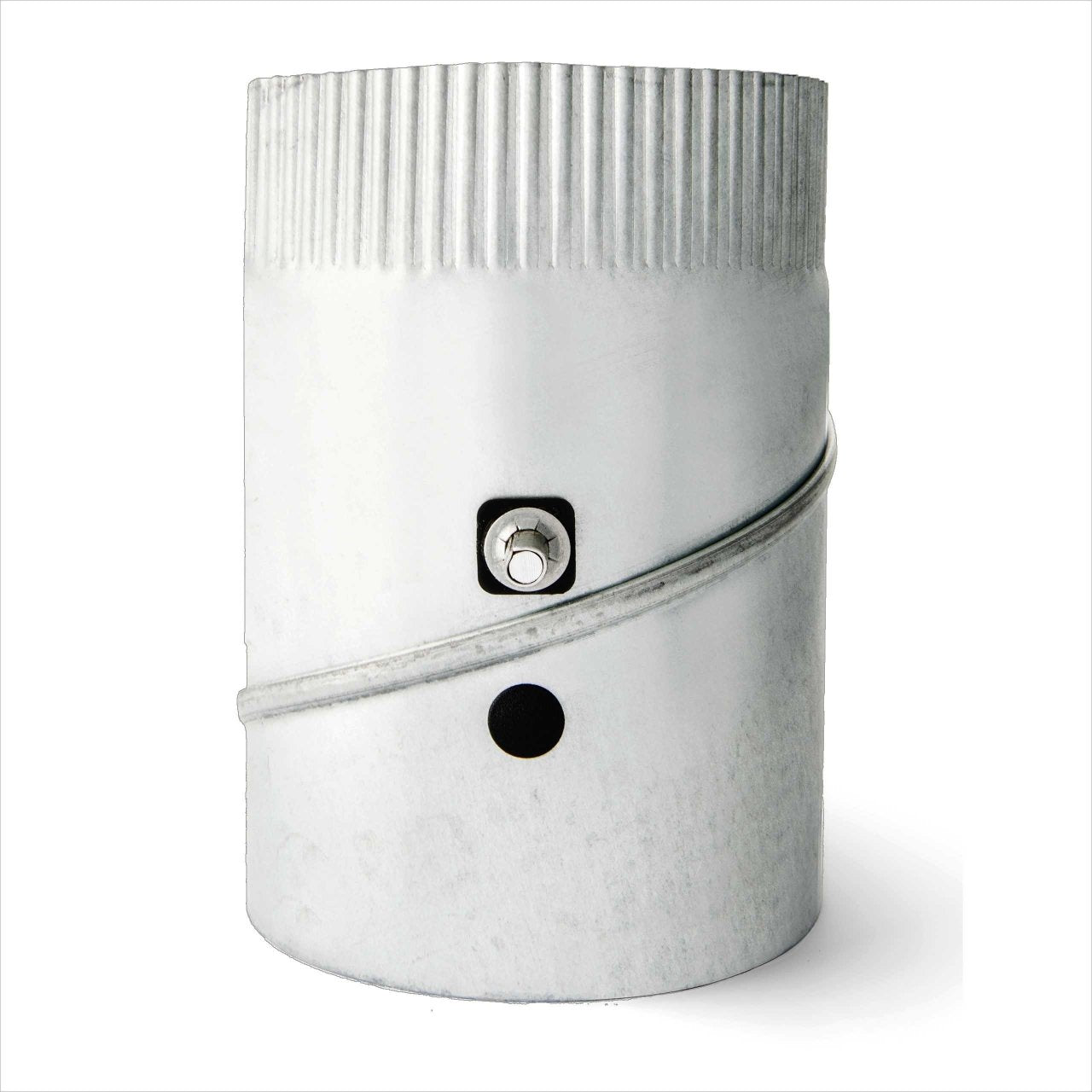

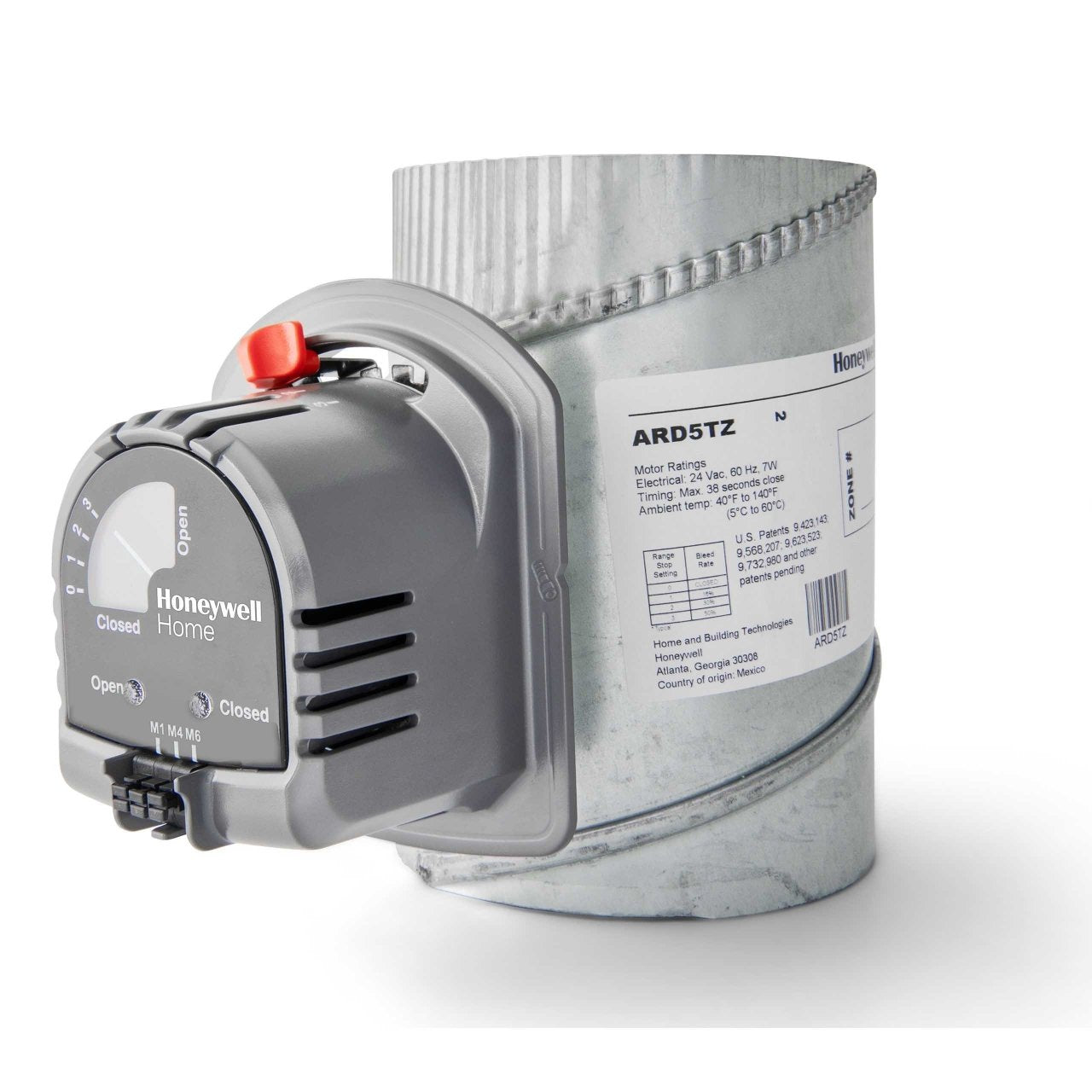

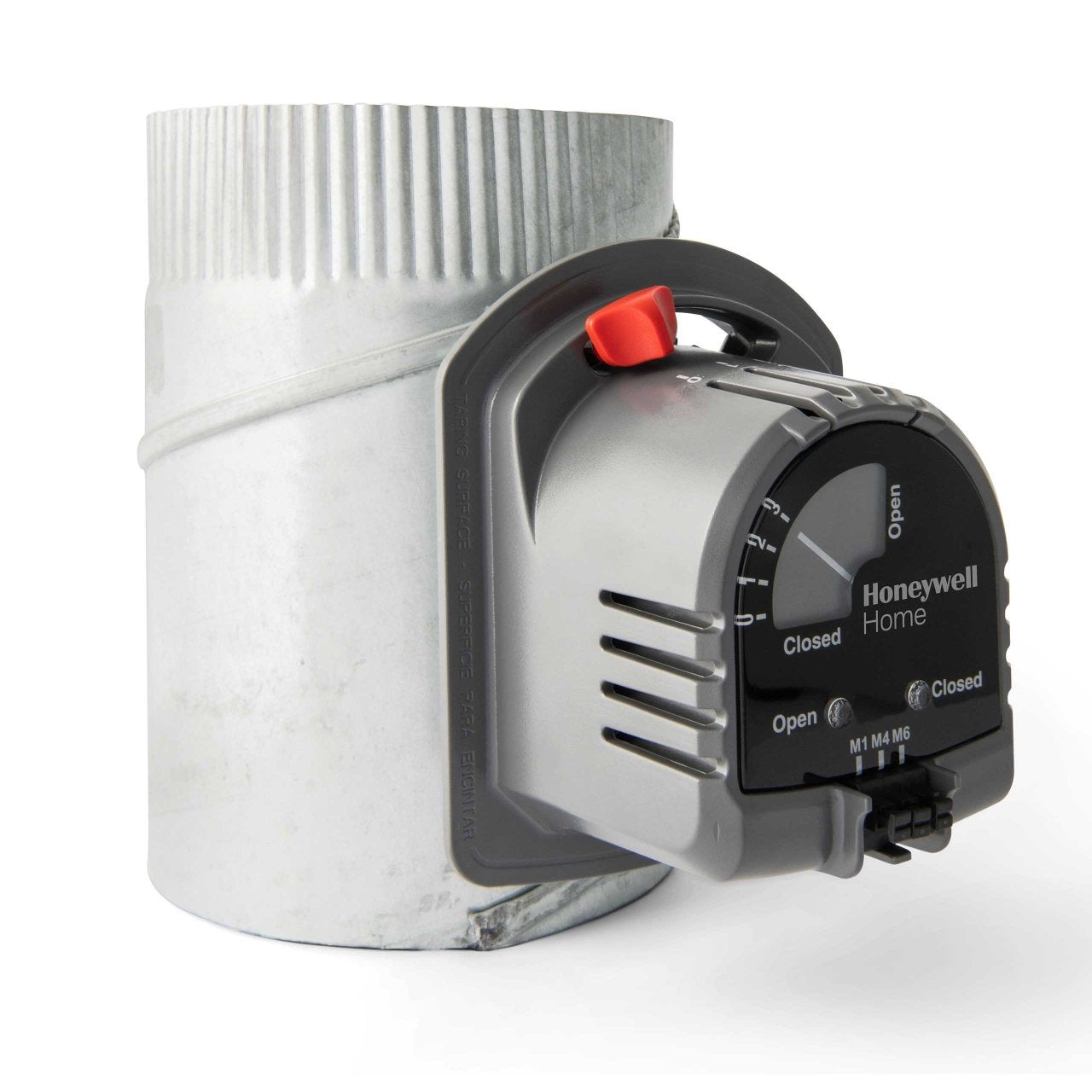

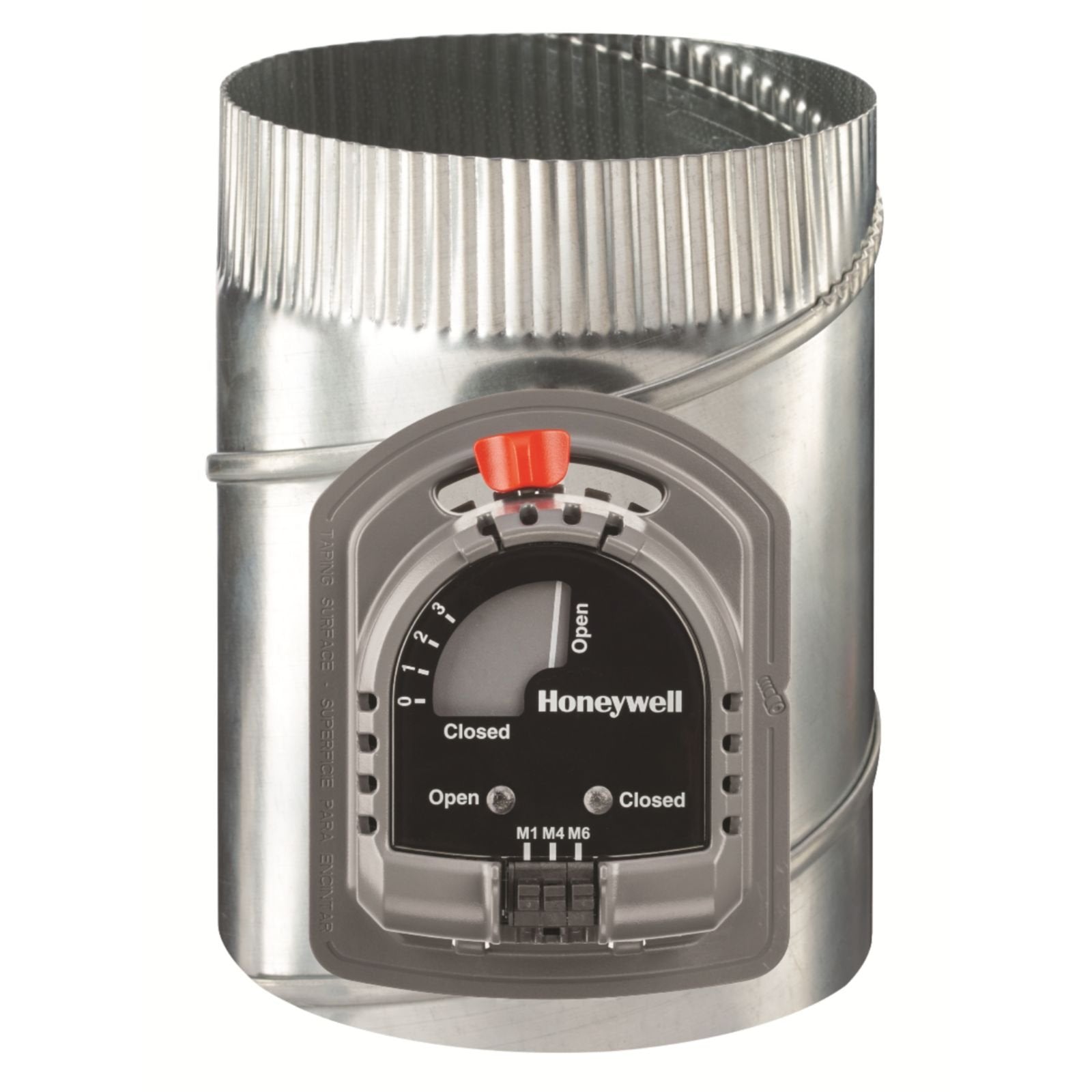

Honeywell ARD6TZ Round Automatic Damper, 6 inches

Product Description

The Honeywell ARD6TZ round automatic damper, 6", ensures low leakage while controlling circulating air in heating, cooling, and ventilation systems. Features a galvanized steel single-blade damper that closes tightly against the gasket for minimal leakage. It is designated as a power closed/spring return open damper for use with Honeywell Zoning Systems.

• Power-close
• Spring-open
• Low leakage

Product Highlights

This automatic round damper is designed for use in HVAC zoning systems, providing efficient airflow control and minimal leakage.

Product Information

Standard Information

• Brand: HONEYWELL
• Manufacturer Part Number: ARD6TZ

Technical Specifications

• Item Model Number: ARD6TZ
• Manufacturer: Honeywell
• Part Number: ARD6TZ
• Size: 6 Inch
• Type: Automatic, Single Blade
• Shape: Round
• Finish: Galvanized
• Series: ARD, TrueZONE
• Timing: 30 sec Power Open/10 sec Spring Return
• Material: Steel
• Motor Type: Power Closed, Reversible, Spring Open
• Rotation Angle: 90 deg
• Voltage Rating: 24 V
• Temperature Rating: 40 - 140 deg F
• Electrical Connection: M1 Power, M6 Common, M4 Terminal
• Brand Name: Honeywell
• Voltage: 24 VAC
• Length: 6"
• Width: 6"
• Damper Duct Shape Type: Round
• Damper Type: Zone
• Application: Zone Damper
• Damper Material: Galvanized Steel
• Warranty: 1 Year
• Activation: Electric
• Actuator Housing Material: Molded Plastic
• Actuator Power Consumption: 8 VA
• Actuator Torque: 71 in-oz
• Blade Material: Galvanized Steel
• Leakage: Less than 1% at 0.5 in WC
• Position Indicator Included: Yes
• Position Indicator Type: Damper Position Range Stops, LED indication light for open and close
• Range Stop: Yes
• Range Stop Options: 4
• Blade Type: Automatic, Power Closed, Round, Single, Spring Open
