Adams Rite PS-EXIT Power Supply for Exit Devices

Product Description

The Adams Rite PS-EXIT Power Supply provides regulated power for Adams Rite 8000 and 3000 Series exit devices with Motorized Latch Retraction (MLR) or Electric Latch Retraction (LR). This power supply is capable of controlling two exit devices, allowing for optimal performance and safety.

• Power and control for two exit devices
• User-configured timer for flexible operation
• Filtered and regulated power for reliable performance

Product Highlights

The PS-EXIT ensures smooth operation of exit devices by providing necessary power while accommodating user-specific settings.

Product Information

Standard Information

• Brand Name: Adams Rite by ASSA ABLOY
• Manufacturer: ASSA ABLOY

Technical Specifications

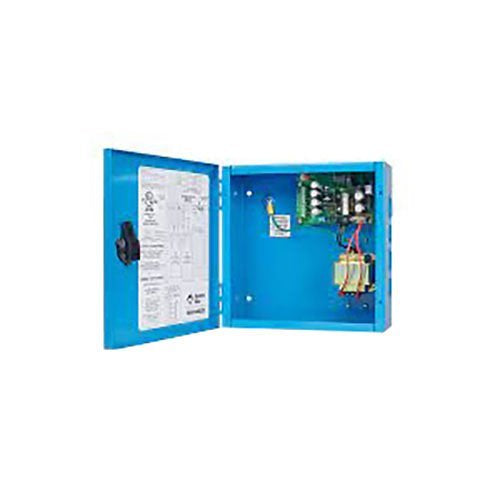

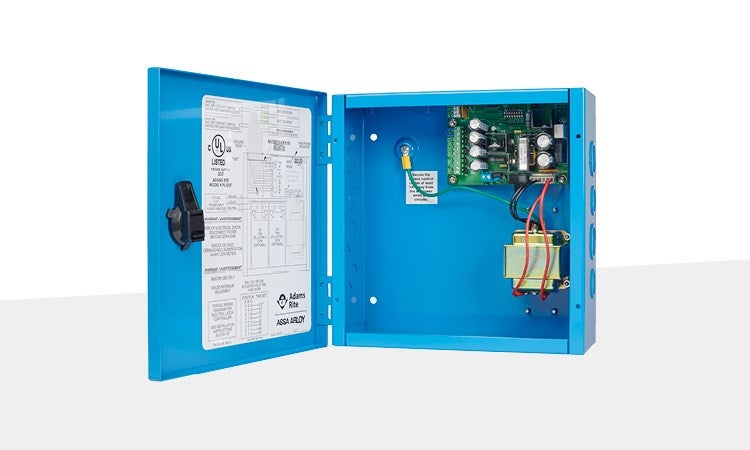

• Housing: Hinged steel cabinet, measures ten inches by ten and three-eighths inches by four and one-eighth inches
• Timer: User-configured, holds exit device unlatched for two to sixty seconds
• Operating Modes: Single Input (Sequential Operation) and Dual Input (Independent Operation)
• Input Power: 115 VAC
• Rated Output Current: Up to 0.8 A per channel
• Typical Output Voltage: 24 - 26 VDC
• Limited Warranty: 5-Year
• Compatibility: Supports Adams Rite exit devices (8000 and 3000 series)
