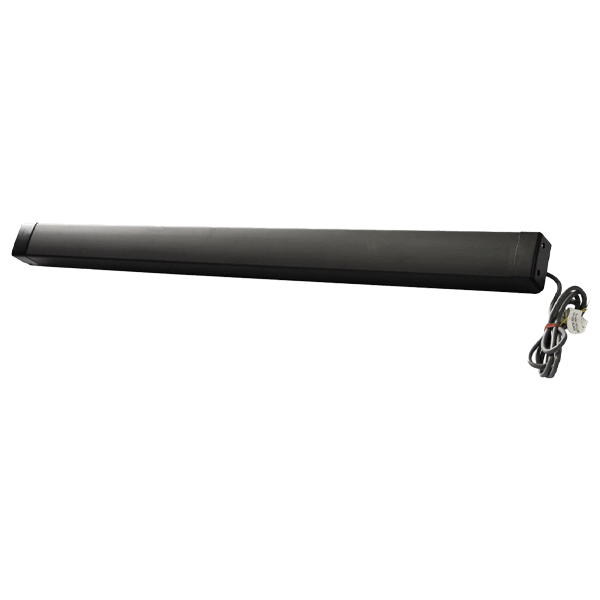

Adams Rite 8802EL-36-12V 8800 Narrow Stile Rim Exit Device, Electric Latch Retraction, 36 inches

Product Description

The Adams Rite 8802EL-36-12V is an electromechanical narrow stile rim exit device designed for aluminum doors. It provides a reliable life-safety exit solution with its unique Starwheel interlocking feature. This device suits single or double doors with a mullion. The electric latch retraction allows for quick door unlocking via a remote trigger.

• Patented Starwheel bolt interlocks door to frame.
• Strong construction for enhanced security.
• Quick installation process.

Product Highlights

Engineered for the safety of building occupants, this exit device features simple electrical installation and effective performance in emergency situations.

Product Information

Standard Information

• Brand Name: Adams Rite by ASSA ABLOY
• Manufacturer: ASSA ABLOY

Technical Specifications

• ADI Part Number: 0L-8802EL361
• Manufacturer Part Number: 8802EL36-12
• Product Type: Electromechanical Exit Bar
• Input Voltage: 12V DC
• Finishing: Dark Bronze Anodized
• Length: 36 inches
• Limited Warranty: 5-Year
• Compatibility: Aluminum doors
• Country of Origin: US
• Certifications: UL 305 Panic Hardware, ANSI/BHMA A156.3-2008 Grade 1
• Electrification: Electric Latch Retraction (EL) - 12 Volts
• Materials: Extruded aluminum push bar
• Handing: Non-handed
• Push Bar Length: 36 inches
• Door Thickness Compatibility: Suits 1-3/4 inches standard, up to 2-1/4 inches
• Stile Width: Minimum 2 inches
• Projection: 2-5/8 inches fully projected, 1-5/8 inches dogged
• Dogging Method: Standard hex key or optional cylinder dogging
• Fasteners: Standard machine screws
• Cylinders: Fits standard 1-5/32 inches diameter rim cylinder
• Strike Options: Standard and narrow strikes included
• Bolt Mechanism: Patented Starwheel bolt
