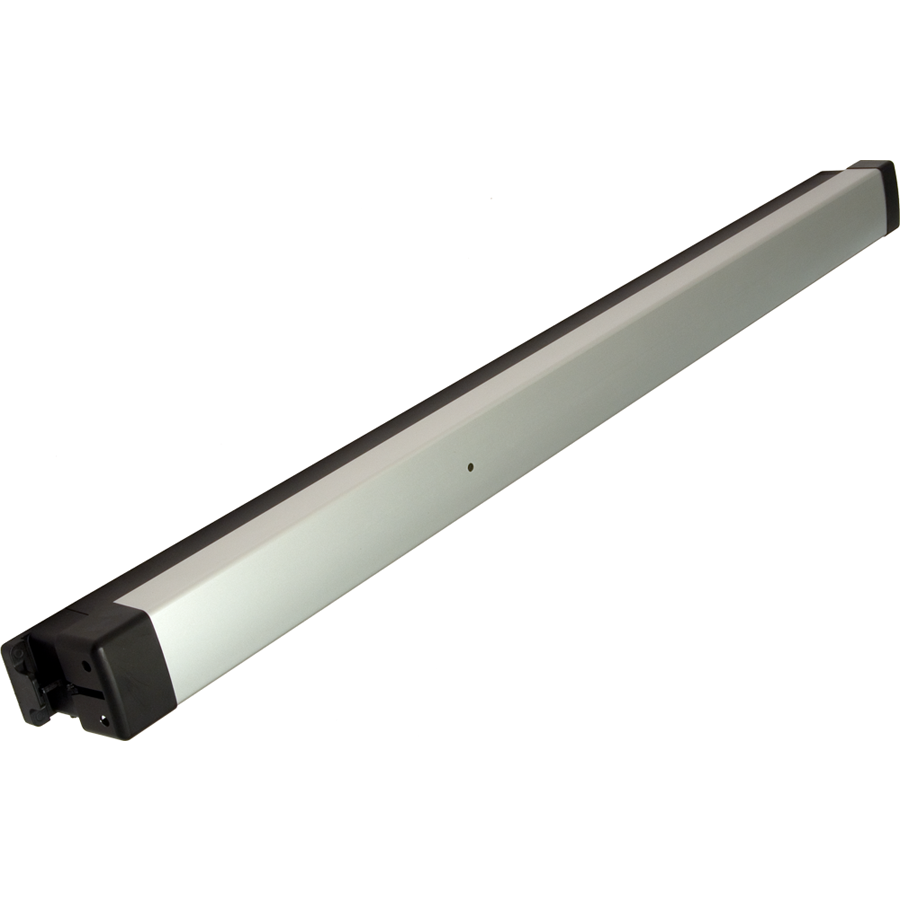

ADAMS RITE 8801MLR-36-24V Narrow Stile Rim Exit Device 36 inches Motor Latch Retraction

Product Description

The ADAMS RITE 8801MLR-36-24V is a narrow stile rim exit device tailored for narrow stile aluminum doors. This exit device offers a life-safety solution featuring a motorized latch retraction. It is optimal for both single doors and double doors with a mullion, providing a non-handed installation suitable for various aluminum door styles.

• Motorized Latch Retraction: Unlatches quietly and efficiently.
• Non-handed Design: Fits various door styles including narrow, medium, and wide.
• No Calibration Required: Easy installation for quick setup.

Product Highlights

This exit device enhances security while ensuring easy access during emergencies.

Product Information

Standard Information

• Brand: ADAMS RITE
• MPN: 8801MLR-36-24V

Technical Specifications

• UL 305 Panic Hardware: Yes
• ANSI/BHMA Grade: A156.3-2008 Grade 1
• Motorized Latch Retraction: Yes
• Materials: Extruded aluminum, clad or anodized
• Handing: Non-handed
• Push Bar Length: Optional 36 inches / 48 inches
• Door Thickness: Suits 1-3/4 inches to 2-1/4 inches
• Stile Width: Minimum of 2 inches
• Projection: 2-5/8 inches (fully projected), 1-5/8 inches (dogged)
• Dogging: Hex Key
• Fasteners: Standard machine screws
• Cylinders: Fits standard 1-5/32 inches diameter rim cylinder
• Strike: Standard and narrow versions included
• Voltage: 24V DC
• Grade: Grade 1
• Door Width: 36 inches
• Door Type: Aluminum
• Exit Device Type: Motorized Latch Retraction
• Category: Electrified Exit Devices
• Finish Code: 628
• Finish Color: Anodized Aluminum
• Series: 8800
