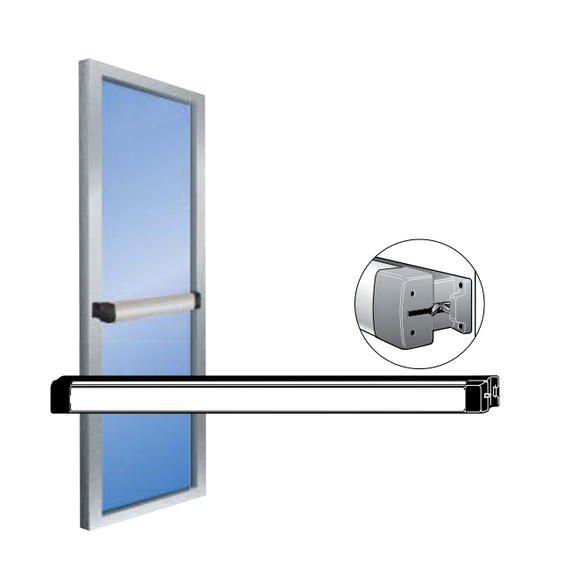

ADAMS RITE 8801EL-48-24V Narrow Stile Rim Exit Device with Electric Latch Retraction 48 inches

Product Description

The ADAMS RITE 8801EL-48-24V is a narrow stile rim exit device ideal for narrow stile aluminum doors. This device supports single doors or pairs of doors with a mullion. The electric latch retraction feature enables remote locking and unlocking with a solenoid for quick access.

• Electric latch retraction for easy access.
• Suitable for single doors or pairs with a mullion.
• Designed for narrow stile applications.

Product Highlights

This exit device provides safety and convenience, making it suitable for commercial use.

Product Information

Standard Information

• Series: 8000 Series
• Device Type: Rim Device

Technical Specifications

• Device Length: 48 inches
• Door Thickness: 1-3/4 inches to 2-1/4 inches
• Voltage: 24
• Application: Single doors or pairs of doors with a mullion
• Device Rating: Panic exit hardware
• Finish Description: Satin Aluminum
• Standards: UL 305; ANSI/BHMA A156.3, Grade 1
• Included Components: Standard strike and narrow versions for centering doors
