ADAMS RITE 8801EL-42-24V Exit Device 24V (4.5 inches) REPLACEMENT MPN

Product Description

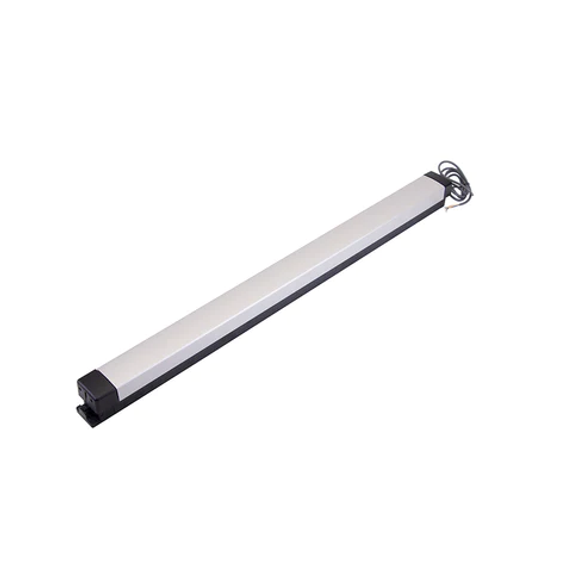

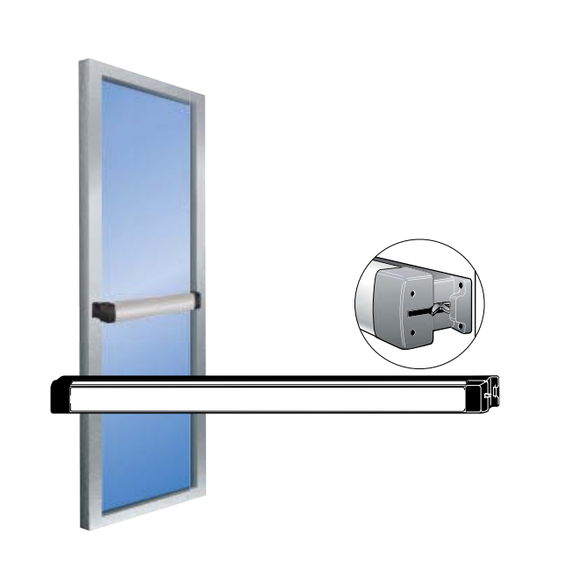

The Adams Rite 8801EL-42-24V is an electric exit device suitable for narrow stile aluminum doors. Operating at 24V, this rim exit device features electric latch retraction for enhanced security and ease of use. It is made in the United States and is designed for single doors or pairs of doors with a mullion. In case of a power failure, the device automatically relocks.

• Electric latch retraction with solenoid operation.
• Compatible with narrow stile aluminum doors.
• UL 305 certified panic hardware for life safety applications.

Product Highlights

This exit device is built for durability and safety, integrating seamlessly into various architectural designs, suitable for both standard and fire-rated applications.

Product Information

Standard Information

• Brand: Adams Rite
• Item model number: 8801EL-42-24

Technical Specifications

• Device Type: Rim Device
• Dogging Options: Hex Key Dogging
• Materials: Extruded aluminum
• Handing: Non-Handed
• Door Thickness: Suits 1-3/4 inches, up to 2-1/4 inches
• Stile Width: Minimum 2 inches
• Projection: 2-5/8 inches fully projected
• Voltage: 24V DC
• Door Width: 42 inches
