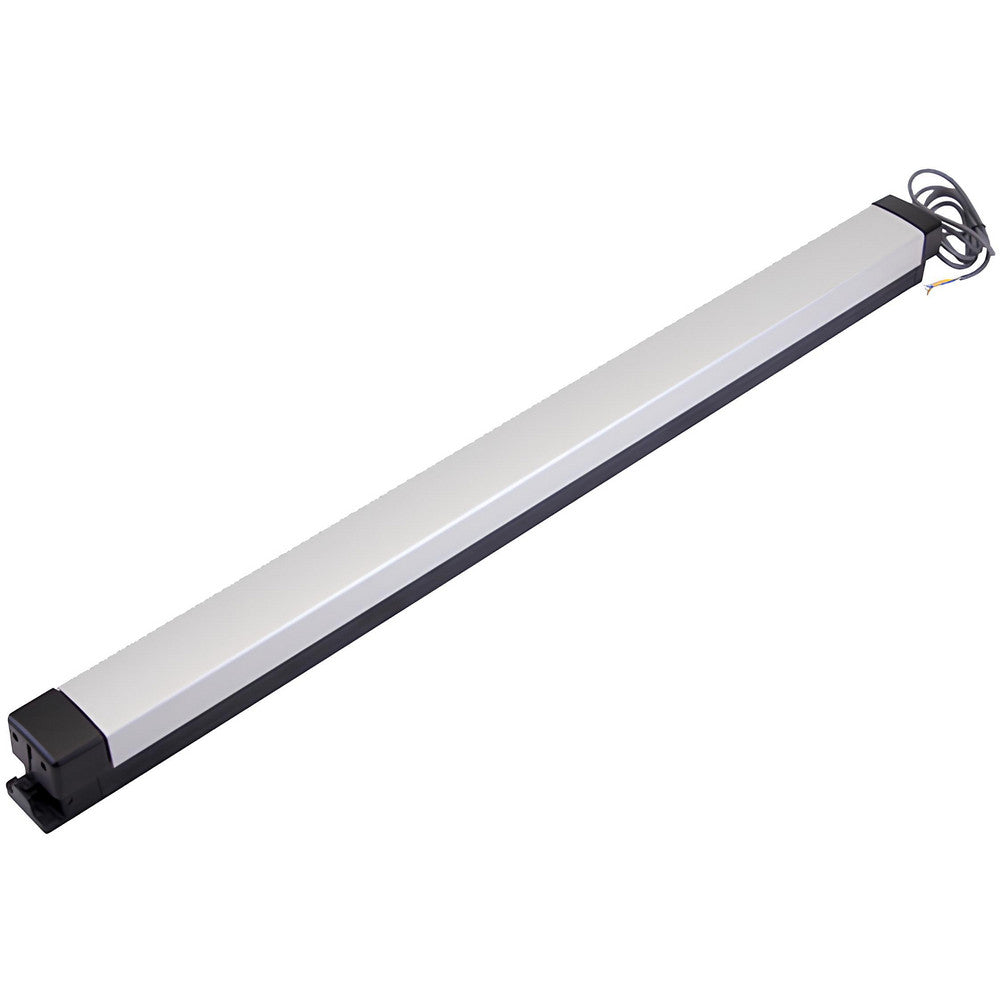

Adams Rite 8701M1-36 Life Safety Rim Exit Device Touchbar Monitor 36 In.

Product Description

The Adams Rite 8701M1-36 is a life safety rim exit device designed for both hollow metal and wood doors. This device includes a touchbar monitor and is suitable for doors with a width of up to thirty-six inches. It is classified as a Grade 1 exit device, featuring a reliable starwheel interlocking solution.

• Life Safety Rim Exit Device
• Touchbar Monitor functionality
• Application for hollow metal and wood doors

Product Highlights

This exit device is designed to ensure safe egress in emergency situations. The touchbar allows for easy operation while maintaining security and safety standards.

Product Information

Standard Information

• Brand: Adams Rite
• MPN: 8701M1-36

Technical Specifications

• Hand: Non-Handed
• Series: 8700 Push Bar
• Fire Rated: No
• Finish: Satin Aluminum Clear Anodized
• Locking Type: Exit Device Only
• Maximum Door Width: 3 ft
• Application: Single Doors or Pairs of Doors with a Mullion
• Function: Exit Only
• Device Length: 36 Inch (3 Foot)
• Device Type: Rim Device
• Dogging Options: Hex Key Dogging
• Standards: UL 305 Panic Hardware; CAN/ULC S104 Fire Door Conformant; NFPA 252 Fire Door Conformant; ANSI/BHMA A156.3, Grade 1
• Device Rating: Life Safety
• Door Material: Hollow Metal and Wood
