ADAMS RITE 8222MLR-36-24V Surface Vertical Rod Exit Device 36 inches x 96 inches REPLACEMENT MPN

Product Description

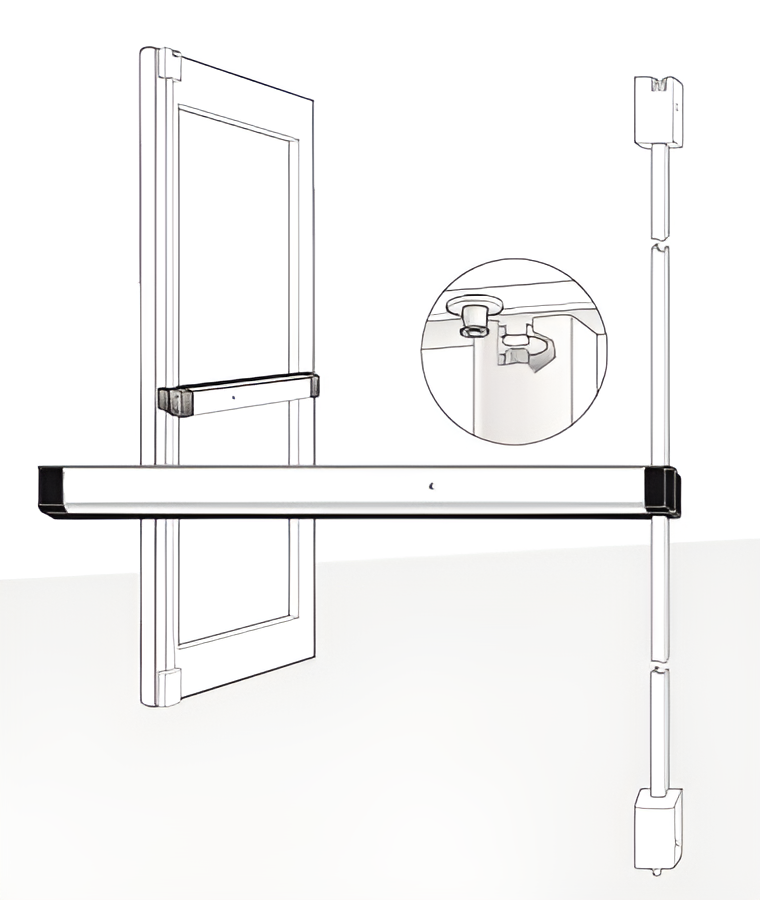

The ADAMS RITE 8222MLR-36-24V is a narrow stile surface vertical rod exit device suitable for aluminum doors. It is designed for applications that require a two-point locking life-safety exit. This device works effectively for both single doors and double door pairs. The push bar is constructed from extruded aluminum and features adjustable steel rods, both protected by contoured covers. This non-handed device is certified to Grade 1 standards.

• Fits narrow and wide stile aluminum doors
• Motorized latch retraction for efficient operation
• Surface vertical rod design enhances security

Product Highlights

This exit device is perfect for trade professionals looking for reliable door security solutions in aluminum frameworks.

Product Information

Standard Information

• Brand: ADAMS RITE
• MPN: 8222MLR-36-24V

Technical Specifications

• Grade: Grade 1
• Handing: Non-Handed
• Door Type: Aluminum
• Exit Device Type: Motorized Latch Retraction, Narrow Stile, SVR Exit Device
• Dogging: Hex Key
• Materials: Push bar made of extruded aluminum
• Push Bar Length Standard Sizes: Thirty inches, Thirty-six inches, Forty-two inches, Forty-eight inches
• Bar Height: Adjusts from thirty inches to forty-four inches
• Projection: Two and fifteen sixteenth inches when fully projected, one and fifteen sixteenth inches when dogged
• Door Height: Suitable for doors up to eight feet
• Door Thickness: Suits one and three quarter inches to two and one quarter inches
• Stile Width: Minimum two inches
• Cylinders: Select standard one and five thirty second inch diameter rim cylinder
• Bolts and Strikes: Features a patented top latching mechanism with interlocking components
