ADAMS RITE 8222-36 Narrow Stile Surface Vertical Rod Exit Device 36 inches

Product Description

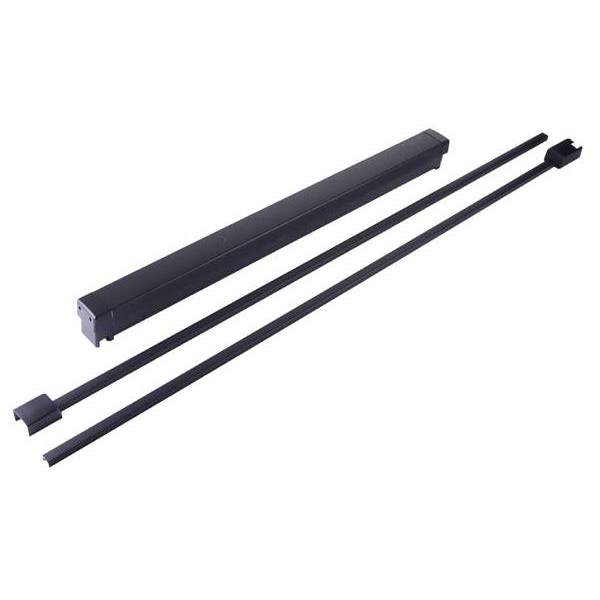

The Adams Rite 8222-36 narrow stile surface vertical rod exit device is suitable for aluminum doors with a thirty-six inch opening. This is a Grade 1 exit device that features a patented top latching mechanism, which securely interlocks the door to the frame. It meets both commercial and residential requirements and complies with ADA and GSA standards.

• Patented top latching mechanism for secure door interlocking
• Durable construction for added security
• Adjustable steel rods enclosed in contoured covers

Product Highlights

This exit device provides reliable security and efficient functionality for various applications.

Product Information

Standard Information

• Brand: Adams Rite ASSA ABLOY
• Part Number: 8222-36

Technical Specifications

• Size: 36 inches
• Dogging: Standard dogging
• Product Type: Surface mount vertical rod device
• Finish: US20A Dark Statuary Bronze
• Grade: ANSI Grade 1
• Rail Length: 36 inches
• Stile Type: Narrow stile application
• Door Handing: Non-handed
• Door Lock Function: Exit
• Exit Device Type: Surface vertical rod exit device
• For Door Thickness: 1.75 inches
• For Door Width: 36 inches
• Hardware Included: Hex key dogging
• Interior/Exterior: Interior/Exterior
• Mount Type: Surface
• Package Quantity: 1
• Certifications & Standards: UL Listed
• ADA Compliant: Yes
• GSA Approved: Yes
• Made in the USA: Yes
• TAA/BAA Compliant: Yes
• UL Listed: Yes
• Performance Duty Rating: 1
• Exit Bar Style: Touchbar
• Door Width - Maximum: 36 inches
• Door Height - Maximum: 84 inches
• Door Thickness - Minimum: 1-3/4 inches
• Door Thickness - Maximum: 2-1/4 inches
• Fits Stile Width: 2 inches
• Standards: ANSI/UL 294; ANSI/UL 305 (Panic Hardware); ANSI/ULC-S132 (Panic Hardware for Canada); UL 305
