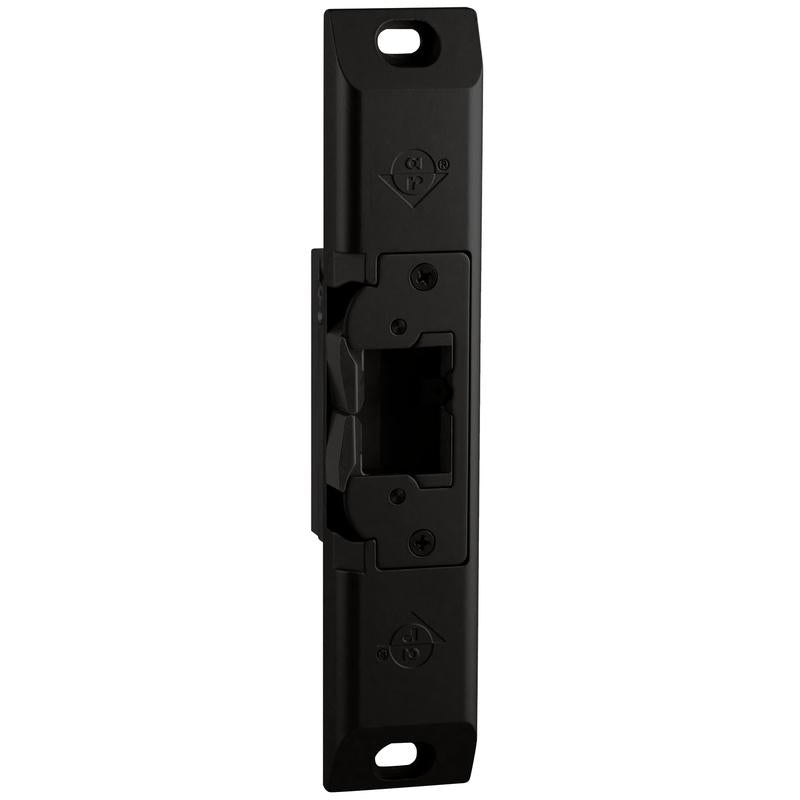

ADAMS RITE 74R2-130 UltraLine Electric Strike Pack of 1

Product Description

The Adams Rite 74R2-130 UltraLine electric strike is designed for use with aluminum, wood, or hollow steel jambs and rim exit devices. This model is made from zinc-aluminum alloy and allows for electrical remote control, which permits a door to open without needing to actuate the exit device. The strike is compatible with exit devices that have a pullman bolt and does not require deadlocking bolts. It is compliant with ANSI/BHMA type E09321 (grade 1).

• Compatible with aluminum, wood, or hollow steel jambs
• Clear anodized finish for durability
• Constructed from zinc-aluminum alloy

Product Highlights

This electric strike is suitable for non-handed door handling and supports both fail safe and fail secure configurations. Ideal for enhancing security in commercial applications, it is compatible with cylindrical door locks.

Product Information

Standard Information

• Manufacturer: Adams Rite
• Part Number: 74R2-130

Technical Specifications

• Material: Aluminum
• Item Package Quantity: 1
• Strike Dimensions: 5/8 inches x 1-7/16 inches x 1/2 inches deep
• Faceplate Dimensions: 1-5/8 inches x 9 inches x 1/2 inches
• Latchbolt Projection: 1/2 inches
• Holding Force: Over 1,500 lbs
• Voltage: Selectable between 12 VDC and 24 VDC
• Current Draw at 12 VDC: .44 A
• Current Draw at 24 VDC: .23 A
• Operating Mode: Field selectable fail safe/fail secure
