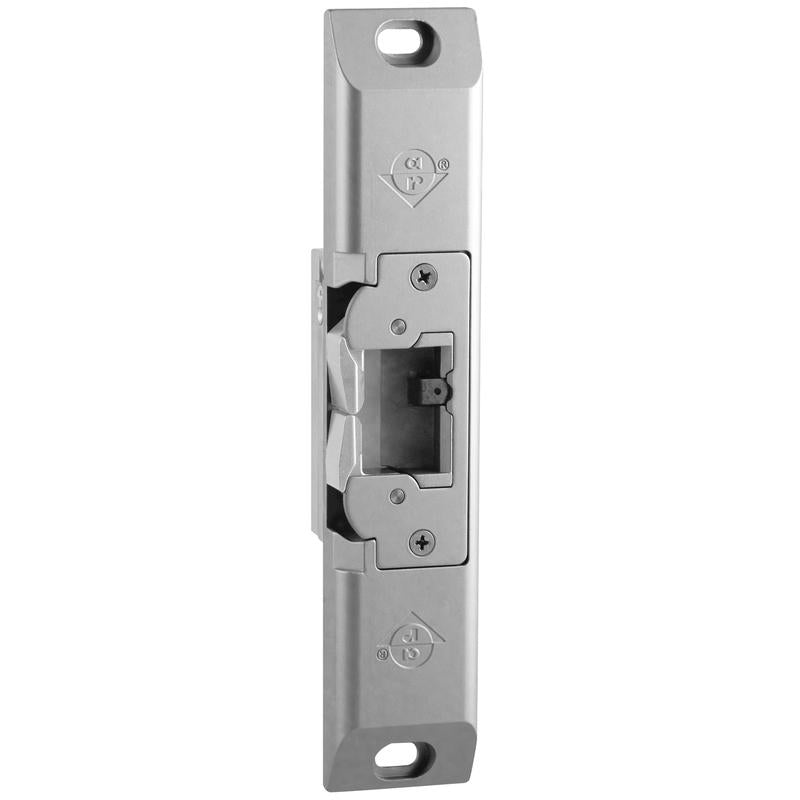

ADAMS RITE 74R1-130 UltraLine Electric Strike (Pack of 1)

Product Description

The Adams Rite 74R1-130 UltraLine Electric Strike is a reliable solution for access control systems. Constructed of zinc-aluminum alloy with a clear anodized finish, this electric strike is suited for use with aluminum, wood, or hollow steel jambs and rim exit devices. It allows for remote operation of doors without needing to actuate the exit device directly, providing flexibility in various installation scenarios. The dimensions of the case are 1 inch by 3 and 3/8 inches by 1 and 1/16 inches, featuring a strike opening of 5/8 inch by 1 and 7/16 inches by 9/16 inch deep. This unit operates on either 12 volts AC or DC, or 24 volts AC or DC.

• Compatible with aluminum, wood, or hollow steel jambs
• Clear anodized zinc-aluminum alloy
• Operates at 12 volts AC/VDC or 24 volts AC/VDC

Product Highlights

The Adams Rite 74R1-130 provides a robust and secure solution for door access, ideal for both commercial and residential applications.

Product Information

Standard Information

• Brand: Adams Rite
• Part Number: 74R1-130

Technical Specifications

• Material: Zinc Aluminum Alloy
• Voltage: Field selectable for 12/24 VDC
• Current Draw: .44A at 12 VDC, .46A at 16 VDC, .23A at 24 VDC
• Fail Safe/Fail Secure: Field selectable
• Dimensions: 1-13/32 inches x 3-3/8 inches x 1-1/16 inches deep
• Strike Opening: 5/8 inches x 1-7/16 inches x 9/16 inches deep
• Certifications: UL 1034, UL 294, ANSI/BHMA A156.18, Grade 1
