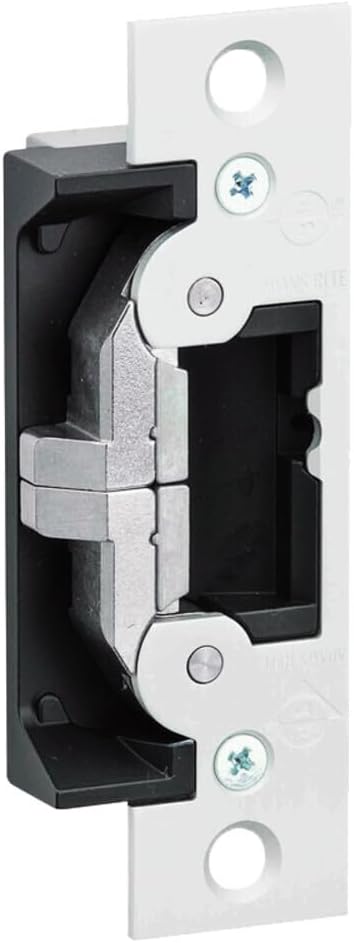

ADAMS RITE 7440-628 UltraLine AR Deadlatch or Cylindrical Latch Electric Strike

Product Description

The ADAMS RITE 7440-628 UltraLine electric strike is suitable for use with radius jambs, Adams Rite deadlatches, and cylindrical locksets. It supports latchbolt projections of one half inch to five eighths inch. Electrical actuation unlocks the strike jaw, permitting the door to open without manual operation of the latch.

• One Ton Jaw Strength
• Low Current Draw
• UL Listed for Burglary Resistance

Product Highlights

This electric strike is designed mainly for aluminum, hollow metal, or wood applications.

Product Information

Standard Information

• Manufacturer: Adams Rite ASSA ABLOY
• Part Number: 7440-628

Technical Specifications

• Item Model Number: 7440-628
• Shape: Square
• Item Package Quantity: 1
• Batteries Required: No
• For Use With: Cylindrical Locksets, Deadlatch
• Grade: Grade 1
• Warranty: 3 Year Limited
• Model Number: 7440
• Power Requirements: 24V/12V AC/DC
• Status Monitor: Optional
• ANSI Grade: Grade 1
• Frame Material: Wood or Hollow Metal
• Locking State: Selectable FS or FSE
• Max Latch Length: Maximum 5/8 Inch Throw
• Mounting: For Centerline Installations
• Product Type: Cylindrical or Narrow Stile Mortise Latch
• Pull Strength: 2001 - 3000 lbs
• UL Rating: UL Burglary Resistance
• Operating Voltage: 12, 16, 24 VAC/DC
• AMP Draw: .163A @ 12AC, .440A @ 12DC, .228A @ 16AC, .458A @ 16DC*, .084A @ 24AC, .230A @ 24DC
• Face Shape: Flat Face, Square Corners

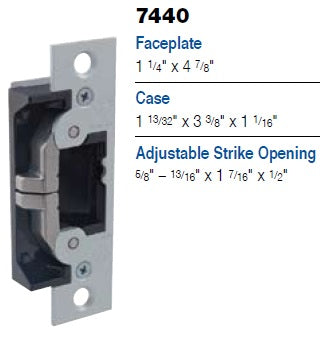

• Faceplate Size: 4-7/8 in. x 1-1/4 in.
• Finish Description: Satin Aluminum Clear Anodized
• Finish Title: 628/US28
• Function: Field Selectable (Safe/Secure)
• Series: 7400 Electric Strikes
