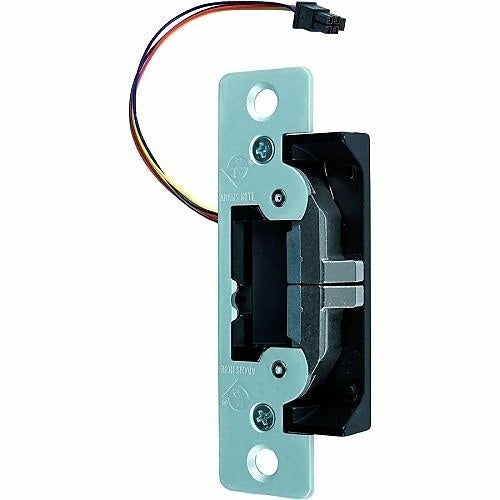

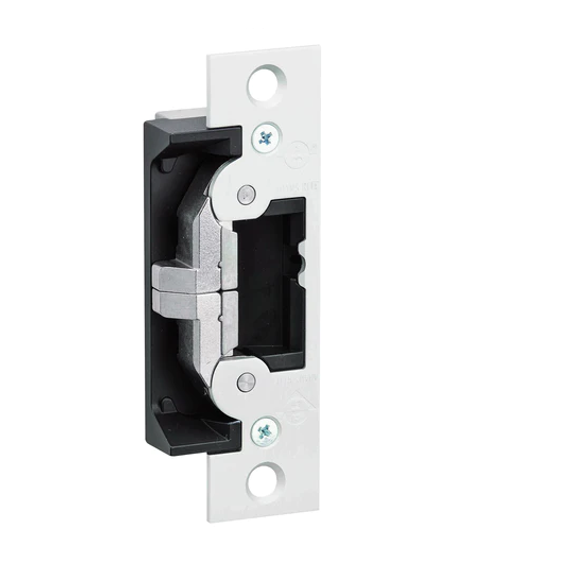

ADAMS RITE 7440-313 UltraLine Electric Strike for Steel and Wood Jambs and Doors

Product Description

The ADAMS RITE 7440-313 UltraLine Electric Strike is a reliable solution for steel and wood jambs and doors. This electric strike works with Adams Rite deadlatches or cylindrical locksets featuring a latchbolt projection of half an inch to five-eighths of an inch. It unlocks the strike jaw electrically, allowing the door to open without needing to engage the latch itself. Ideal for facilities using hollow metal or wood door jambs, it facilitates seamless access control.

• Compatible with Adams Rite deadlatches or cylindrical locksets
• Operates under thirty-five pounds of preload
• Selectable fail secure or fail safe modes, compatible with 12 or 24 volts in DC or AC

Product Highlights

This electric strike enhances security while providing easy access through the door.

Product Information

Standard Information

• Brand: ADAMS RITE
• MPN: 7440-313

Technical Specifications

• ANSI Grade: GRADE 1
• Frame Material: WOOD OR HOLLOW METAL
• Locking State: SELECTABLE FS OR FSE
• Max Latch Length: MAXIMUM 5/8 INCH THROW
• Mounting: FOR CENTERLINE INSTALLATIONS
• Product Type: CYLINDRICAL OR NARROW STILE MORTISE LATCH
• Sales Category: ELECTRIC STRIKE
• UL Certification: UL BURGLARY RESISTANCE
• Voltage and Duty CONT: SELECTABLE 12/24V DC
• Voltage and Duty INT: SELECTABLE 12/24V AC/DC INT
• Warranty: 3 YEAR LIMITED
• Application/Usage: Deadlatch, Door Lock
• Compatible Door Frame Type: Aluminum, Metal, Steel, Wood
• Compatible Door Lock Type: Cylindrical
• Door Handling: Non Handed
• Holding Strength: 1500 lb
• Material: Aluminum
• Security Configuration: Fail Safe, Fail Secure
• Height: 4.87 inches
• Width: 1.25 inches
• Input Current: 230mA, 440mA, 460mA
• Input Voltage: 12V AC, 12V DC, 24V AC, 24V DC
• Environmental Certification: UL
• Environmentally Friendly: Yes
• Features: Latch Projection
• Series: 7400
• Face Plate Length: 1-1/4 inches x 4-7/8 inches
• Lockset Type: For Cylindrical or Deadlatch Locks
• Faceplate: 1-1/4 inches x 4-7/8 inches Flat with Square corners
• Latchbolt Projection: 1/2 inches to 5/8 inches
• Preload: Opens under 25 lbs of preload
• Voltage: Field selectable for 12/24 VDC
• Current Draw: .44A at 12 VDC, .46A at 16 VDC
• Case: 1-13/32 inches x 3-3/8 inches x 1-1/16 inches deep
• Strike Opening: 5/8 inches adjustable x 1-7/16 inches x 1/2 inches deep
• Strike Lip: Proper length for 1-3/4 inches thick door
