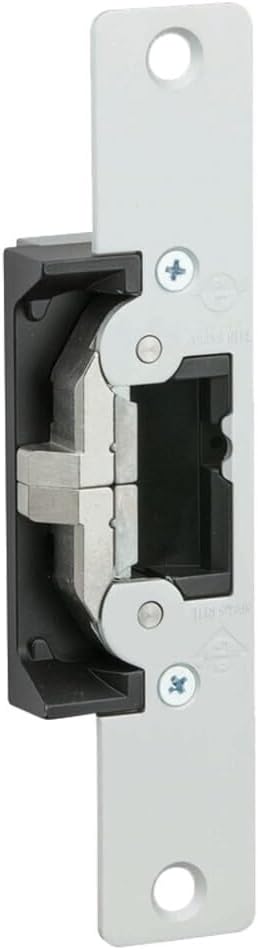

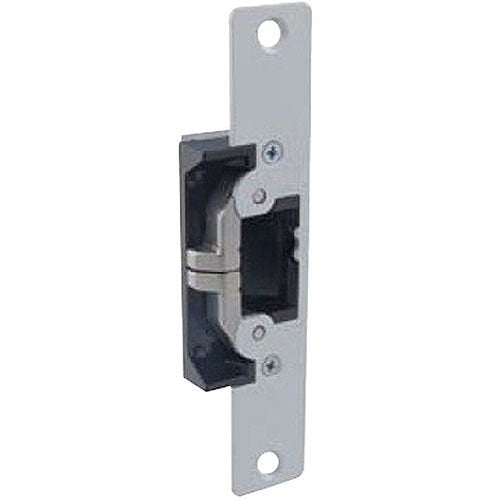

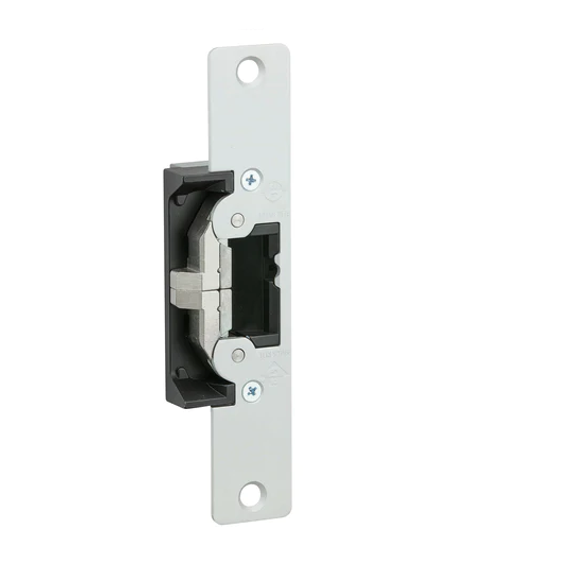

Adams Rite 7430-628 UltraLine AR Deadlatch Or Cylindrical Latch Electric Strike

Product Description

The Adams Rite 7430-628 UltraLine electric strike is suitable for use with Adams Rite deadlatches or cylindrical locksets that feature a latchbolt projection between half an inch and five-eighths of an inch. This electric strike is designed to provide reliable access control with an ultra-compact profile and features adjustable stainless steel keepers allowing for secure installation. It delivers a holding force of over one thousand five hundred pounds in fail secure mode and can release with a door preload of up to twenty-five pounds.

• Keyless entry system
• Compatible with different latchbolt projections
• Field selectable fail safe or fail secure

Product Highlights

The electric strike enhances security and provides flexibility in installations.

Product Information

Standard Information

• Brand: Adams Rite ASSA ABLOY
• Product Line: UltraLine

Technical Specifications

• Style: Modern
• Lockset Type: For Cylindrical or Deadlatch Locks
• Face Plate Length: 1-1/4 inches x 6-7/8 inches
• Latchbolt Projection: 1/2 inch to 5/8 inch
• Voltage: Selectable 12/24 VDC
• Holding Strength: 1500 lbs
• Mounting: For Centerline Installations
• Case Size: 1-13/32 inches x 3-3/8 inches x 1-1/16 inches deep
