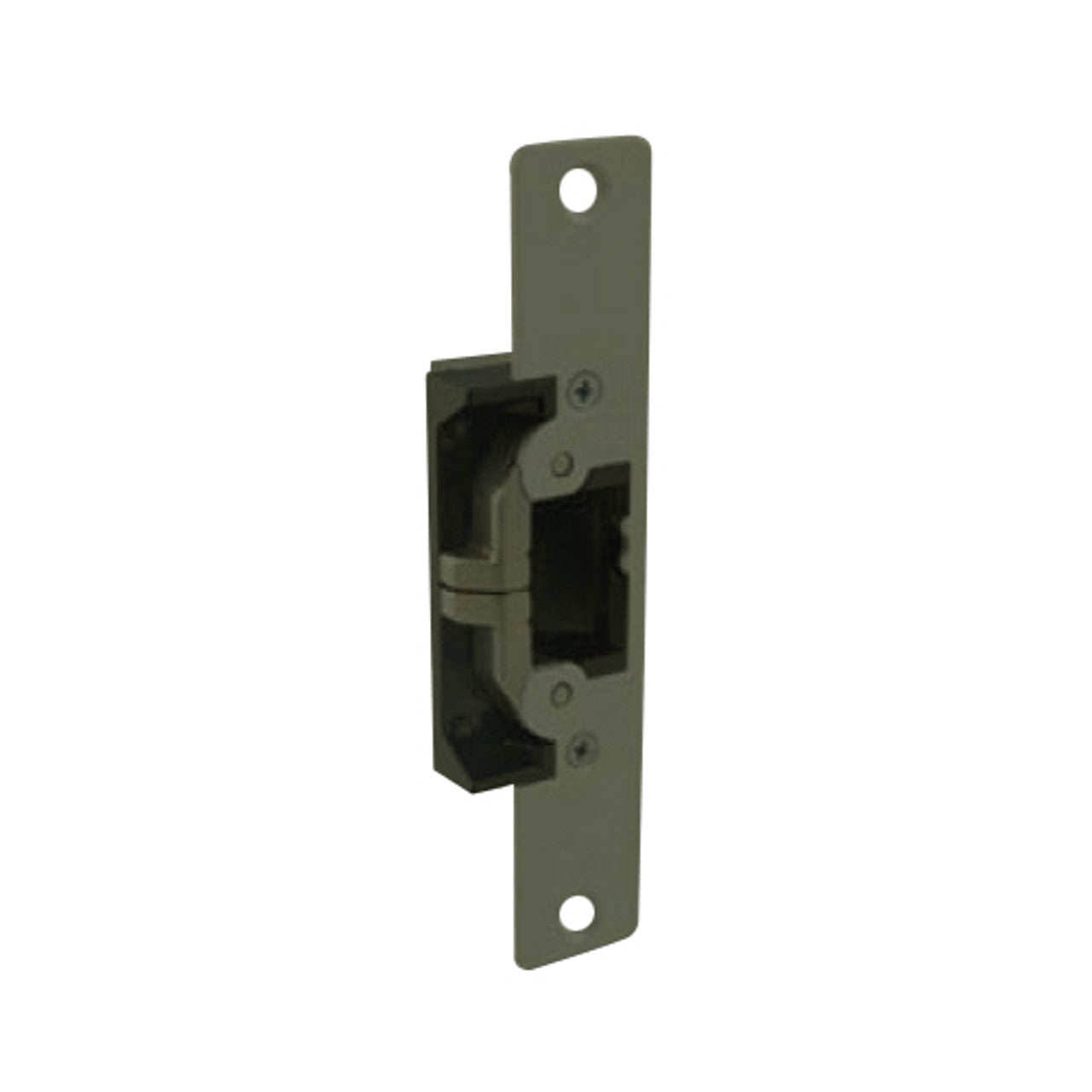

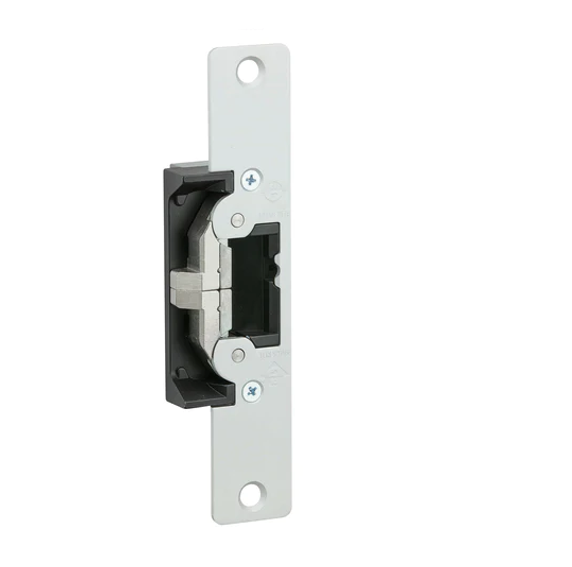

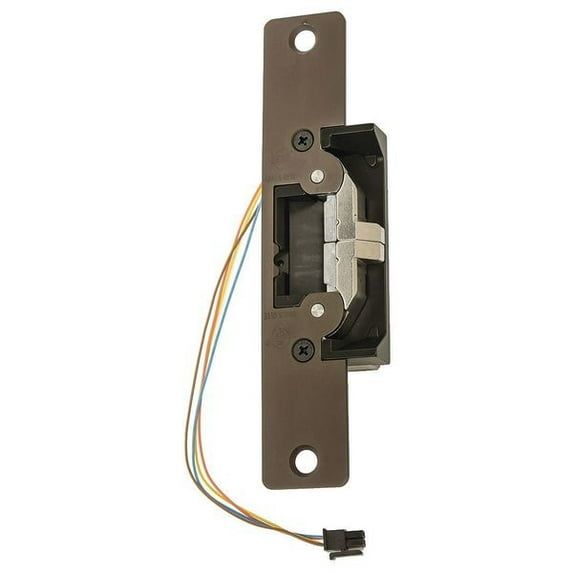

ADAMS RITE 7430-313 UltraLine AR Deadlatch Or Cylindrical Latch Electric Strike

Product Description

The ADAMS RITE 7430-313 UltraLine AR Deadlatch Or Cylindrical Latch Electric Strike works with Adams Rite deadlatches or cylindrical locksets having latchbolt projections between half inch and five eighths inch. This electric strike model allows for remote unlocking of narrow stile aluminum doors without requiring physical operation of the latch itself.

• Compatible with cylindrical or deadlatch locks
• Selectable voltage options: twelve or twenty-four volts
• Durable aluminum and steel construction

Product Highlights

This electric strike is engineered for ease of use and reliability in high-traffic environments.

Product Information

Standard Information

• Manufacturer: Adams Rite ASSA ABLOY
• MPN: 7430-313

Technical Specifications

• Material: Aluminum, Metal, Steel
• Face Plate Length: 1-1/4 inches x 6-7/8 inches
• Lockset Type: For Cylindrical or Deadlatch Locks
• Latchbolt Projection: 1/2 inches to 5/8 inches
• Voltage: 12 or 24 volts in DC or AC mode
• Current Draw: 0.44A at 12 VDC, 0.23A at 24 VDC
• Fail Safe | Fail Secure: Field selectable
• Dimensions: Case size approximately 1 inch x 3-3/8 inches x 1-1/16 inches
