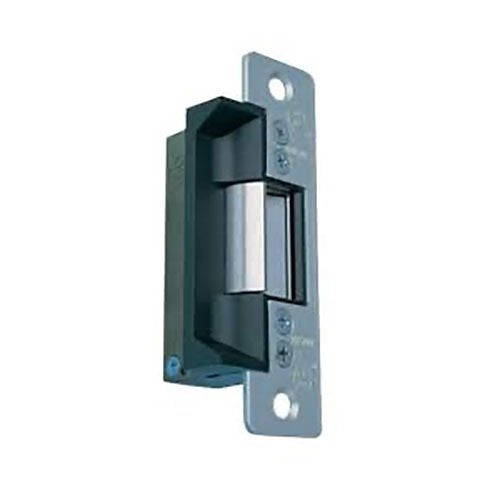

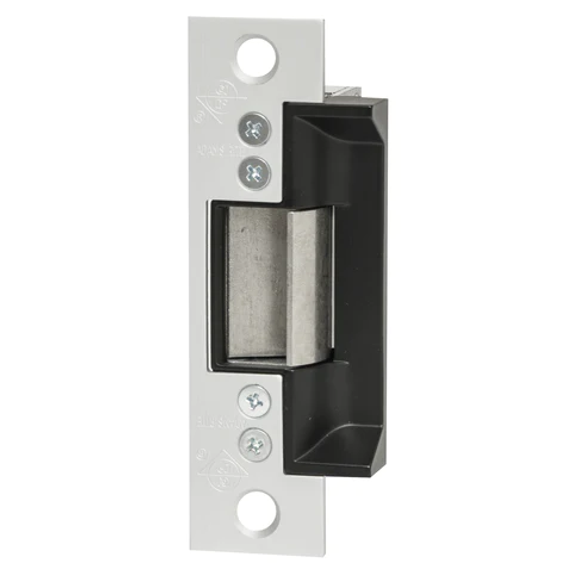

ADAMS RITE 7140-340-628 Electric Strike 12VAC 3 inches Length

Product Description

The ADAMS RITE 7140-340-628 electric strike is designed for hollow metal and wood jambs. This unit provides remote electrical control for doors fitted with Adams Rite deadlatches or cylindrical locksets that have a latch bolt projection from one half inch to five eighths inch. It operates at twelve volts AC and features a fail-secure design.

• Compatible with Adams Rite deadlatches or cylindrical locksets.
• Suitable for aluminum, hollow metal, and wood applications.
• Remote electrical control functionality.

Product Highlights

This electric strike is ideal for various door types and environments. It is designed to enhance security while providing easy access control.

Product Information

Standard Information

• Brand: Adams Rite by ASSA ABLOY
• Manufacturer: Adams Rite

Technical Specifications

• Item model number: 7140-340-628-00
• Product Type: Electric Strike
• Compatible Door Lock Type: Cylindrical
• Material: Aluminum, Stainless Steel
• Security Configuration: Fail Secure
• Height: 4.88 inches
• Width: 1.25 inches
• Input Voltage: 12V AC
• Limited Warranty: 3 Year
• Environmental Certification: UL
• Environmentally Friendly: Yes
• Series: 7100
• Face Plate Length: 1-1/4 inches x 4-7/8 inches
• Lip Extension: 1-1/16 inches or Less
• Lockset Type: For Cylindrical or Deadlatch Locks
• Faceplate: 1-1/4 inches x 4-7/8 inches Flat with Square corners
• Latchbolt Projection: 1/2 inch to 5/8 inch
• Current Draw: 0.33 A at 12 VDC - 1.42 A at 12 VAC
• Case: 1 inch x 3-3/8 inches x 1-5/8 inches deep
• Strike Opening: 5/8 inch x 1-7/16 inches x 1/2 inch deep
• Strike Lip: Basic strike for 1-3/4 inch thick door
• Applications: Aluminum, hollow metal, or wood applications
