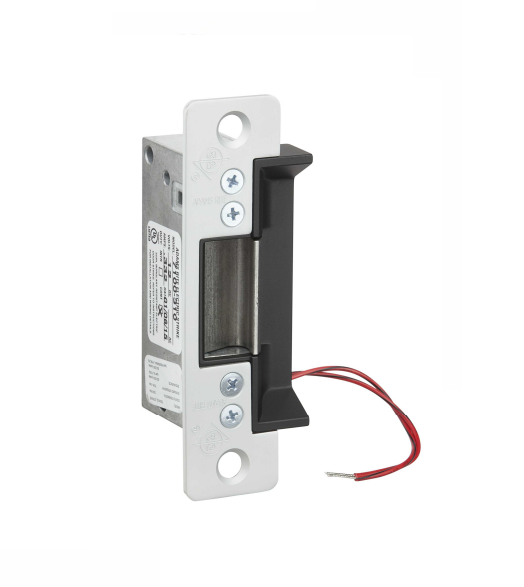

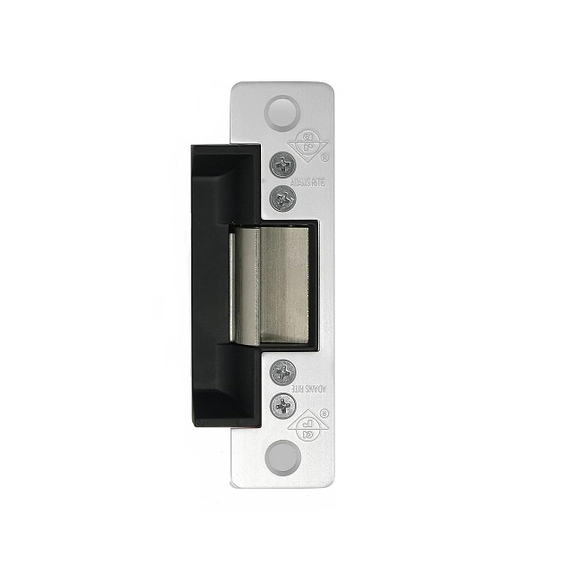

Adams Rite 7100-440-628-00 7100 Series Electric Strike 16 VAC

Product Description

The ADAMS RITE 7100-440-628-00 electric strike is designed for use with deadlatches or cylindrical locksets with 1/2" to 5/8" latch bolt projection. It provides remote electrical control for doors equipped with Adams Rite 4500, 4700, or 4900 deadlatches or cylindrical locksets. Electrical actuation unlocks the keeper, releasing the latch bolt for keyless entry.

• Designed for use with Adams Rite deadlatches or cylindrical locksets with 1/2" to 5/8" latch bolt projection.
• Suitable for aluminum, hollow metal, or wood applications.
• Field convertible from Fail-Safe to Fail-Secure.

Product Highlights

This electric strike offers electrical actuation, unlocking the keeper and releasing the latch bolt, and is field convertible between fail-safe and fail-secure modes.

Product Information

Standard Information

• Brand: ADAMS RITE
• Manufacturer Part Number: 7100-440-628-00
• Country of Origin: United States

Technical Specifications

• Manufacturer: Adams Rite
• Item model number: 7100-440-628-00
• Voltage: Available in 12 or 24 volt AC and DC
• Faceplate: Measures 1-1/4" x 4-7/8". 7100 has a flat faceplate
• Strike Opening: 5/8" x 1-7/16" x 1/2" deep
• Case: Approximately 1" x 3-3/8" x 1-5/8" deep
• MPN: 7100-440-628-00
• ANSI Grade: GRADE 1
• Finish: US28 SATIN ANODIZED ALUMINUM
• Frame Material: ALUMINUM
• Locking State: FAIL-SECURE (POWER TO UNLOCK)
• Product Type: CYLINDRICAL OR NARROW STILE MORTISE LATCH
• Max Latch Length - Inch: MAXIMUM 5/8 INCH THROW
• Mounting: FOR CENTERLINE INSTALLATIONS
• Sales Category: ELECTRIC STRIKE
• UL: UL BURGLARY RESISTANCE
• Voltage and Duty INT: 16 VOLT AC INTERMITTENT DUTY
• UNSPSC Code: 31162407
• Series: 7100
• Face Plate Length: 1-1/4" x 4-7/8"
• Lip Extension: 1-1/16" or Less
• Lockset type: For Cylindrical or Deadlatch Locks
• Current Draw: 0.33 A at 12 VDC - 1.42 A at 12 VAC 0.22 A at 16 VDC - 0.63 A at 16 VAC 0.1 7A at 24 VDC - 0.74 A at 24 VAC
• Strike Lip: Basic strike has lip of proper length for 1-3/4" [44.5 mm] thick door that closes flush with jamb edge
• Country of Origin: United States
