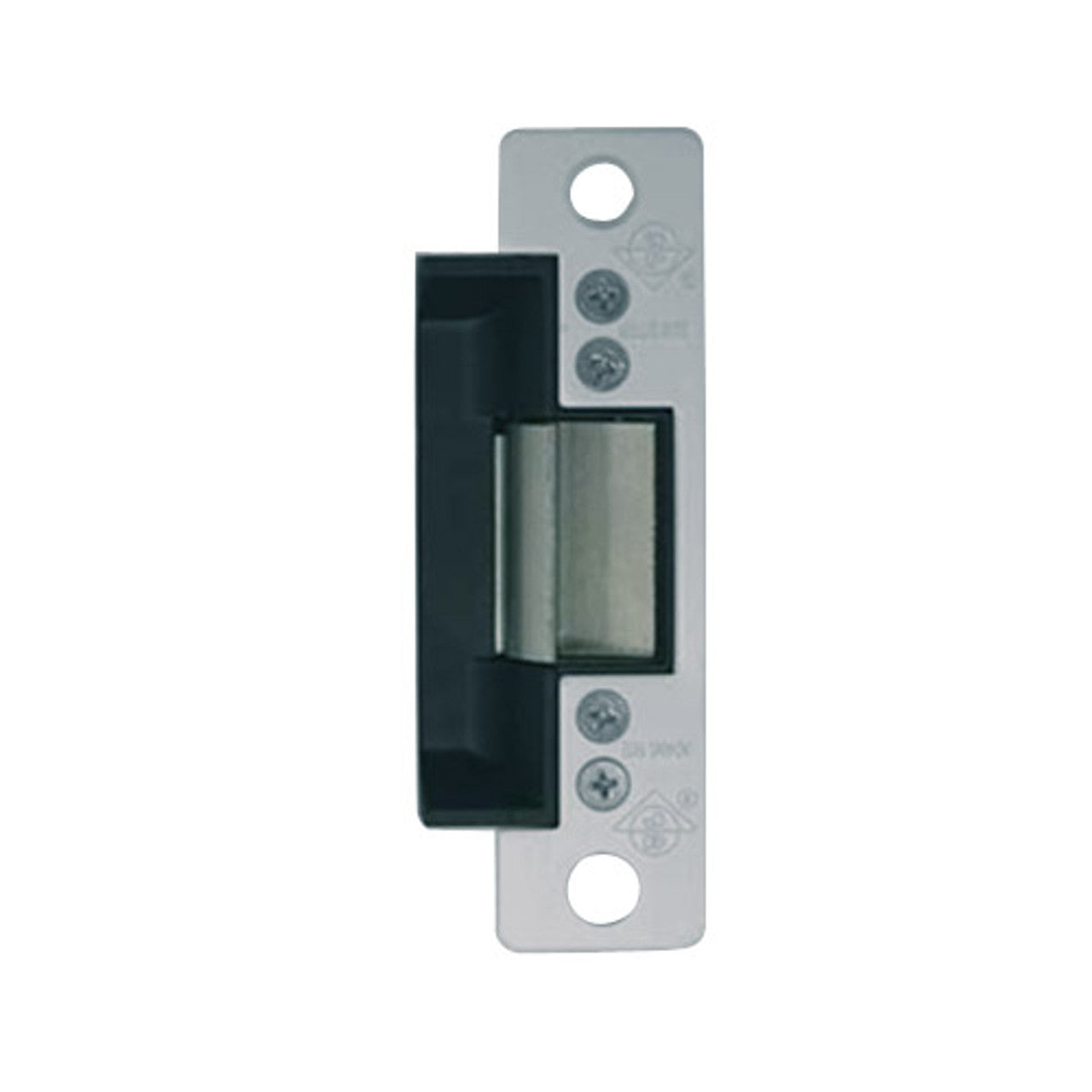

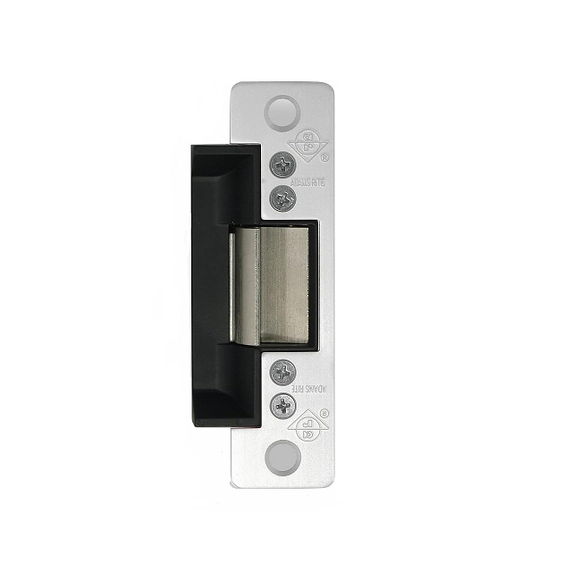

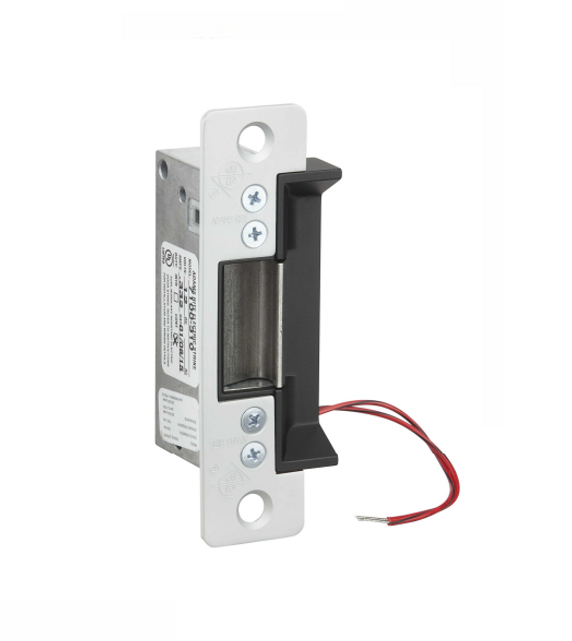

ADAMS RITE 7100-340-628 ELECTRIC STRIKE 12VAC FAIL SECURE

Product Description

The Adams Rite 7100-340-628 electric strike is compatible with Adams Rite deadlatches or cylindrical locksets that have a latchbolt projection of one half inch to five eighths inch. This model allows for remote electrical control of doors that have Adams Rite 4500, 4700, or 4900 Series Deadlatch or cylindrical locksets. When activated, the electric strike unlocks the strike jaw and releases the latchbolt.

• Fail secure mode
• Aluminum construction
• Listed for burglary resistance by UL 1034

Product Highlights

This electric strike is designed for effective security applications, ensuring safe and reliable access control.

Product Information

Standard Information

• Voltage: 12VAC
• Series: 7100

Technical Specifications

• Mode: Fail Secure
• Face Plate Length: One and one fourth inch by four and seven eighths inch
• Lockset Type: For cylindrical or deadlatch locks
• Latchbolt Projection: One half inch to five eighths inch
• Current Draw: 0.33 A at 12 VDC; 1.42 A at 12 VAC; 0.22 A at 16 VDC; 0.63 A at 16 VAC; 0.17 A at 24 VDC; 0.74 A at 24 VAC
• Case Dimensions: One inch by three and three eighths inch by one and five eighths inch deep
• Strike Opening: Five eighths inch by one and seven sixteenth inch by one half inch deep
• Strike Lip: For doors that are one and three fourths inch thick
• Material: Metal
• Part Number: 7100-340-628-00
• Item Model Number: 7100-340-628-00
• Item Package Quantity: 1
