Adams Rite 4612-1 Power Transfer Device 105 Degree Swing

Product Description

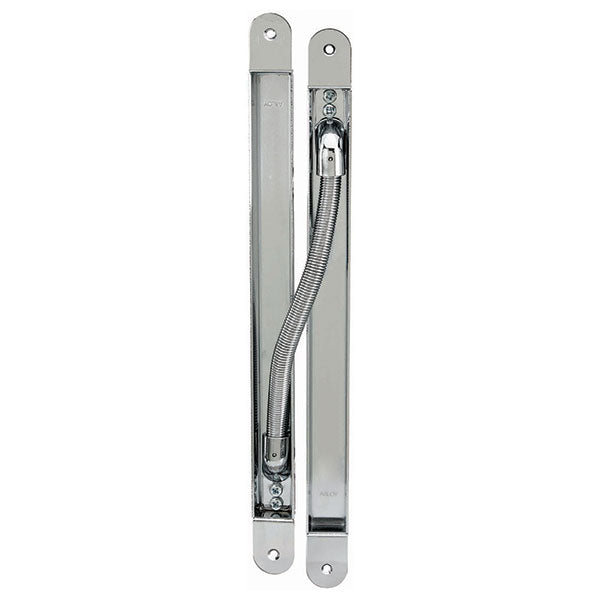

The Adams Rite 4612-1 is a power transfer device that channels low-voltage wiring from a door frame into the door to power electric strikes, locks, and exit bars. The device uses a stamped steel housing with a spring steel helix to pass multiple wires, mounts concealed when the door is closed, and is suitable for doors hung with butt-type hinges or continuous hinges and pivots offset 3/4 inch or less.

• 105 degree swing short version with stamped steel housing approximately 1/16 inch (1.6 mm) thick and chrome finish
• Spring steel helix with approximately 5/16 inch internal diameter to accept multiple low-voltage wires; wiring concealed when door is closed
• Includes fasteners for aluminum, hollow metal, or wood applications; suitable for butt-type hinges (not compatible with center-pivot doors)

Product Highlights

Channels low-voltage wiring through butt-hinged doors; stamped steel housing; 105 degree swing; includes installation fasteners

Product Information

Standard Information

• Brand: ADAMS RITE
• Manufacturer Part Number: 4612-1
• Country of Origin: United States

Technical Specifications

• Brand: Adams Rite
• Model / MPN: 4612-1
• Product Type: Power transfer device
• Swing Angle: 105 degree (short version); 180 degree (long version)
• Material: Stamped steel (housing); spring steel (helix)
• Material Thickness: Approximately 1/16 inch (1.6 mm)
• Finish: Chrome
• Length (105 degree short version): Approximately 11.12 inches (281.5 mm)
• Length (180 degree long version): Approximately 20.24 inches (514 mm)
• Spring Helix Internal Diameter: Approximately 5/16 inch (7.9 mm)
• Concealment: Completely hidden when door is closed
• Suitable For: Doors hung with butt-type hinges, including continuous hinges or pivots offset 3/4 inch (19.1 mm) or less
• Not Compatible With: Center-pivot doors
• Security Feature: Case Knife Guard (steel barrier fence for out-swinging doors)
• Conduit: Spring steel helix to accommodate multiple low-voltage wires
• Certifications: UL listed; fire-rated
• Weight: 1 pound
• Manufacturer: Adams Rite
• Compatible Materials: Aluminum, hollow steel, wood
• Installation: Commercial
