Adams Rite 4600-02-512-32D heavy-duty designer deadlatch handle 1-3/4 to 1-7/8 inch

Product Description

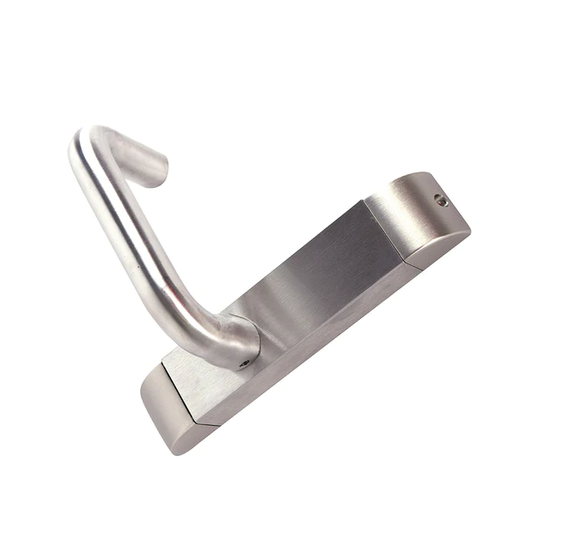

The Adams Rite 4600-02-512-32D is a heavy-duty designer deadlatch handle for commercial and institutional doors. It is a stainless steel lever deadlatch with push-button control, furnished as a single unit and compatible with Adams Rite 4300, 4500, and 4900 series deadlatches. The handle fits standard door thicknesses from 1-3/4 to 1-7/8 inches and ships handed but can be reconfigured in the field for left or right swing.

• Stainless steel construction with satin finish; designed for commercial storefronts and institutional doors
• Push-button control method; compatible with 4300, 4500, and 4900 series deadlatches
• Fits 1-3/4 to 1-7/8 inch door thickness; includes 1/4 inch square heat-treated spindle and cam plug with fasteners

Product Highlights

Commercial-grade lever deadlatch handle, push-button control, field-reconfigurable handing, compatible with multiple Adams Rite deadlatch series.

Product Information

Standard Information

• Brand: ADAMS RITE
• Manufacturer Part Number: 4600-02-512-32D

Technical Specifications

• Brand: Adams Rite
• Manufacturer: Adams Rite ASSA ABLOY
• MPN: 4600-02-512-32D
• Model Number: 4600-02-512-32D
• Series: 4600
• Lock Type: Deadlatch
• Control Method: Push Button
• Material: Stainless steel
• Finish: Satin
• Weight: 1 lb
• Door Thickness: 1.75 inch to 1.875 inch (fits 1-3/4" to 1-7/8")
• Spindle: 1/4 inch square heat-treated spindle
• Handing: Shipped handed; reconfigurable in field for left or right swing (except MV and MN types)
• Compatibility: For use with Adams Rite 4300, 4500, and 4900 series deadlatches; retrofit for 2190/2290 interconnected deadbolt/deadlatch
• Package Contents: Single deadlatch handle unit; packaged with cam plug (as needed), fasteners, and specified optional equipment
• Recommended Uses: Offices, schools, public buildings
• Unit Count: 1
