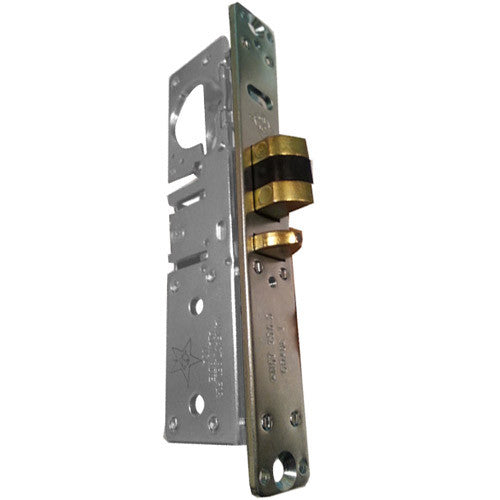

ADAMS RITE 4510-36-101-628 Mortise Lock 8.875 inches Length Replacement MPN

Product Description

The ADAMS RITE 4510-36-101-628 mortise lock measures eight point eight seven five inches in length. It is suitable for narrow stile doors and features a bolt holdback for secure locking. The deadlatch has a throw length of one half inch and meets ANSI/BHMA Type 8321 standards, ensuring reliable performance and security. This mortise lock is classified as Grade 1, denoting its high durability and strength, and belongs to the trusted 4510 series.

• Narrow stile door compatibility
• Integrated bolt holdback feature
• ANSI/BHMA Type 8321 compliant

Product Highlights

This lock is ideal for securing narrow stile doors where strength and reliability are essential.

Product Information

Standard Information

• Item Model Number: 4510-36-101-628
• Material: Steel

Technical Specifications

• Style: Modern
• Hand: RH or LHR
• Item Type: Deadlatch
• Grade: 1
• Finish: Satin Aluminum
• Series: 4510
• Backset: One and one eighth inches
• Throw Length: One half inch
• Strike Length: Four and two thirds inches
• Front Size Dimension: One inch by six and seven eighths inches
