Adamax Inc 221-415/K000-0012 Lever Wire Connector 10PK

Product Description

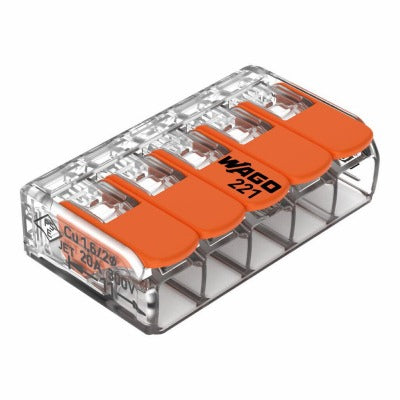

The ADAMAX INC 221-415/K000-0012 is a 5-position lever-actuated wire connector designed for fast, tool-free termination of low-voltage conductors. To use, pull the lever up, insert the conductor, and push the lever back down. The mechanism accepts conductor sizes from 24 to 12 AWG and is compatible with solid, stranded, and fine-stranded wire types. Electricians and device installers use this connector to reduce termination time on runs that involve multiple conductors or higher power consumption devices. Each package contains 10 connectors. This unit is suited for panel wiring, device hookups, and extended cable runs where secure, repeatable connections are required.

The 221-415/K000-0012 is appropriate for low-voltage control wiring in residential and light commercial applications. Common use cases include HVAC control wiring, building automation device connections, and general electrical panel terminations where a range of conductor types and gauges must be accommodated on the same circuit. The lever mechanism allows conductors to be inserted and removed without damaging wire strands, which is particularly useful during commissioning and troubleshooting. A mounting carrier for panel installation is available and conforms to applicable standards.

Key Features

• Lever-actuated mechanism allows tool-free conductor insertion and removal
• Accepts 24 to 12 AWG solid, stranded, and fine-stranded conductors
• 5-position design terminates multiple conductors at a single connection point
• Supports long cable runs with larger conductor cross sections
• Compatible with mounting carriers for organized panel installation
• Sold in a 10-pack for multi-connection installations

Compatibility

Designed as an OEM-style lever connector for low-voltage wiring applications accepting 24 to 12 AWG solid, stranded, and fine-stranded conductors. No specific equipment model compatibility was provided in the product data.

Installation Notes

Installation should be performed by a licensed electrician in accordance with applicable NEC requirements. De-energize the circuit before inserting or removing conductors from the connector. Pull the lever fully upright before inserting the conductor to ensure proper seating, then close the lever completely to lock the connection. Do not exceed the rated conductor size range of 24 to 12 AWG, as oversized conductors can damage the lever mechanism.
