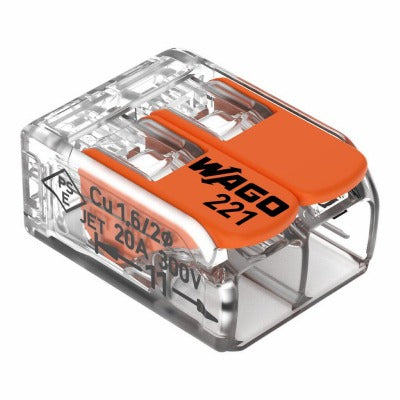

Adamax Inc 221-412/K007-0000 2-wire Lever Connector 10 Pack

Product Description

The ADAMAX INC 221-412/K007-0000 is a 2-wire lever-actuated wire connector sold in a 10-pack, designed for fast, tool-free termination of low-voltage conductors in control wiring applications. To use, pull the lever up, insert the conductor, and push the lever back down to lock the connection. The connector accepts conductor sizes from 24 to 12 AWG and is compatible with solid, stranded, and fine-stranded wire types. Electricians and low-voltage installers use these connectors to speed up field terminations and device wiring without the need for crimp tools or screwdrivers.

This connector is suited for residential and commercial low-voltage control wiring, including HVAC thermostat circuits, security systems, lighting controls, and similar 24-volt class wiring. The lever mechanism is particularly useful when terminating longer cable runs with larger conductor cross sections, reducing installation time significantly on multi-device jobs. The connector is also applicable in device manufacturing environments where repeatable, reliable terminations are required at volume.

Key Features

• Tool-free lever actuation: lift lever, insert wire, press lever down to terminate
• Accepts 24 to 12 AWG conductors in solid, stranded, and fine-stranded configurations
• 2-wire configuration for straightforward point-to-point connections
• Compatible with mounting carrier for panel or DIN-rail installation conforming to applicable standards
• Reduces termination time for installers and device manufacturers
• Suitable for longer cable runs with larger conductor cross sections

Compatibility

Designed as a general-purpose 2-wire lever connector for low-voltage control and signal wiring applications accepting 24 to 12 AWG solid, stranded, or fine-stranded conductors.

Installation Notes

Installation is typically performed by licensed electricians or low-voltage technicians. De-energize all circuits before making or breaking any wire connections. Verify conductor gauge is within the 24 to 12 AWG range before inserting into the connector. Follow applicable NEC requirements for low-voltage control wiring, including proper strain relief and conductor preparation such as stripping length.
