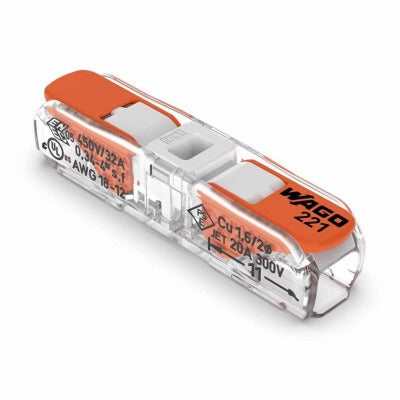

Adamax Inc 221-2401/K000-0006 Inline Lever Connector

Product Description

The ADAMAX INC 221-2401/K000-0006 is a lever-actuated inline wire connector sold in a 10-pack. It accepts solid, stranded, and fine-stranded conductors ranging from 20 to 12 AWG. To make a connection, pull the lever up, insert the conductor, and push the lever back down. No tools are required for either connection or disconnection. The lever mechanism speeds up termination work on control wiring, low-voltage circuits, and general electrical splicing tasks. Electricians and HVAC technicians use these connectors wherever a reliable, reusable inline splice is needed without relying on wire nuts or crimping tools.

These inline connectors are suited for residential and light commercial electrical work, control panel wiring, HVAC low-voltage circuits, and similar applications where quick, repeatable terminations are required. The connectors support both fixed-position installation and multi-pole installation when used with a compatible adapter, giving installers flexibility in panel layouts and junction enclosures. The 10-pack format is practical for service calls and small-to-medium installation jobs where multiple splices are needed.

Key Features

• Lever-actuated tool-free connection and disconnection for fast terminations
• Accepts 20 to 12 AWG solid, stranded, and fine-stranded conductors
• Compatible with fixed-position and multi-pole installation via adapter
• Reusable design allows conductor removal and reinsertion without damage
• Sold as a 10-pack for efficient use on multi-splice jobs

Compatibility

Designed for use with solid, stranded, and fine-stranded conductors from 20 to 12 AWG. Suitable as a general-purpose inline splice connector in low-voltage and standard residential wiring applications.

Installation Notes

Installation is performed by licensed electricians or qualified HVAC technicians in accordance with NEC guidelines for the circuit type. Power down and lock out the circuit before making or breaking any connections. No stripping tool or crimping tool is required, but conductors should be cleanly cut to ensure full insertion into the lever terminal. Verify conductor gauge falls within the 20 to 12 AWG rated range before terminating.
