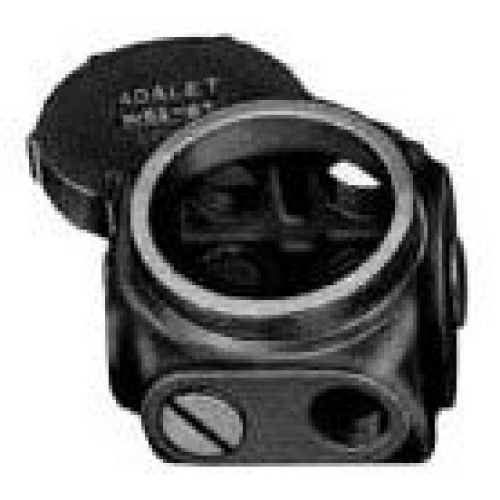

Adalet X82 Multi-Hub General Purpose Junction Box (1/2 in and 3/4 in NPT Entries)

Product Description

The Adalet X82 is a multi-hub general purpose junction box with 1/2 in and 3/4 in NPT entries designed for routing, splicing, and mounting conductors in hazardous locations. It provides eight hubs with multiple entry locations, measures 4-3/16 in x 4-3/16 in x 3-1/8 in, and is rated NEMA 7/9 with UL 886 and CSA C22.2 approvals for Class I Group D and Class II Groups E, F, G.

• Eight hubs: (2) 3/4 in and (6) 1/2 in NPT entries with hub locations at top, bottom, side, and back
• Explosionproof NEMA 7/9 enclosure; certified to UL 886 and CSA C22.2 for Class I Group D and Class II Groups E, F, G
• Cast aluminum construction with coated finish; overall dimensions 4-3/16 in (W) x 4-3/16 in (H) x 3-1/8 in (D)

Product Highlights

Eight-entry explosionproof junction box, NEMA 7/9 rated, UL and CSA certified

Product Information

Standard Information

• Brand: ADALET
• Manufacturer Part Number: X82
