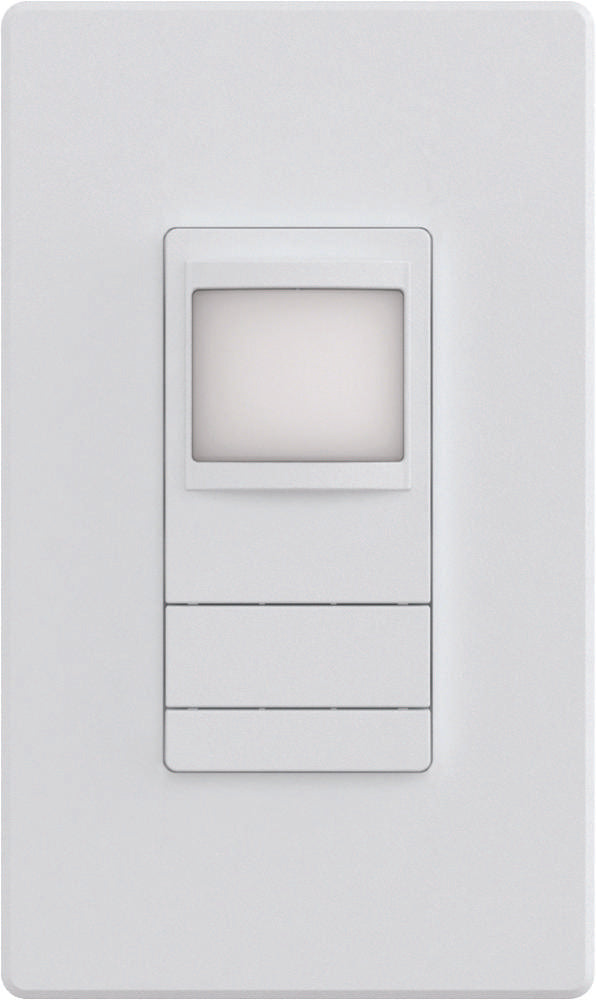

Acuity Brands WSXAWH Sensor-SW Wall Switch Sensor, 120 to 277 VAC, Single Gang Box Mounting

Product Description

The Acuity Brands WSXAWH is a wall switch occupancy sensor designed to operate with a voltage range of 120 to 277 VAC. It is intended for use with a single gang box and functions effectively in environments with temperatures between 32 to 140 degrees Fahrenheit. This sensor features dimensions of two point seven four inches in height, one point six eight inches in width, and one point six three inches in depth.

• Integrated photocell prevents unwanted light activation during daylight.
• Compatible with multiple types of lighting including LEDs and CFLs.
• 100% passive detection with no risk of interference from other systems.

Product Highlights

The WSXAWH offers reliable occupancy sensing capabilities for various settings such as healthcare, education, and retail environments.

Product Information

Standard Information

• Manufacturer: Acuity Brands
• Model Number: WSXAWH

Technical Specifications

• Application: Suitable for behavioral health, hospitality, offices, and retail.
• Color: White
• Dimensions: 2.74 inches H x 1.68 inches W x 1.63 inches D
• Mounting Type: Single Gang Box
• Series: WSXA
• Standards/Approvals: CA Title 20, CSA
• Temperature Rating: 32 to 140 degrees Fahrenheit
• Voltage Rating: 120 to 277 VAC
