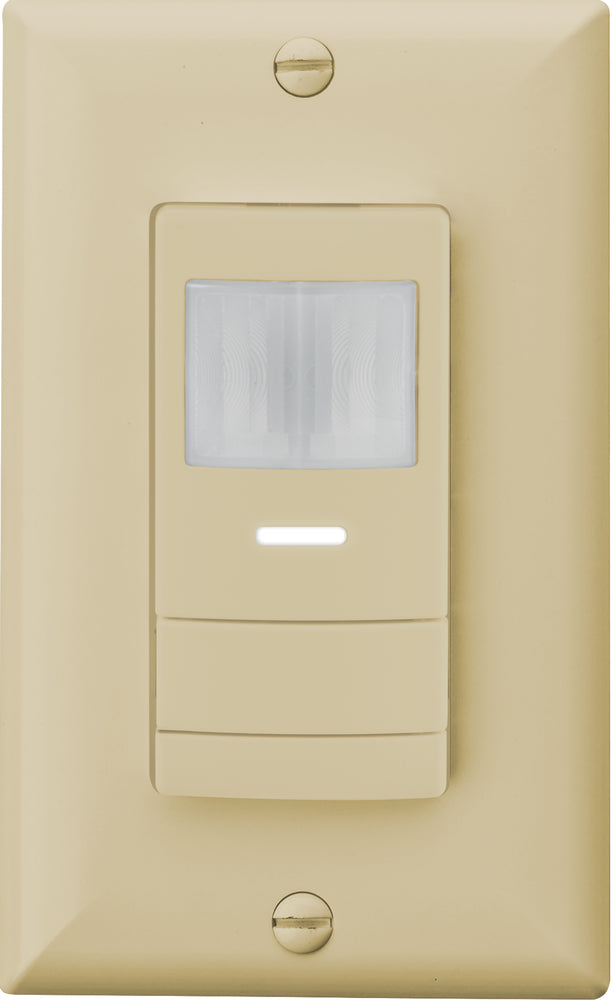

Acuity Brands WSX-IV Wall Switch Sensor - Passive Infrared - Universal Neutral/Ground Wiring - Ivory

Product Description

The Acuity Brands WSX-IV Wall Switch Sensor offers an effective solution for occupancy detection and lighting control. This passive infrared sensor is designed for wall mounting and can cover an area up to twenty feet. The sensor features universal neutral and ground wiring options, making it compatible with existing electrical setups.

• Passive infrared sensor with twenty feet coverage
• Interchangeable line power and load wires
• Meets NEC 2011 section 404.2C requirements

Product Highlights

The WSX-IV sensor is ideal for various indoor applications such as private offices, restrooms, and other small spaces. It accommodates different lamp types including fluorescent, incandescent, and LED while functioning efficiently in temperatures ranging from zero to sixty degrees Celsius.

Product Information

Standard Information

• Manufacturer: Acuity Brands
• Power Rating: 800/1200 W

Technical Specifications

• Sensor Type: Passive Infrared
• Coverage: 20 ft
• Mounting Type: Wall
• Dimensions: 2.74 in H x 1.68 in W x 1.63 in D
• Viewing Angle: 180 deg
• Response Frequency: 50/60 Hz
• Material: Plastic
• Temperature Rating: 0 to 60 deg C
• Standards/Approvals: cULus Listed
