Description

Product Description

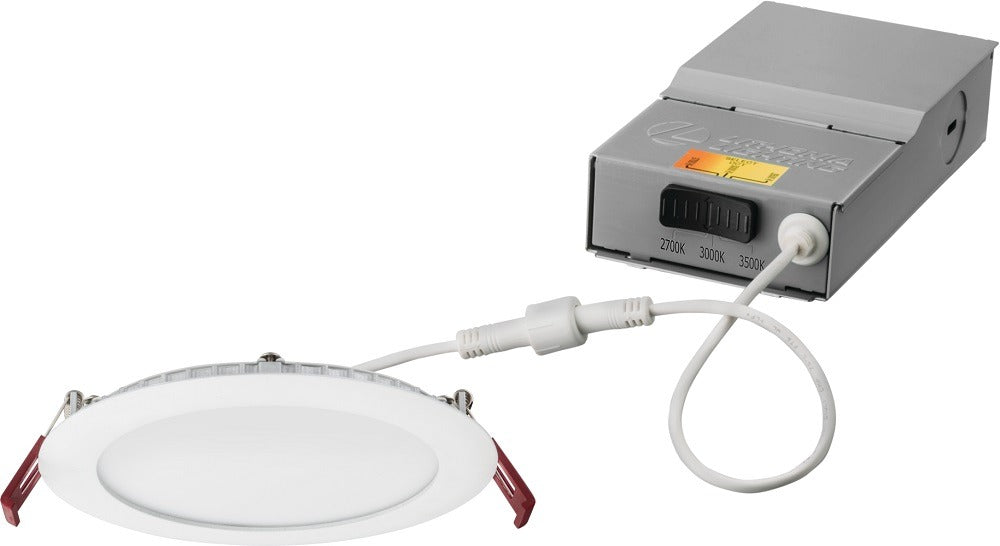

Acuity Brands WF6LED27K30K35K90CRIMWM6 is a wafer-thin recessed LED downlight featuring edge-lit technology and a remote isolated driver for 120 to 277 VAC operation. The 14 W module provides switchable color temperatures (2700/3000/3500 K) at 90 CRI with lumen outputs of 1040/1150/1110. It fits a 6 in ceiling opening, uses a polycarbonate lens and die-cast aluminum housing, and is suitable for shallow plenums.

  • Edge-lit LED module, 14 W, with lumen outputs of 1040/1150/1110 at 75.9/85.8/79.9 lm/W
  • Switchable 2700/3000/3500 K color temperatures and 90 CRI; dimmable for 120–277 VAC systems
  • Remote isolated driver in a steel box with FT4 plenum-rated connector, 12 cu-in wiring compartment, and four 7/8 in knockouts

Product Highlights

14 W edge-lit wafer thin recessed downlight; switchable 2700/3000/3500 K; 90 CRI; 6 in cutout; remote driver for 120–277 VAC

Product Information

Standard Information

  • Brand: ACUITY BRANDS
  • Manufacturer Part Number: WF6LED27K30K35K90CRIMWM6
Technical Specifications
Brand
Acuity Brands
Manufacturer Part Number
WF6LED27K30K35K90CRIMWM6
Series
WF6
Type
Dimmable round wafer thin recessed downlight
Input Voltage
120 to 277 VAC
Input Current
0.12 A (typical at 120 VAC)
Power Consumption
14 W
Dimmable
Yes
Ceiling Opening
6 in cutout
Color Temperature
2700/3000/3500 K (switchable)
Color Rendering Index (CRI)
90
Lumens
1040 / 1150 / 1110
Efficacy
75.9 / 85.8 / 79.9 lm/W
Lighting Technology
Edge-Lit LED
Lamp Type
LED module
Lens Material
Polycarbonate
Housing Material
Die-cast aluminum
Mounting Type
Ceiling recessed
Driver Type
Remote isolated driver in steel remote box (remote driver houses wiring and knockouts)
Driver Features
Narrow remote driver enabling installation in shallow plenum with as little as 2 in clearance; FT4 plenum-rated cable connector; 12 cu-in wiring compartment; (4) 7/8 in knockouts
Standards/Approvals
CSA Certified for Wet Location; ENERGY STAR Certified; NOM Certified; Air Tight Certified; ASTM E283-2004; California Title 24 Part 6 Compliant
Applications
Education, Hospitality, Religious, Retail, Residential, Commercial, Multifamily
