Description

Product Description

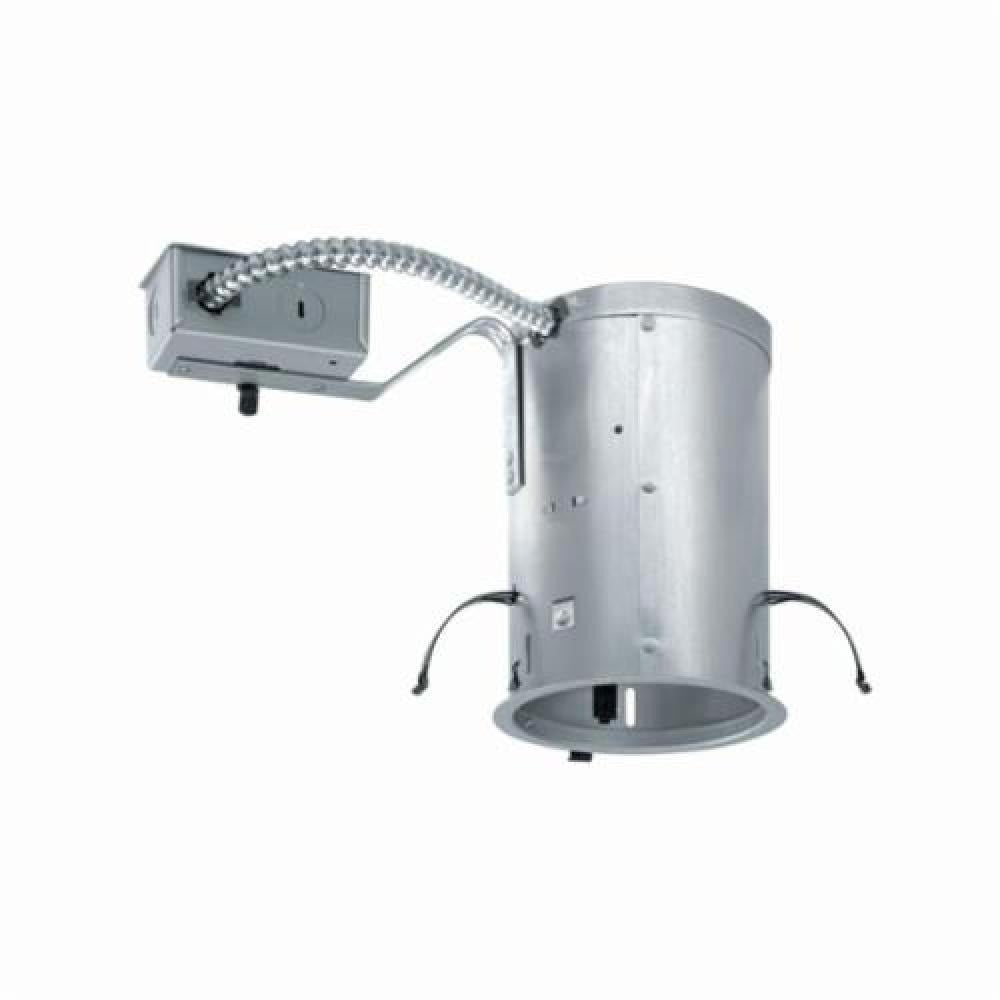

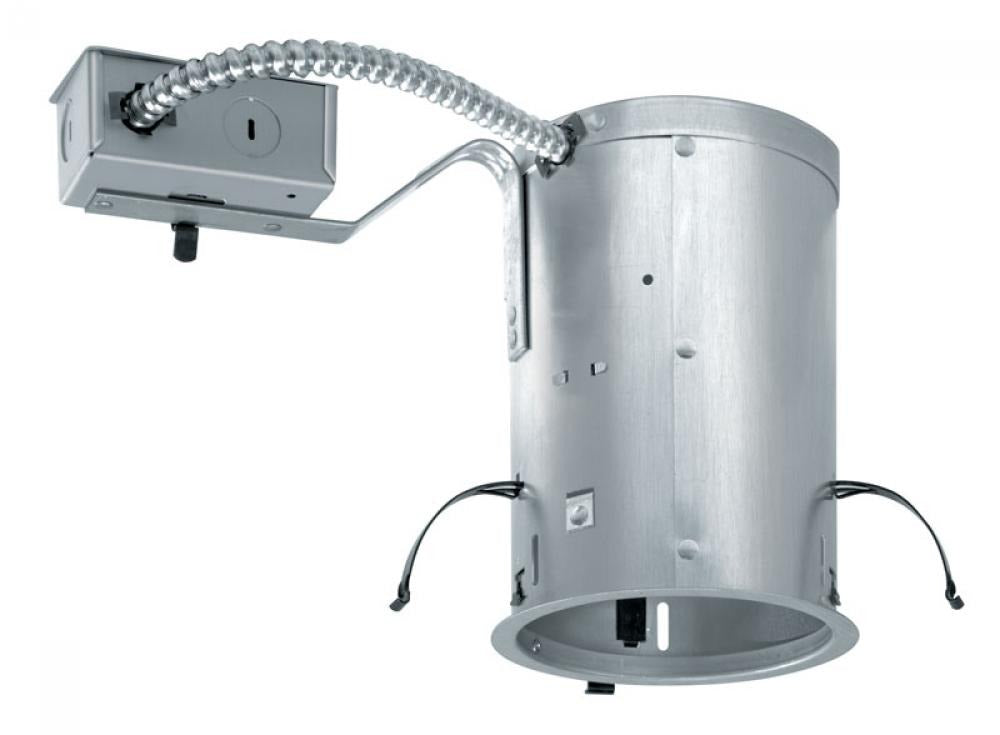

Acuity Brands TC20R is a 5 in remodel non-IC recessed housing for incandescent lamps up to 85 W, designed for installations where the backside of the ceiling is not accessible. The aluminum ceiling-mount housing operates at 120 VAC and is intended for use with 5 in trim in recessed residential, damp and wet locations. The housing is thermally protected and UL/cUL/CSA certified for through branch wiring.

  • Non-IC remodel housing; requires insulation pulled back at least 3 in from housing; secures with factory-installed remodel springs
  • 120 VAC operation for one incandescent lamp up to 85 W; medium base porcelain socket with nickel plated copper screw shell; compatible with A19, BR30, PAR20, PAR30, PAR30L, R20
  • Aluminum construction with pre-wired junction box (five 1/2 in knockouts, four non-metallic sheathed cable connectors, ground); UL Listed and CSA Certified; suitable for damp and wet locations

Product Highlights

5 in remodel non-IC recessed housing for incandescent lamps up to 85 W, 120 VAC, aluminum construction, fits 5 in trim, UL/cUL/CSA certified; requires 3 in insulation clearance.

Product Information

Standard Information

  • Brand: ACUITY BRANDS
  • Manufacturer Part Number: TC20R
  • Country of Origin: USA/Canada
Technical Specifications
Brand
Acuity Brands
Model / MPN
TC20R
Type
Remodel universal recessed housing
Lamp type
Incandescent
Max lamp wattage
85 W
Voltage rating
120 VAC
Ceiling opening
5-1/2 in
Trim compatible size
5 in
Diameter
5 in
Depth
12-1/2 in
Height
7-1/2 in
Width
5-7/8 in
Housing material
Aluminum
Mounting type
Recessed ceiling
Number of lamps
1
Lamp base / socket
Medium base porcelain socket with nickel plated copper screw shell
Insulation type
Non-IC (insulation must be pulled back at least 3 in from housing)
Dimming protocol
Forward phase / triac compatible (incandescent lamps are dimmable with standard line-voltage dimmers) [Low confidence for reverse-phase claim]
Compatible lamp types
A19, BR30, PAR20, PAR30, PAR30L, R20
Pre-wired junction box
Yes (5 x 1/2 in knockouts, 4 non-metallic sheathed cable connectors, ground)
Thermal protection
Thermally protected for improper lamp or insulation use
Application
Recessed residential; damp and wet locations
Certifications
UL Listed, cUL, CSA Certified
Series
TC Series
