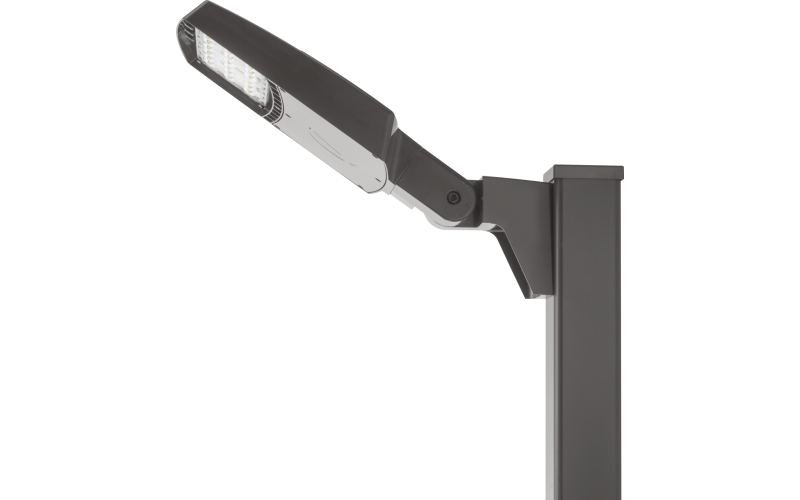

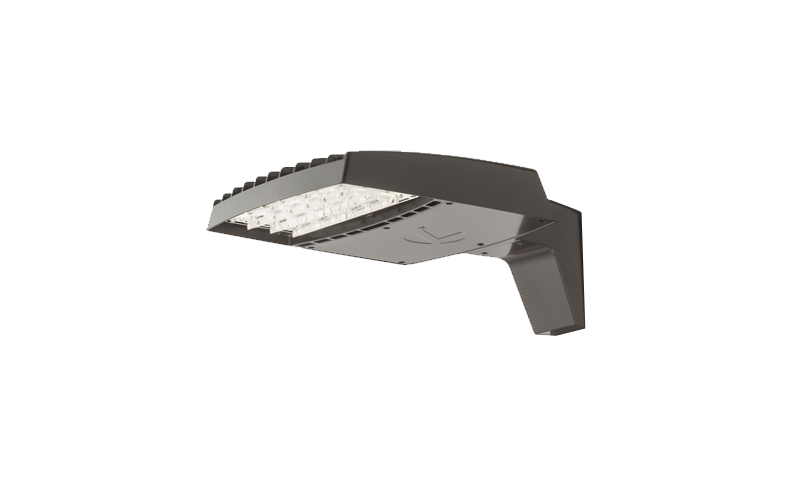

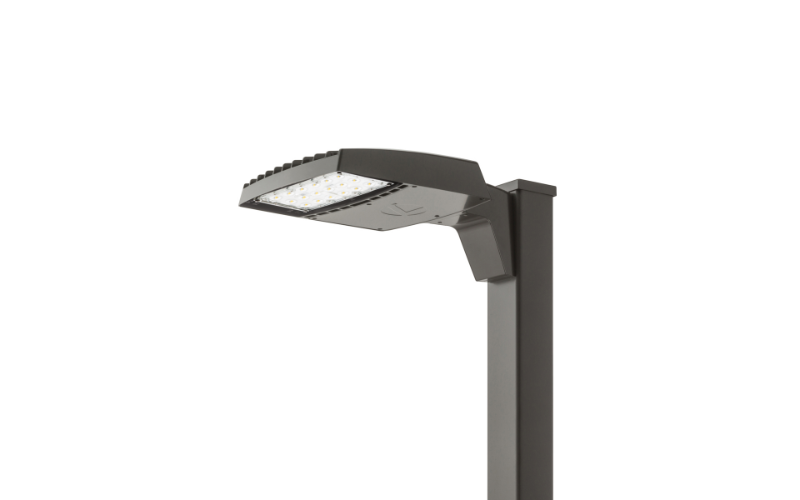

Acuity Brands RSX1 LED P3 40K R4 MVOLT WBA RSX1 Design Select LED Area Luminaire Type 4 Wide

Product Description

The Acuity Brands RSX1 LED P3 40K R4 MVOLT WBA is an RSX1 Design Select LED Area Luminaire designed for superior illumination in various outdoor applications. This luminaire offers a Type 4 Wide distribution and operates on 120V-277V, providing a 4000K color temperature. It is engineered to replace 70W to 400W metal halide luminaires, achieving significant energy savings of up to 75%. With an IP66 rating and corrosion resistance, it ensures durability in challenging environments.

• Replaces 70W to 400W metal halide luminaires, saving up to 75% on energy.
• Features nLight® AIR wireless controls for enhanced user experience and energy efficiency.
• Designed with an IP66 rating and corrosion resistance for durable outdoor performance.

Product Highlights

Superior LED area illumination with energy savings and robust design.

Product Information

Standard Information

• Brand: ACUITY BRANDS
• Manufacturer Part Number: RSX1 LED P3 40K R4 MVOLT WBA
• Country of Origin: USA

Technical Specifications

• Series: RSX1 LED
• Performance Package: P3
• Color Temperature: 4000K
• Light Distribution: Type 4 Wide
• Input Voltage: 120V-277V
• Mounting Type: Wall bracket
• Light Source: LED
• Color Rendering Index (CRI): 70
• Power Consumption (Approx): 72 W, 109 W, 133 W
• Luminous Flux (Approx): 10374 Lm, 14779 Lm, 17242 Lm
• Optics: Direct, Type II, Type III, Type IV, Type V, Adjustable
• Dimming: Dim to 3-10%, 0-10V
• Controls/Network: nLight®, Integral Sensor
• Lumen Maintenance: 100000 h
• Certifications: CSA, DLC*
• Environmental Rating: IP66, Corrosion Resistant
• Available Finishes: Dark Bronze, Black, Natural Aluminum, White
