Acuity Brands Rebl Alo16 Uvolt Sww3 80cri Dwh M2 Led High Bay

Product Description

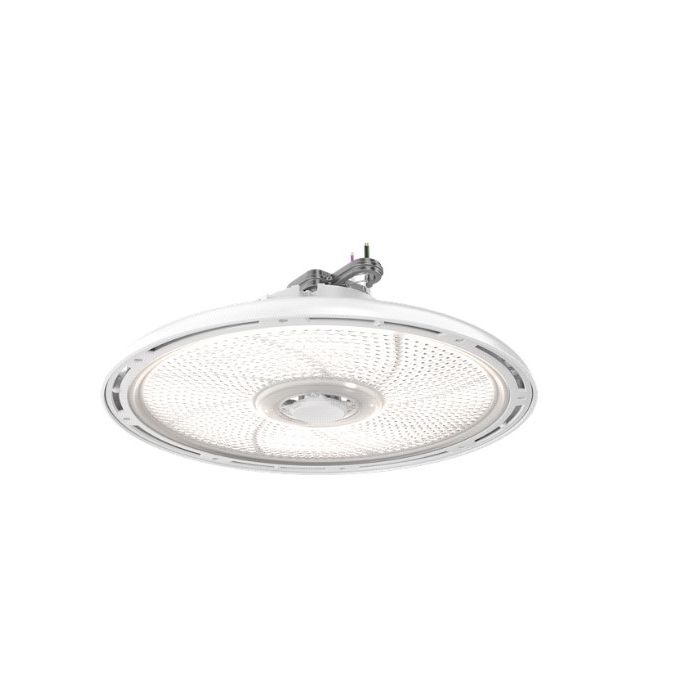

The ACUITY BRANDS rebl alo16 uvolt sww3 80cri dwh m2 is a round LED high bay fixture from the REBL series by Lithonia Lighting, designed for demanding commercial and industrial overhead lighting applications. It delivers selectable lumen output across three levels — 24,000 LM, 27,000 LM, and 30,000 LM — paired with a selectable color temperature spanning 3500 K, 4000 K, and 5000 K, giving installers flexibility at the time of commissioning. The fixture operates across a wide universal voltage range of 120 to 347 volts and carries an 80 CRI rating. Micro-prism optics distribute light uniformly to reduce glare and support strong UGR performance. The unit ships in a gloss white diecast housing suitable for rugged environments.

This fixture is suited for new construction and retrofit installations in commercial, industrial, and warehouse facilities requiring high-output overhead illumination. Pendant and suspended mounting configurations make it practical for high-ceiling spaces such as distribution centers, manufacturing floors, gymnasiums, and large retail environments. The selectable CCT and lumen output allow a single SKU to serve multiple project specifications, reducing inventory complexity for electrical contractors and lighting professionals.

Key Features

• Selectable lumen output: 24,000 LM, 27,000 LM, or 30,000 LM from a single fixture
• Selectable CCT: 3500 K, 4000 K, and 5000 K field-adjustable at install
• Universal voltage operation: 120 to 347 volts — no voltage-specific ordering required
• 80 CRI for accurate color rendering in work environments
• Micro-prism optics for uniform, low-glare illumination and improved UGR performance
• Gloss white diecast housing built for rugged installation environments
• Pendant and suspended mounting support for high-ceiling applications

Compatibility

Designed as an OEM-style LED high bay replacement or new-installation fixture for commercial and industrial overhead lighting systems requiring universal voltage input between 120 and 347 volts.

Installation Notes

Installation should be performed by a licensed electrician in accordance with the NEC and applicable local codes. De-energize the circuit at the breaker panel and verify absence of voltage before making any wiring connections. Confirm that the mounting structure is rated to support the fixture weight before suspending. Select the desired lumen output and CCT settings per project specifications before securing the fixture in its final position, as access to adjustment switches may be limited after installation.

Technical Specifications

• Series: REBL
• Lamp Type: LED
• Lighting Technology: LED Static
• Lumen Output: Selectable — 24,000 LM, 27,000 LM, 30,000 LM
• Color Temperature (CCT): Selectable — 3500 K, 4000 K, 5000 K
• Color Rendering Index (CRI): 80 CRI
• Voltage Rating: 120 to 347 volts (UVOLT)
• Housing Finish: Gloss White
• Mounting Type: Pendant, Suspended
• Fixture Type: High Bay, LED

Standard Information

• Brand: ACUITY BRANDS
• Manufacturer Part Number: rebl alo16 uvolt sww3 80cri dwh m2
