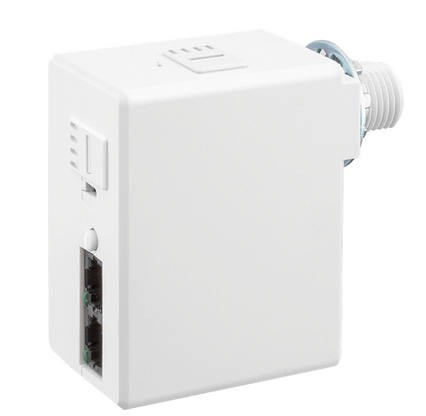

Acuity Brands NPP16 D EFP PA Acuity nLight Power and Bypass Relay Pack 120/277V

Product Description

The Acuity Brands NPP16 D EFP PA is an nLight Power and Bypass Relay Pack, specifically the SensorSwitch 16A Emergency Bypass Relay with External Fault Protection (EFP). This unit enables fire alarm interface lighting control for generator or central inverter supplied lighting up to 10A. It provides auxiliary power for emergency lighting control units and is capable of switching loads via an internal latching relay and system bus power. It features a universal input of 120/277V.

• Communicates with nLight Network and supplies 15VDC, 40mA of bus power via two RJ-45 ports (80mA total).
• Self-contained relay switches line voltage load and meets NEMA410 ratings for LED/electronic ballast inrush.
• Features a universal input of 120/277V and 1/2" knockout mounting, plenum rated (UL 2043).

Product Highlights

This nLight Power and Bypass Relay Pack offers emergency lighting control with external fault protection, universal voltage input, and nLight network communication.

Product Information

Standard Information

• Brand: ACUITY BRANDS
• Manufacturer Part Number: NPP16 D EFP PA

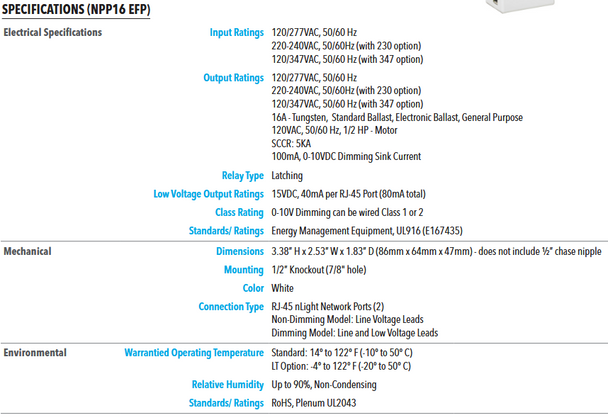

Technical Specifications

• Input Voltage: 120-277V (Universal)
• Bus Power Output: 15VDC, 40mA via 2 RJ-45 ports (80mA total)
• Lighting Load Capacity: 10A
• Mounting Type: 1/2” Knockout (7/8" hole)
• Fixture Type: Fluorescent, LED
• Rating: Plenum Rated (UL 2043)
• Operating Temperature: 14º to 122º F
• Relay Type: 16A Emergency Bypass Relay
• External Fault Protection: Yes
