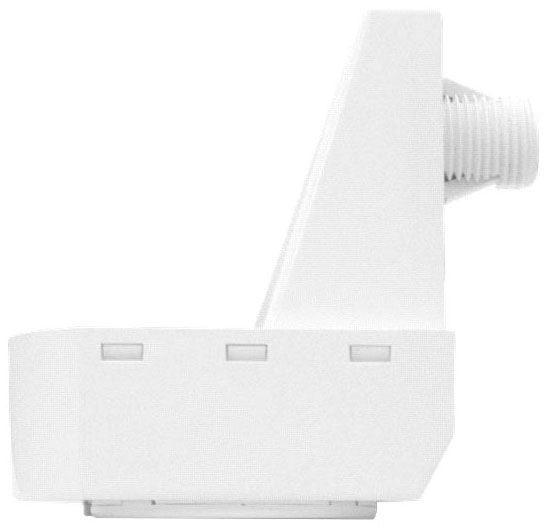

Acuity Brands LSXR650 Lihtonia Sensor 120 to 277 VAC LSXR 650

Product Description

The Acuity Brands LSXR650 Lihtonia Sensor is designed for occupancy detection in indoor settings. This PIR sensor operates within a voltage range of one hundred twenty to two hundred seventy-seven VAC and provides a radial coverage of three hundred sixty degrees.

• Operates between 120 to 277 VAC
• Features passive infrared technology for occupancy detection
• Includes four interchangeable lenses to customize coverage

Product Highlights

Ideal for various applications such as auditoriums, libraries, and warehouses, this sensor ensures efficient energy usage by facilitating automated lighting control.

Product Information

Standard Information

• Manufacturer: Acuity Brands
• Model Number: LSXR650

Technical Specifications

• Application: Auditorium, Entertainment/Theatrical, Foyer, Gymnasium, Hospital, Library, Loading Dock, Manufacturing, Retail and Warehouse/Storage
• Color: White
• Connection Type: 2-Phase Line
• Coverage: 360 degrees
• Dimensions: 3-3/4 inches H x 2-1/2 inches W x 4 inches D
• Enclosure: IP66
• Includes: High Bay 360 degrees and Aisleway Lenses
• Lamp Type: Fluorescent
• Power Rating: 1/4 hp
• Sensor Type: PIR
• Series: LSXR
• Standards/Approvals: CSAus Certified | cULus Listed
• Temperature Rating: -10 to 60 degrees C
• Time Delay: 10 minutes
• Type: Indoor
• Viewing Angle: 360 degrees
• Voltage Rating: 120 to 277 VAC
