Acuity Brands L7XRR6 L7XR-R6 Lithonia 6 IC/ Non-IC Housing For Standard 2 X 8 Construction

Product Description

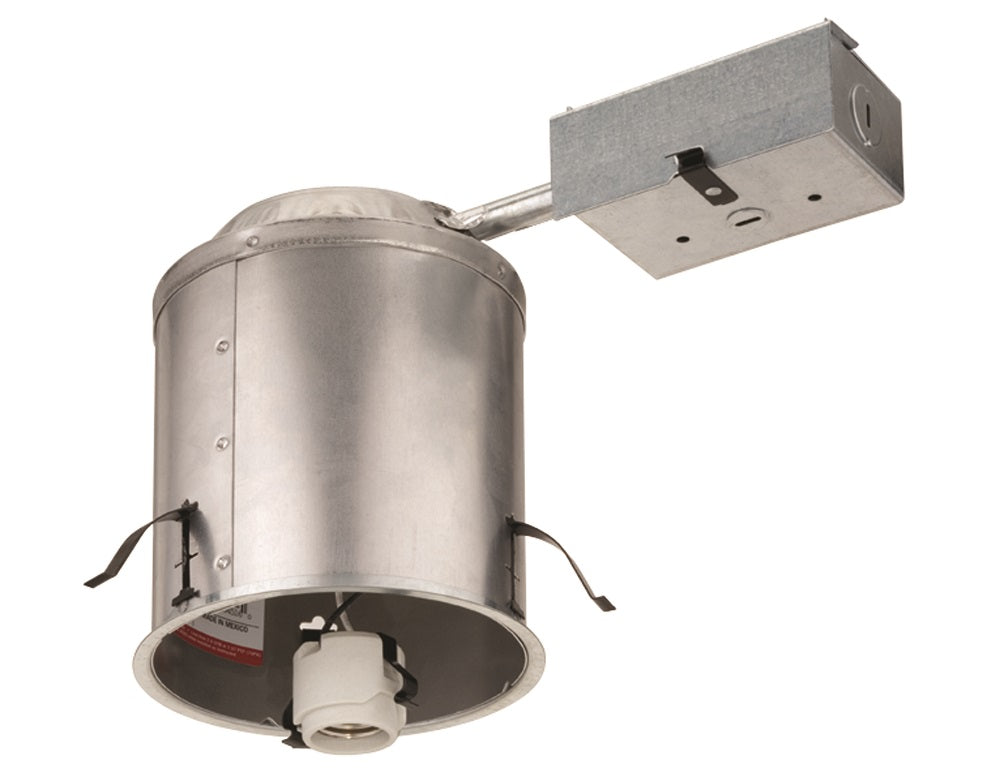

Acuity Brands offers the L7XRR6 downlight housing. This unit is suitable for various applications, including hospitality, residential, and retail. It features a ceiling opening of six and seven-eighths inches and runs on 120 VAC. The L7XRR6 is compatible with E26 incandescent lamps rated at twenty-six to forty-two watts. The steel housing material ensures durability.

• Airtight housing for energy efficiency
• For remodel construction and IC/Non-IC insulation
• Designed for flush mounting with clip adjustment

Product Highlights

This housing is designed for recessed installations with adjustable brackets and meets cULus safety standards.

Product Information

Standard Information

• Product Name: L7XR-R6 Lithonia 6 IC/ Non-IC Housing
• Manufacturer: Acuity Brands

Technical Specifications

• Application: Hospitality, Residential, Retail
• Ceiling Opening: Six and seven-eighths inches
• Height: Twenty-two and one-fourth inches
• Width: Eleven inches
• Depth: Thirteen inches
• Housing Material: Steel
• Lamp Type: E26 Incandescent
• Lamp Wattage: Twenty-six to forty-two watts
• Voltage Rating: 120 VAC
• Suitable For Use With: REALITY ENERGY STAR (ESL) LED Modules
• Standards/Approvals: cULus Listed
