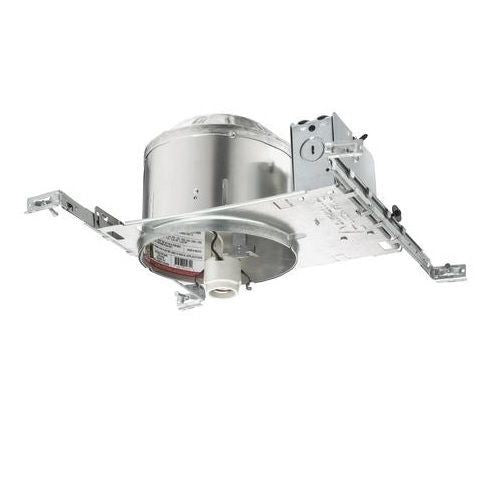

Acuity Brands L7XP R6 Shallow Recessed Lighting Housing 120 VAC 6-7/8 in Ceiling Opening

Product Description

The ACUITY BRANDS L7XP R6 is a shallow recessed lighting housing designed for incandescent lamps, operating at 120 VAC. This housing is UL and cUL Listed, suitable for residential applications, and features an aluminum construction. It is approved for all ceiling and wiring types, including direct burial in insulation, and has a 6-7/8 inch ceiling opening.

• Recessed housing rated IC/non-IC, approved for all ceiling and wiring types
• Galvanized bar hangers span up to 24 in o.c. and feature integral T-bar locks
• Durable medium base porcelain socket with nickel plated copper alloy screw shell and contact

Product Highlights

Approved for direct burial in insulation and features thermal protection against improper lamp usage.

Product Information

Standard Information

• Brand: ACUITY BRANDS
• Manufacturer Part Number: L7XP R6
• Country of Origin: Mexico

Technical Specifications

• Height: 11-1/4 in
• Material: Aluminum
• Lamp Type: Incandescent
• Mounting: Ceiling
• Number of Lamps: 1
• Input Voltage: 120 VAC
• Width: 15-1/2 in
• Certifications: UL Listed, cUL Listed
• Diameter: 6 in
• Ceiling Opening: 6-7/8 in
• Application: For residential applications
• Type: Shallow IC
• Suitable For Use With: P Series Open and Baffle Wide Flange LED Module/LED Gimbal Module/E Series Baffle Wide Flange LED Module
• Series: L7XP
• Finish: Unfinished
• Item Type: Housing
• Length: 22 Inch
