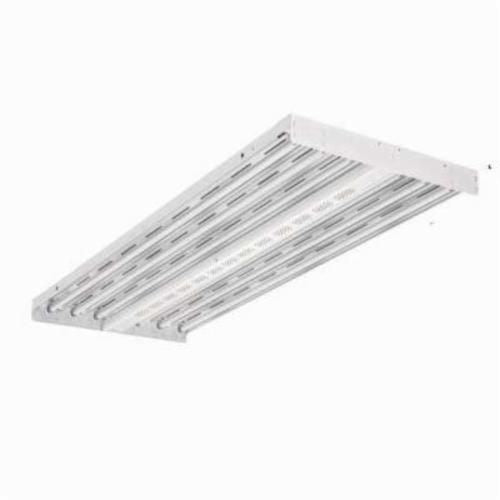

Acuity Brands IBZ-454LGEB10PS90 Lithonia Lighting General Purpose High Bay 120 to 277 VAC F54T5HO/841

Product Description

The Acuity Brands IBZ-454LGEB10PS90 is a high bay lighting fixture designed for industrial applications. It operates on a voltage of 120 to 277 VAC and supports a fluorescent/T5SHO lamp type.

• Includes four lamps with medium bi-pin base.
• Features electronic program rapid start ballast for efficient operation.
• Constructed from steel with a high gloss baked white enamel finish.

Product Highlights

This fixture is suitable for various settings such as manufacturing, warehousing, and retail facilities. Its narrow distribution design provides focused lighting ideal for aisle and task lighting.

Product Information

Standard Information

• Manufacturer: Acuity Brands
• Manufacturer Part Number: IBZ 454L GEB10PS90

Technical Specifications

• Application: Gymnasium, Manufacturing, Warehousing/Storage, Commercial and Industrial Facilities
• Ballast Type: Electronic Program Rapid Start
• Dimensions: 48-1/6 inches L x 13-1/4 inches W x 2-3/8 inches D
• Housing Finish: High Gloss Baked White Enamel
• Housing Material: Steel
• Includes: F54T5HO/841 Lamp
• Lamp Base Type: Medium Bi-Pin
• Lamp Type: Fluorescent/T5SHO
• Lamp Wattage: 54 W
• Mounting Type: Pendant/Suspended
• Number of Lamps: 4
• Series: IBZ
• Standards/Approvals: cULus Listed, UL 1598, CSA 250.0-08 Certified
• Type: Narrow Distribution
• Voltage Rating: 120 to 277 VAC
