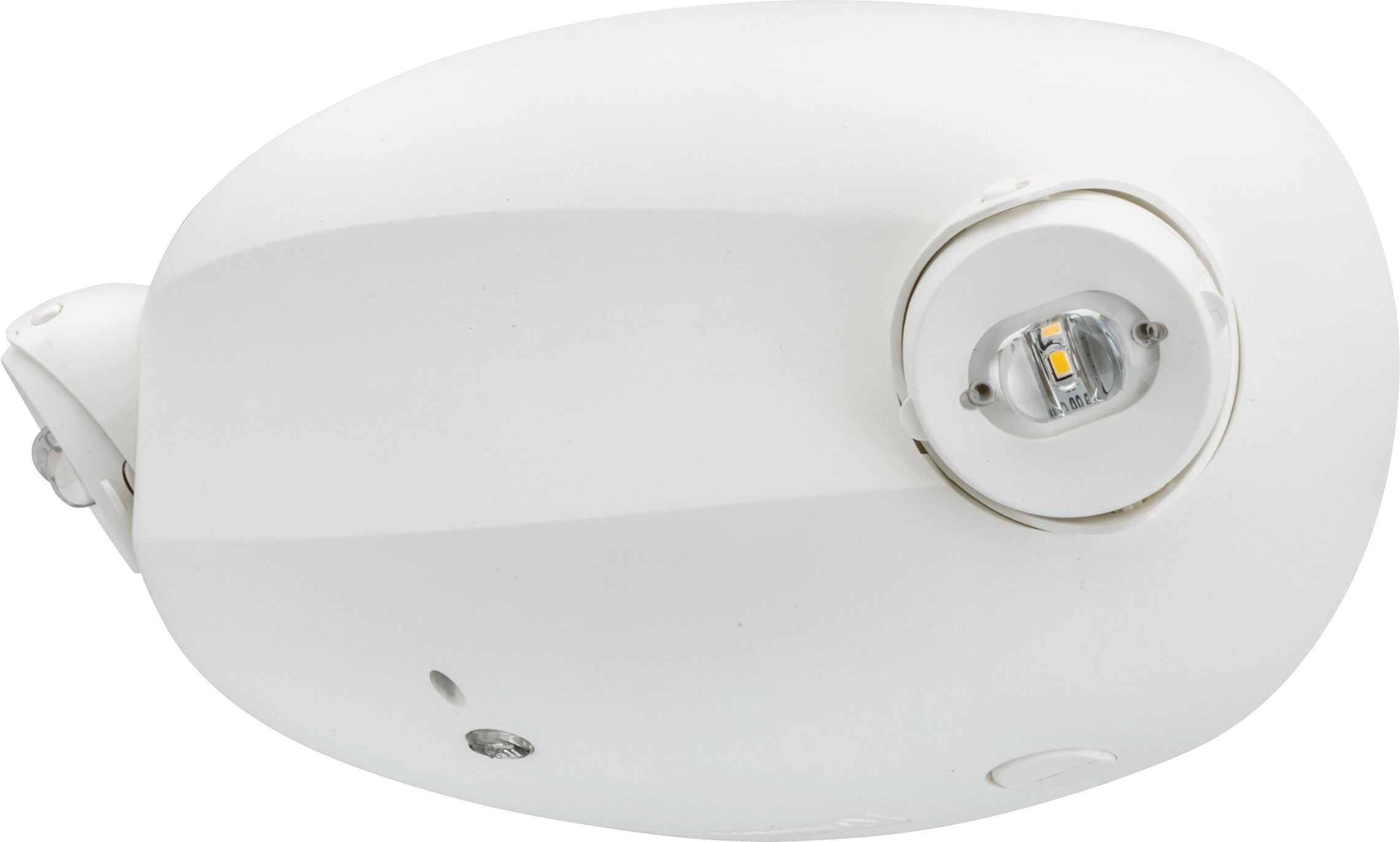

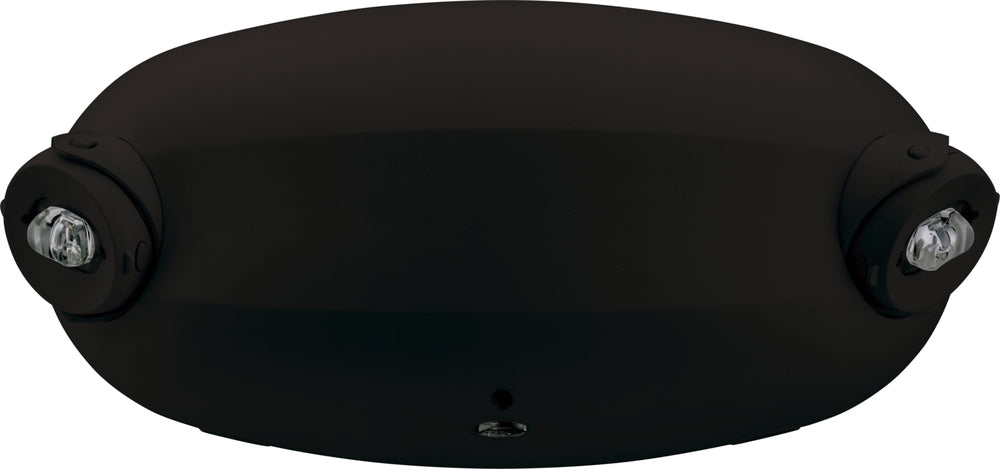

Acuity Brands ELM2L B M12 ELM2L emergency unit Quantum 220 lumens adjustable optics

Product Description

The ACUITY BRANDS ELM2L B M12 is a thermoplastic, dual round head emergency unit from the Quantum series, designed for emergency lighting. It features adjustable optics for ease of installation and maximum path of egress, providing 220 lumens of LED light. This unit is suitable for larger commercial indoor applications with mounting heights up to 12 feet, operating on 120/277 VAC. Its durable thermoplastic housing is 5VA flame rated, impact- and scratch-resistant, and corrosion-proof.

• Provides up to 35 feet spacing between units for wide coverage.
• Multiple voltage options including 120/277V and 120-347V.
• UL damp location listed, meeting Life Safety Code and state requirements.

Product Highlights

This emergency unit features adjustable optics, a 10-year LED lamp life, and is designed for surface mounting in damp locations.

Product Information

Standard Information

• Brand: ACUITY BRANDS
• Manufacturer Part Number: ELM2L B M12

Technical Specifications

• Light Source: LED Static
• Lumens: 220
• Color Temperature: 5000 K
• CRI: 70
• Product Type: Emergency Lighting Unit
• Environmental Listing: Damp Location
• Regulatory Listing: C-UL-US, NFPA 101, NFPA 70, NOM, UL
• Fixture Wattage: 0.4, 0.62, 1.33, 1.34, 1.64, 1.65 W
• Input Voltage: 120-347 VAC, 120/347 VAC, 220-240 VAC
• Mounting Type: Surface
• Series: ELM2L
• Material: Thermoplastic
• Style: Manual Testing
• Specific Uses For Product: General Purpose, Emergency Light
• Indoor Outdoor Usage: Indoor
• Power Source: Battery
• Control Method: Remote
• Lamp Wattage: 2.4 W
• Input Wattage: 0.36 W
• Fixture Type: Non Removable
• Shape: Oval
• Shade Material: Acrylic
• Amperage Rating: 0.018/0.012 A
• Average Life: 10 Years
• Frequency Rating: 60 Hz
• Lens Type: Acrylic
• Number of Heads: 2
• Type: Adjustable Optics
