Acuity Brands ECRGSQM6 Lithonia Emergency Exit Sign 120/277 VAC

Product Description

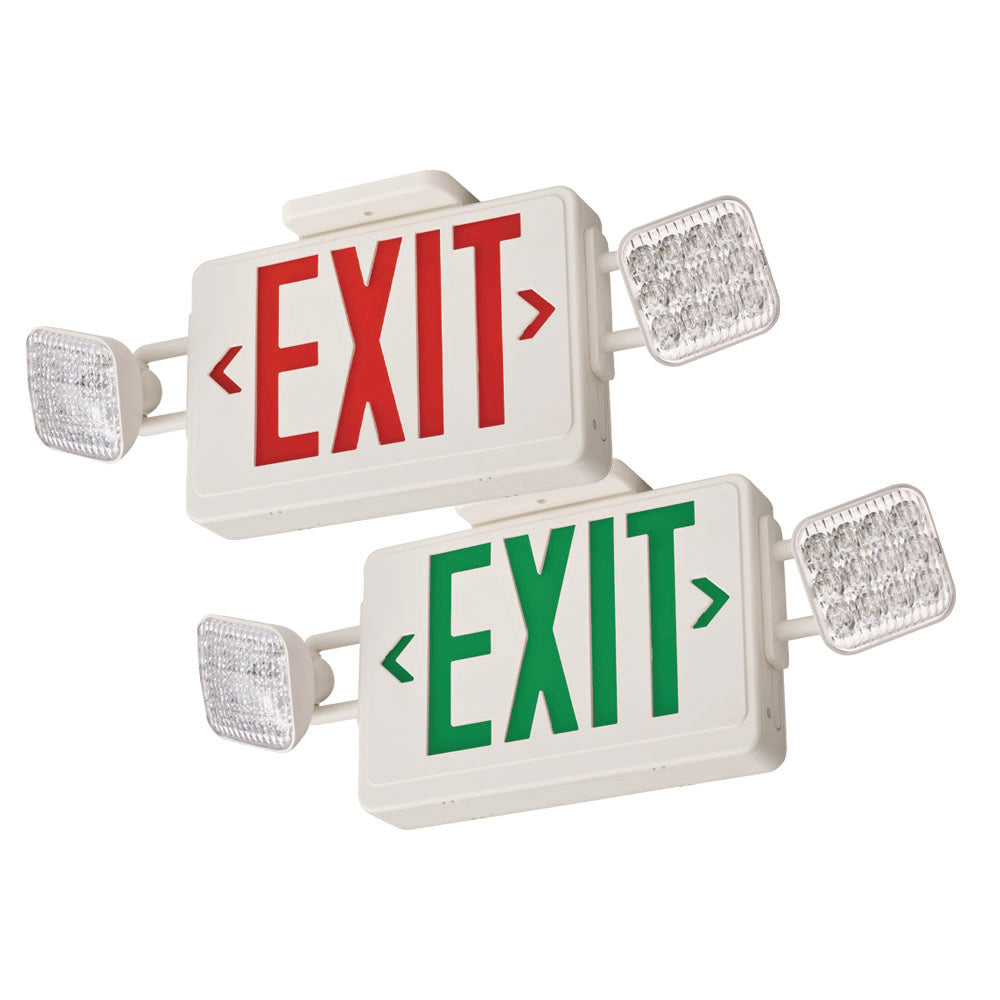

Acuity Brands ECRGSQM6 is a Lithonia emergency exit sign that operates on 120/277 VAC. This exit sign features an LED lamp and is designed for surface mounting. The ECRG series is known for its dual red/green legends and provides ultimate versatility on the job site.

• Internal toggle switch for red or green exit
• Test switch with indicator
• UL indoor damp location rated

Product Highlights

The ECRGSQM6 is suitable for various applications including education, government, healthcare, and retail. It is designed to withstand conditions from 50 to 104 degrees Fahrenheit.

Product Information

Standard Information

• Manufacturer: Acuity Brands
• Product Name: ECRGSQM6 Lithonia Emergency Exit Sign

Technical Specifications

• Amperage Rating: 0.03/0.02 A
• Average Life: 10 years
• Color Temperature: 6200 K
• Dimensions: 19.09 in W x 4.33 in D x 7.95 in H
• Fixture Wattage: 3.5 W
• Housing Material: Thermoplastic
• Mounting Type: Surface
• Number of Heads: 2
• Voltage Rating: 120/277 VAC
