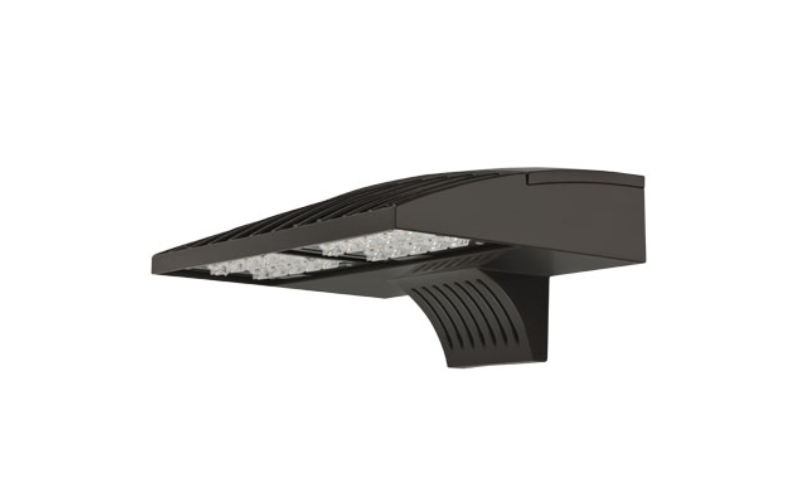

ACUITY BRANDS Acuity Brands DSXW1 D-Series Wall Pack 14-74W (Size 1) DSXW1
ACUITY BRANDS Acuity Brands DSXW1 D-Series Wall Pack 14-74W (Size 1) DSXW1

Acuity Brands DSXW1 D-Series Wall Pack 14-74W (Size 1) DSXW1

Brand: ACUITY BRANDS
SKU: DSXW1
Availability: In Stock

Ships same day if ordered by 12 pm
$313.01
$313.01
HAVE A QUESTION?

Our team is ready to help!

215-326-9845
  • Voomi Supply

    Secure Payments

  • Voomi Supply

    Easy Returns

  • Voomi Supply

    Expert Advice

  • Voomi Supply

    Fast Shipping

Description

Product Description

Acuity Brands DSXW1 is a D-Series Size 1 LED wall pack designed for outdoor building-mounted illumination. It offers selectable lumen packages (listed up to 11,000 lumens) and multiple fixture wattages (14, 20, 24, 27, 36, 40, 47, 74 W) with wide input voltage options and 0-10V dimming. The DSXW1 includes backlight control silicon optics and is suitable for perimeter, pathway, and security lighting with optional controls and emergency backup.

  • Multiple lumen packages (up to 11,000 lm) and fixture wattages (14–74 W) with backlight control silicone optics
  • Wide input voltage options (120, 120-277, 208, 240, 277, 347, 480 V) with 0-10V dimming and sensor control platform options
  • Surface wall mounting, IP65 environment rating, corrosion-resistant housing, and optional integral emergency battery backup

Product Highlights

Size 1 LED wall pack with backlight control optics, broad wattage and voltage options, 0-10V dimming, and optional sensor and emergency backup for exterior wall-mounted illumination.

Product Information

Standard Information

  • Brand: ACUITY BRANDS
  • Manufacturer Part Number: DSXW1
Technical Specifications
Brand
Acuity Brands
Model / MPN
DSXW1
Series
D-Series (Size 1)
Product Type
LED wall pack / outdoor wall luminaire
Shape
Rectangular
Light Source
LED - Static
Wattage
Selectable: 14, 20, 24, 27, 36, 40, 47, 74 W
Lumens
Selectable up to 11,000 lm (configurations down to ~1,500 lm available)
Color Temperature / CCT
3000 K, 4000 K, 5000 K, Amber Phosphor Corrected
CRI
70
Input Voltage
120 V; 120-277 V; 208 V; 240 V; 277 V; 347 V; 480 V
Dimming
0-10V (some configurations dim to 3-10%)
Control Options
Sensor Switch Standalone; integral sensor optional; other controls optional
Optics / Distribution
Backlight control silicone optics; multiple distributions (Direct, General Diffused, Type II, Type III, Type IV, Adjustable)
Mounting Type
Surface / Wall surface
IP Rating / Environment
IP65; corrosion-resistant housing
Integral Emergency Battery Backup
Optional (e.g., 10W and 20W integral EM options referenced)
Regulatory Listing / Certifications
CSA, NOM
Optics Material
Silicone (noted as silicon in some docs; likely silicone optics material)
Typical Applications
Outdoor building-mounted, perimeter, pathway, and security lighting
Dimensions
13.75" L x 10.00" W x 6.375" H (configuration-specific; verify ordering config for exact width)
