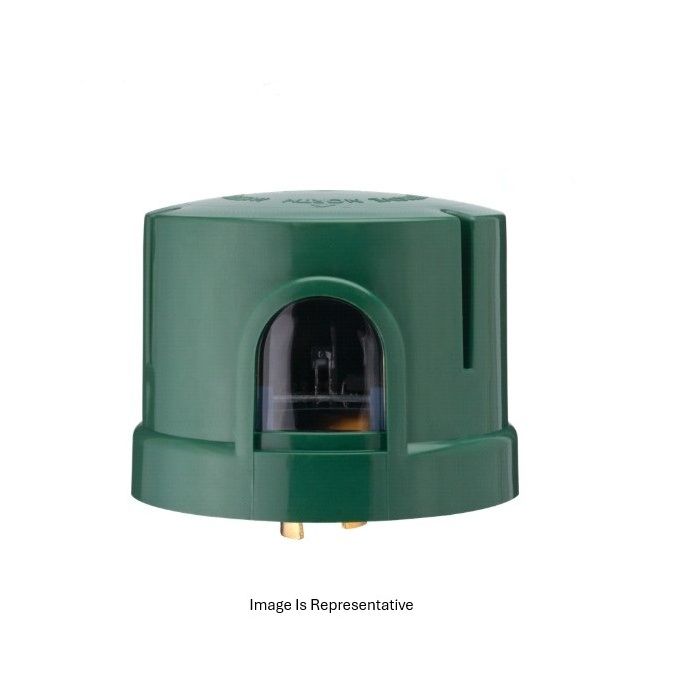

Acuity Brands DLL127F1.5JU Lithonia Lighting DLL Elite Electronic Locking Type Photocontrol 120-277V 1.5 ANSI

Product Description

The ACUITY BRANDS DLL127F1.5JU Lithonia Lighting DLL Elite electronic locking type photocontrol is designed for LED lighting fixtures requiring dusk-to-dawn control. It features superior in-rush current and surge-protection, supporting the extended life and low maintenance benefits associated with LED fixtures. This photocontrol has a design life of 20+ years.

• Designed to last as long as your LED lighting system, 20+ years
• Extreme surge protection of 1280J/40kA utility or 2120J/40kA UL listed
• Full wave rectified power supply

Product Highlights

This photocontrol is ideal for LED lighting fixtures, offering long life and extreme surge protection. It operates within a voltage rating of 120-277V and a temperature range of -40°C to +70°C.

Product Information

Standard Information

• Brand: ACUITY BRANDS
• Manufacturer Part Number: DLL127F1.5JU

Technical Specifications

• Manufacturer: Acuity Brands
• Voltage Rating: 120-277 V
• Sensor Type: Silicon
• Type: Electronic Locking Photocontrol
• Series: DLL Elite
• Temperature Rating: -40°C to +70°C
• Size: 3.25 INCH DIAMETER X 2.55 INCH HEIGHT
• Approval: UL (CANADA AND US)
• Application: LED Lighting Fixture, High Inrush Current Fixture
• Turn Off Light Level: 2.5 FC
• Turn On Light Level: 1.5 FC
• Tungsten Load Rating: 1000 WATT
• Ballast Load Rating: 1800 VOLT AMP
• Surge Arrester Rating: 1280 JOULE 40 KILOAMP
• Surge Arrester Type: Extreme
• RoHS Compliant: Yes
• Power Rating: 0.5 WATT AT 120 VOLT AC
• Failure Mode: Fail Off
• Applicable Standard: ANSI
