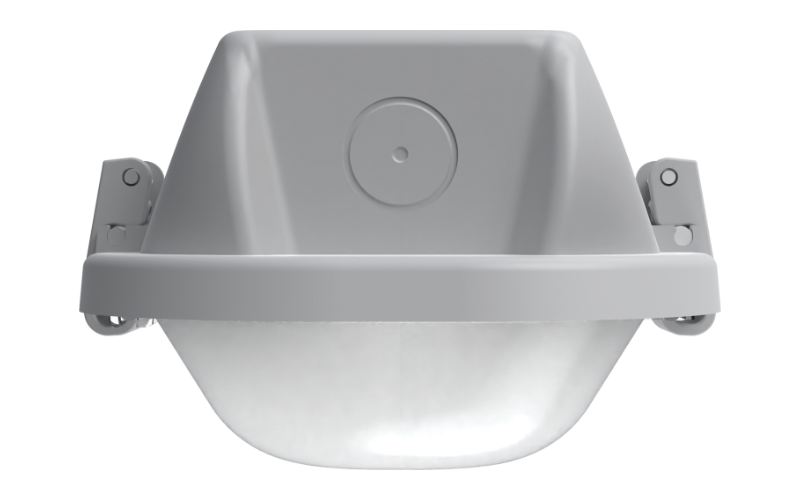

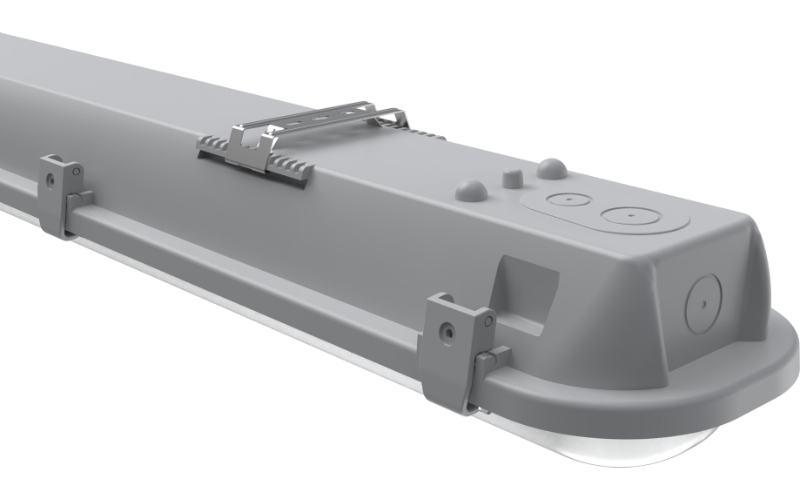

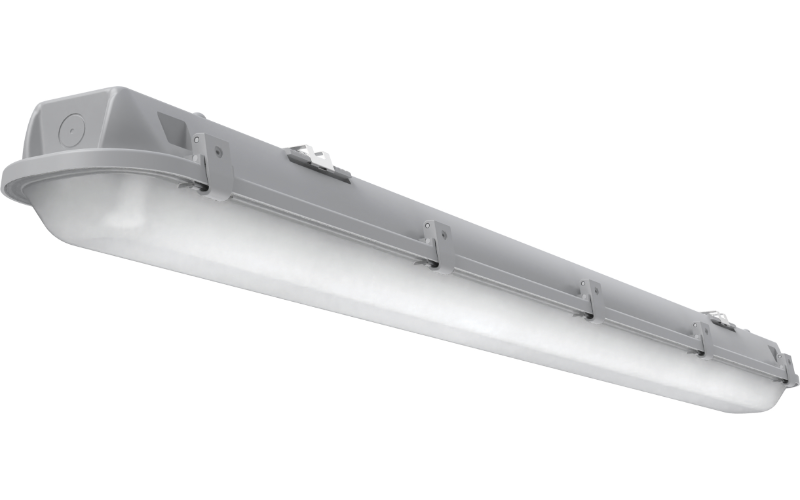

Acuity Brands CSVT L96 ALO4 MVOLT SWW3 80CRI Rectangular Vapor Tight Strip Light

Product Description

The Lithonia Lighting CSVT L96 ALO4 MVOLT SWW3 80CRI Rectangular Vapor Tight Strip Light operates on 120-277V and features an LED lamp. It provides switchable lumens (6000/8000/10000) and color temperatures (3500/4000/5000 K) with an 80 CRI. The fixture is constructed with a light gray polycarbonate housing and a frosted polycarbonate lens, making it suitable for damp/wet locations.

• Light gray polycarbonate housing ensures durability and protection.
• Poured in place polyurethane gasket provides a tight, vapor-proof seal.
• High efficiency LEDs meet DLC Standard for energy performance.

Product Highlights

This vapor tight LED strip light offers multi-voltage operation, switchable lumens, and color temperature for versatile applications in damp and wet environments.

Product Information

Standard Information

• Brand: ACUITY BRANDS
• Manufacturer Part Number: CSVT L96 ALO4 MVOLT SWW3 80CRI

Technical Specifications

• Manufacturer: Acuity Brands
• Brand: Lithonia Lighting
• MPN: CSVT L96 ALO4 MVOLT SWW3 80CRI
• Series: CSVT
• Input Voltage: 120 - 277 V
• Lamp Type: LED
• Lumens: 6000/8000/10000
• Light Color: White
• Color Temperature: 3500/4000/5000 K
• CRI: 80
• Lens Material: Frosted Polycarbonate
• Housing Material: Polycarbonate
• Mounting Type: Ceiling/Wall Mount
• Wattage: Switchable (Approx. 42 W, 87.9 W, 148 W)
• Optics: Direct, General Diffused, Adjustable
• Dimming: 0-10V (Dim to 3-10%)
• Controls/Network: Integral
• Lumen Maintenance: 120000 h
• Certifications: CSA, DLC*, NSF
• Environmental Rating: IP66, Vaporproof
