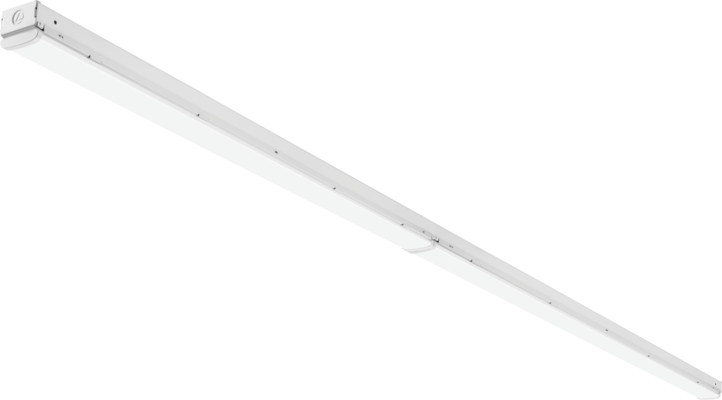

Acuity Brands CSSL96ALO4MVOLTSWW380CRI Led Striplight

Product Description

The ACUITY BRANDS CSSL96ALO4MVOLTSWW380CRI is a contractor-grade LED single striplight designed for general illumination in commercial and light industrial environments. This 96-inch fixture offers switchable lumen output selectable among 6000, 8000, and 10000 lumens, and a switchable color temperature allowing the installer to choose between 3500K, 4000K, and 5000K at the time of installation. It operates on a multi-volt driver accepting 120V to 277V input, making it compatible with standard commercial electrical services. The fixture delivers an 80 CRI rating, providing adequate color rendering for utility and task spaces. Electrical contractors and lighting installers are the primary trades for this fixture.

This striplight is suited for warehouses, storage areas, parking structures, utility rooms, and commercial back-of-house spaces where a surface-mounted or suspended linear fixture is required. The 96-inch body length covers a wide linear run, reducing the number of fixtures needed per installation. Switchable lumen and CCT settings allow a single SKU to meet varying foot-candle and color temperature requirements across different job sites or zones without stocking multiple part numbers.

Key Features

• Switchable lumen output: 6000, 8000, and 10000 lumens selectable at installation
• Switchable CCT: 3500K, 4000K, and 5000K field-selectable color temperature
• Multi-volt driver: operates from 120V to 277V without additional configuration
• 80 CRI rating for consistent color rendering in utility and task environments
• 96-inch fixture length for broad linear coverage
• LED light source for long service life and reduced maintenance intervals

Compatibility

Designed as an OEM-style LED single striplight for use in commercial and industrial surface-mount or pendant linear lighting applications requiring a 96-inch form factor with multi-volt input.

Installation Notes

Installation should be performed by a licensed electrician in accordance with NEC requirements for the applicable voltage and circuit configuration. Power must be de-energized at the branch circuit breaker and verified with a non-contact voltage tester before wiring or mounting. Verify that the junction box or mounting surface is rated for the fixture weight and length. Lumen output and CCT selector switches should be set before the fixture is energized for the first time.

Technical Specifications

• Fixture Length: 96 inches
• Lumen Output (Switchable): 6000, 8000, 10000 lumens
• Input Voltage: 120V to 277V (multi-volt)
• Color Temperature (Switchable CCT): 3500K, 4000K, 5000K
• Color Rendering Index: 80 CRI
• Light Source: LED
• UPC: 193048852738

Standard Information

• Brand: ACUITY BRANDS
• Manufacturer Part Number: CSSL96ALO4MVOLTSWW380CRI
