Acuity Brands CPX Cpx LED panel 27.6-51W (1x4/2x2/2x4) CPX

Brand: ACUITY BRANDS
SKU: CPX
Availability: In Stock

Ships same day if ordered by 12 pm
$76.01
$76.01
HAVE A QUESTION?

Our team is ready to help!

215-326-9845
  • Voomi Supply

    Secure Payments

  • Voomi Supply

    Easy Returns

  • Voomi Supply

    Expert Advice

  • Voomi Supply

    Fast Shipping

Description

Product Description

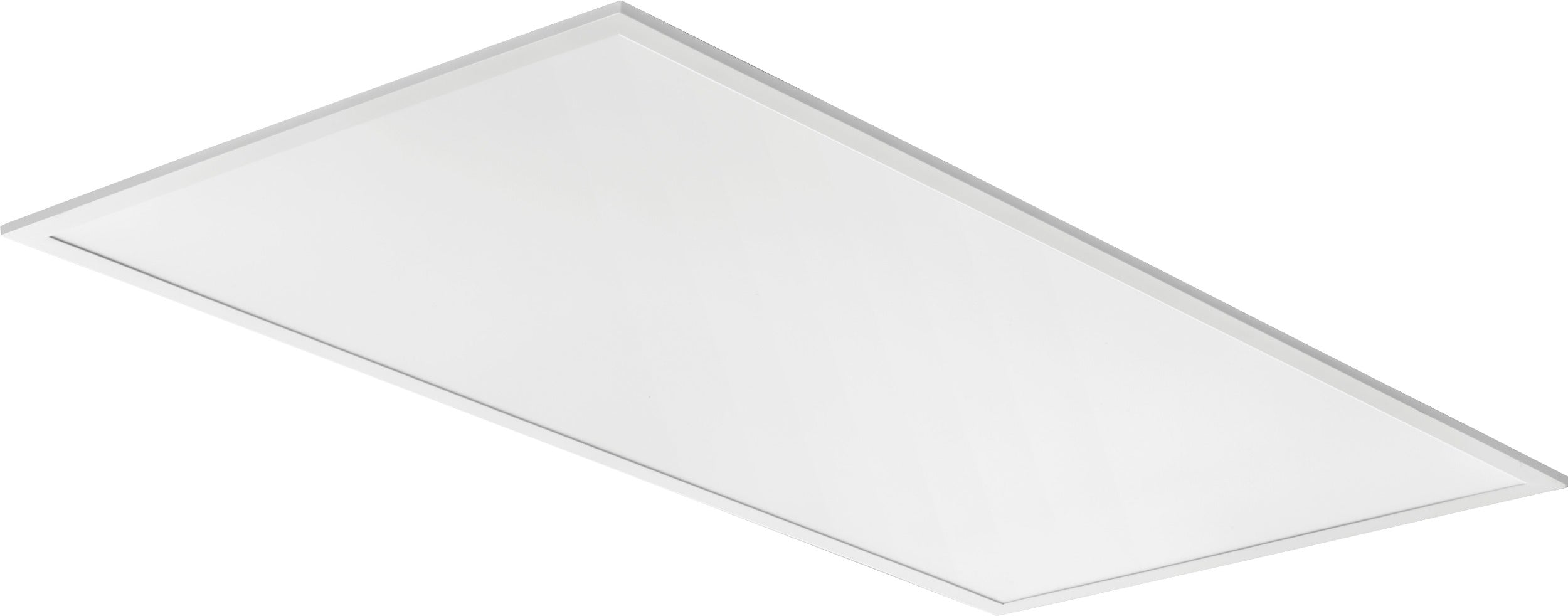

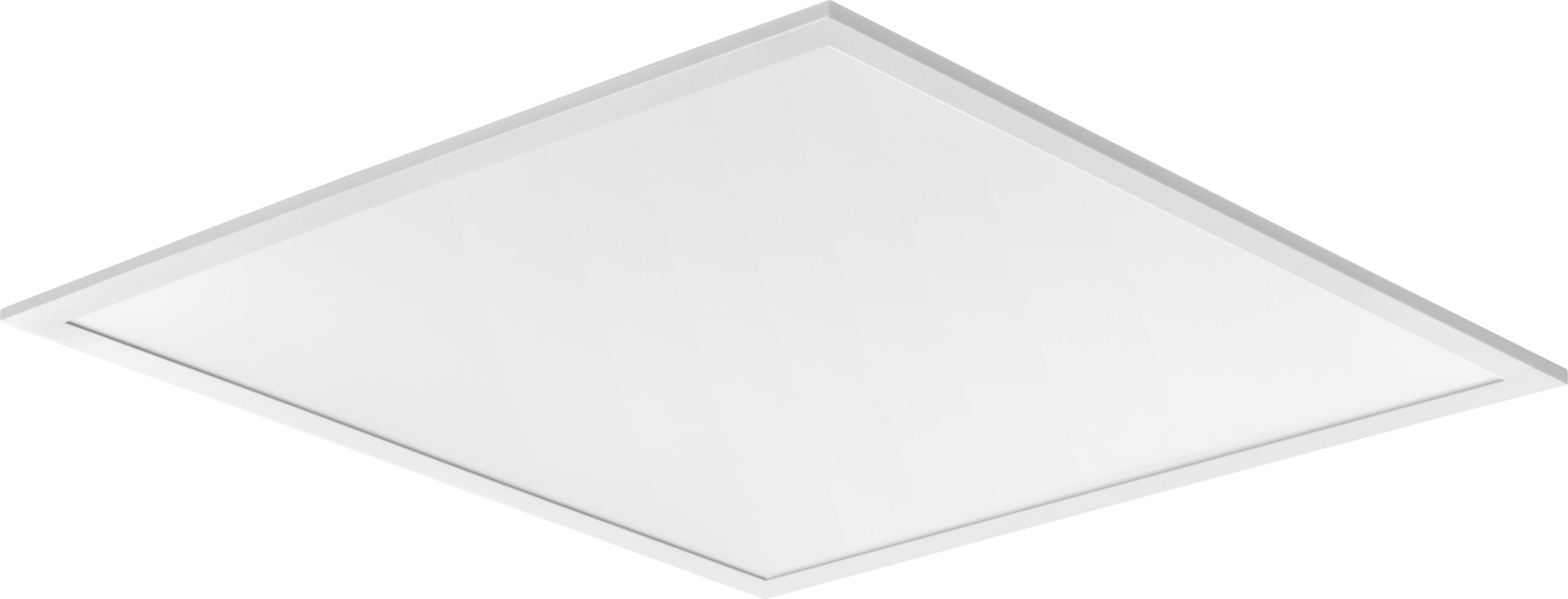

Acuity Brands CPX is an LED flat panel that provides a smooth, even lens appearance with configurable lumen and color temperature options. The CPX supports sizes 1x4, 2x2, and 2x4, adjustable light output and switchable or tunable white settings, and is compatible with SensorSwitch and nLight controls. It offers fixture wattages from 27.6 to 51 W, multiple voltage ratings, 0-10V dimming, and a damp-location listing with CSA regulatory approvals.

  • Available in 1x4, 2x2, and 2x4 sizes with recessed, surface, or suspended mounting
  • Switchable lumen and switchable/tunable white options; high lumen packages up to 10,000 lumens
  • Control options include SensorSwitch and nLight; dimming via 0-10V and compatible digital control platforms

Product Highlights

LED flat panel with switchable lumen and CCT, multiple mounting methods, 27.6–51 W range, SensorSwitch and nLight control compatibility

Product Information

Standard Information

  • Brand: ACUITY BRANDS
  • Manufacturer Part Number: CPX
Technical Specifications
Brand
Acuity Brands
Manufacturer Part Number
CPX
Product Type
Flat Panel
Series
CPX, CPXC
Size
1x4, 2x2, 2x4
Light Source
LED - Dynamic
Dynamic Features
Switchable lumen, Switchable White, Tunable White, Adjustable Light Output (ALO)
Lumens
2500 lm, 3200 lm, 3400 lm, 4000 lm, 4300 lm, 5000 lm, 6000 lm; high lumen packages up to 10,000 lm
CCT (Color Temperature)
2700K, 3000K, 3500K, 4000K, 5000K, variable
CRI
80, 90
Fixture Wattage
27.6 to 51 W (varies by configuration)
Voltage Rating
120, 120-277, 120-347, 277, 347, 57 VDC (driver output/low-voltage options noted)
Control Platform
SensorSwitch (including Wireless SensorSwitch AIR), nLight
Dimming Protocol
0-10V (digital dimming options available)
Mounting Type
Recessed, Surface, Suspended
Maintenance Access
Top Access
Environmental Listing
Damp Location
Regulatory Listing
CSA, CSAus
Catalog Number
CPX2X4ALO8SWW7M2 (example configuration from product listing)
