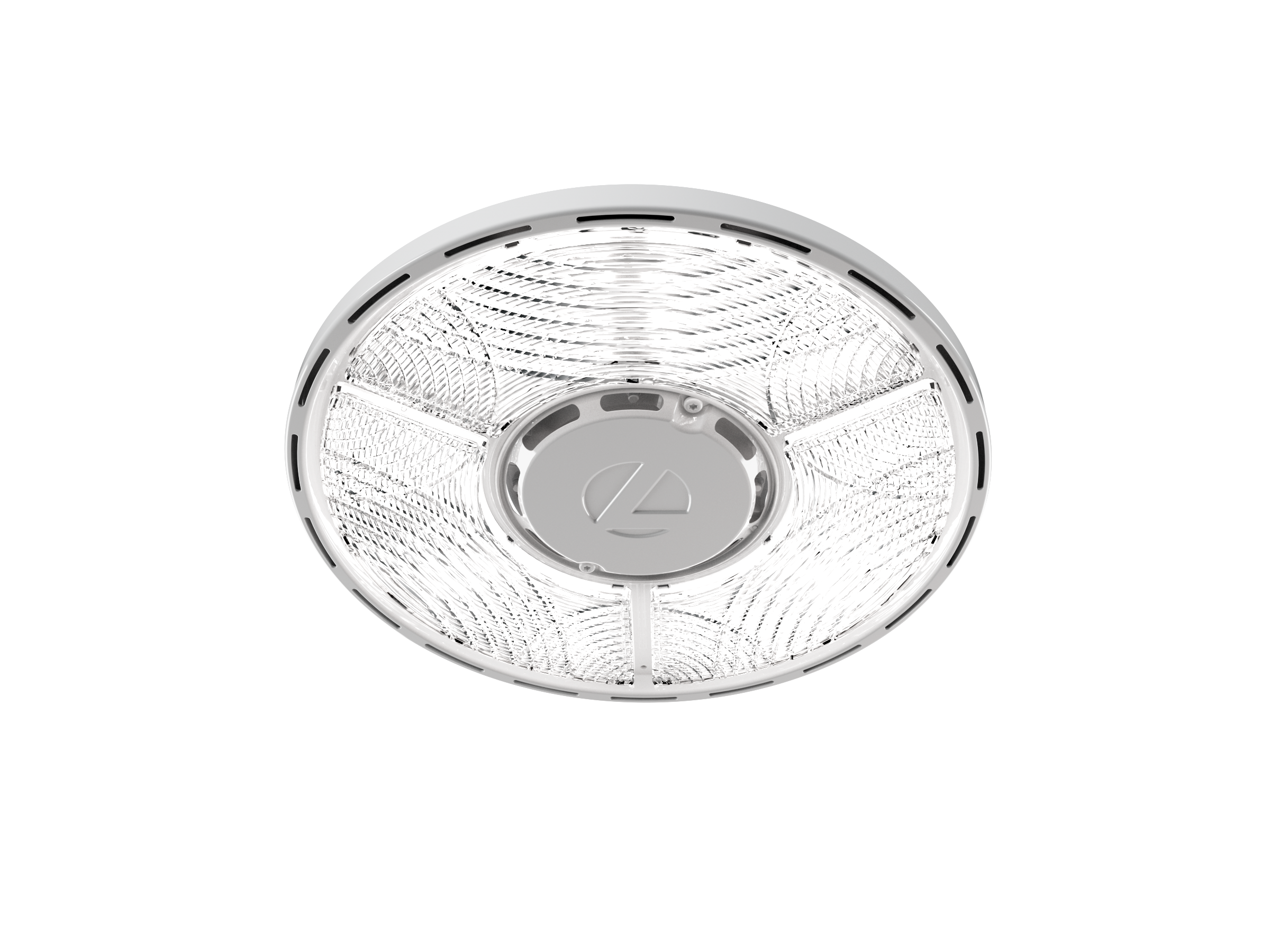

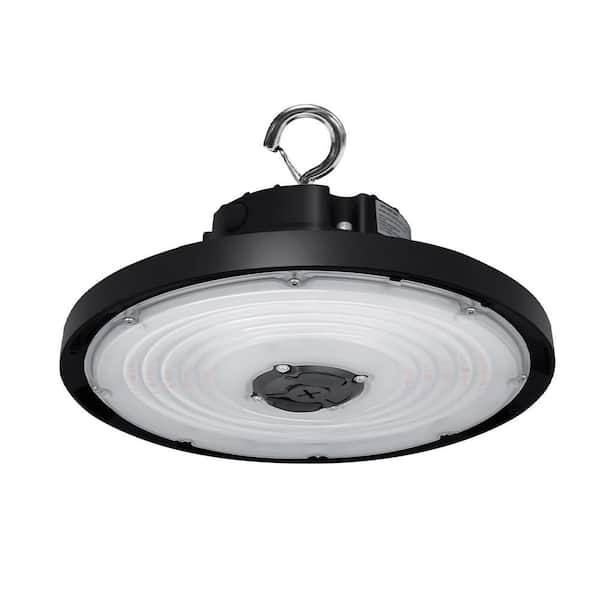

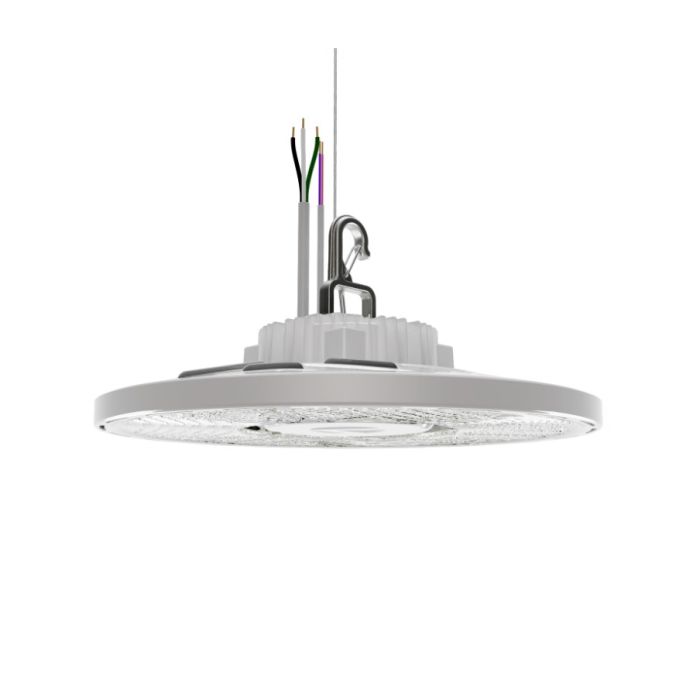

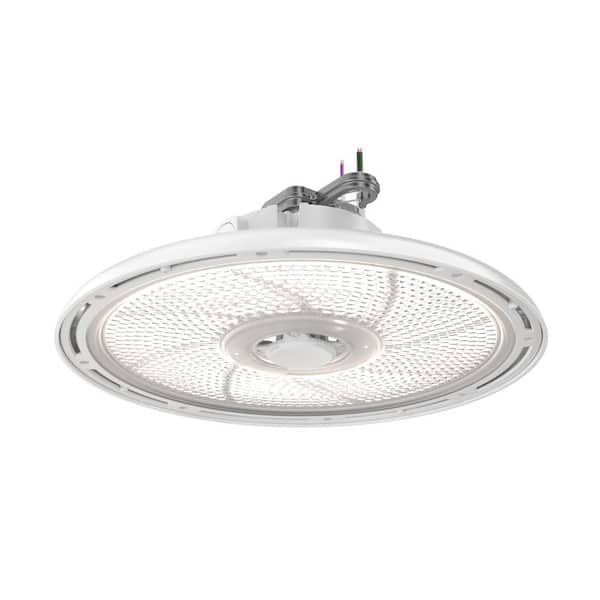

Acuity Brands CPRB ALO14 UVOLT SWW9 80CRI DWH LED Round High Bay 195 Watts

Product Description

The ACUITY BRANDS CPRB ALO14 UVOLT SWW9 80CRI DWH LED Round High Bay features adjustable light output, offering lumen choices of 21,000, 24,000, or 27,000 lumens. Selectable CCT provides 4000K or 5000K color temperature options. It supports 120-347 VAC and consumes 148, 175, or 195 watts based on lighting selections. The high bay has a color rendering index (CRI) of 80 and dimensions of 15.14 x 15.14 x 3.35 inches.

• Compact design for quick installation.
• Features a patent-pending innovative control lens.
• Equipped with robust 6kV surge protection per ANSI standards.

Product Highlights

Ideal for industrial applications, warehouses, gymnasiums, and multi-purpose rooms. Offers adjustable lumens and selectable color temperatures.

Product Information

Standard Information

• Brand: ACUITY BRANDS
• Manufacturer Part Number: CPRB ALO14 UVOLT SWW9 80CRI DWH
• Country of Origin: CN

Technical Specifications

• Manufacturer: Acuity Brands
• Fixture Wattage: 148, 175, 195 Watts
• Housing Finish: White
• Lamp Type: LED
• Voltage Rating: 120-347 VAC
• Type: LED Round High Bay
• Series: CPRB
• Lighting Technology: LED
• Color Temperature: Selectable, 4000k, 5000k CCT
• Color Rendering Index (CRI): 80
• Lens Type: Polycarbonate Lens
• Lumens: 21000, 24000, 27000 Lumens
• Alternate Catalog Number: 27788T
• Application: Common Areas,Sports and Recreation,Warehouses
• Average Life: 54000 Hours
• Buy American Compliant: C
• Catalog Number: CPRBALO14UVOLTSWW980CRIDWH
• Dimmable: YES
• EU RoHS Indicator: C
• Height: 3.35 in
• Height [Metric]: 8.5090 cm
• Length: 15.14 in
• Length [Metric]: 38.4556 cm
• Mounting: Pendant,Surface,Suspended
• Product Type: High Bay
• Shape: Round
• Standard: CSA
• UNSPSC: 39112102
• UPC 11: 19618261506
• UPC 12: 196182615061
• Wattage: 194 W
• Width: 15.14 in
• Width [Metric]: 38.4556 cm
