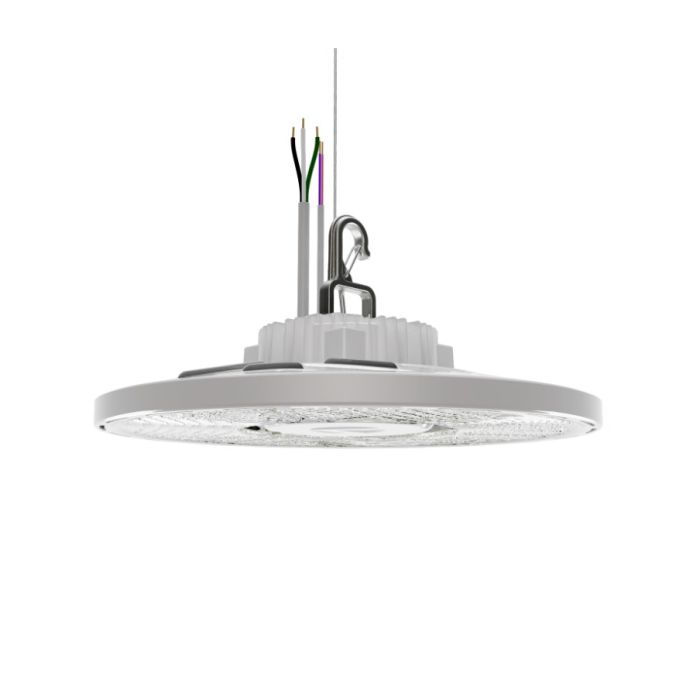

Acuity Brands Cprb Alo13 Uvolt Sww9 80cri Dwh Led Round High Bay

Product Description

The ACUITY BRANDS cprb alo13 uvolt sww9 80cri dwh is a compact LED round high bay fixture built for light-duty industrial and commercial applications. Part of the Compact Pro High Bay series, this fixture delivers adjustable light output at 12,000, 15,000, or 18,000 lumens depending on the selected setting, with corresponding wattage of 83, 106, or 132 watts. It operates across a universal voltage range of 120 to 347 VAC, making it suitable for a variety of electrical service configurations. The 80 CRI rating ensures adequate color rendering for task and general illumination in large indoor spaces. A selectable CCT function allows field choice between 4000K and 5000K color temperature to match the lighting environment.

This fixture is designed for use in light industrial and commercial indoor spaces including warehouses, gymnasiums, multi-purpose rooms, and similar large-area facilities. It is intended as a one-for-one replacement for conventional HID and fluorescent high bay systems. The compact, low-profile form factor reduces installation time and simplifies mounting in standard high bay configurations. Its budget-oriented design makes it a practical choice for contractors working within cost-constrained projects that still require reliable, long-life LED performance.

Key Features

• Adjustable lumen output: 12,000, 15,000, or 18,000 lumens selectable in the field
• Selectable CCT: 4000K or 5000K color temperature options
• Universal voltage input: 120 to 347 VAC
• Three wattage settings: 83, 106, or 132 watts corresponding to lumen selection
• 80 CRI for reliable color rendering in general illumination environments
• Polycarbonate lens with medium light distribution pattern
• Compact low-profile design for faster, easier installation

Compatibility

Designed as an OEM-style replacement for conventional HID and fluorescent round high bay fixtures in light industrial and commercial indoor applications.

Installation Notes

Installation should be performed by a qualified electrician in accordance with the National Electrical Code (NEC) and all applicable local codes. Disconnect and lock out all power to the circuit before mounting or wiring the fixture. Verify that the supply voltage matches the fixture's rated input range before energizing. Lumen output and CCT selections should be configured prior to final installation where accessible.

Technical Specifications

• Lamp Type: LED
• Series: CPRB Compact Pro High Bay
• Lumen Output (Max): 18,000 lumens
• Selectable Lumen Options: 12,000, 15,000, 18,000 lumens
• Wattage Options: 83, 106, 132 watts
• Voltage Rating: 120-347 VAC (UVOLT)
• Color Temperature (CCT): Selectable 4000K or 5000K
• Color Rendering Index (CRI): 80
• Lens Type: Polycarbonate
• Light Distribution: Medium
• Housing Finish: White
• Length: 12.98 inches
• Width: 12.98 inches
• Depth: 3.16 inches

Standard Information

• Brand: ACUITY BRANDS
• Manufacturer Part Number: cprb alo13 uvolt sww9 80cri dwh
