Acuity Brands Cphb 18lm Mvolt 50k Led High Bay 134W 18000lm

Product Description

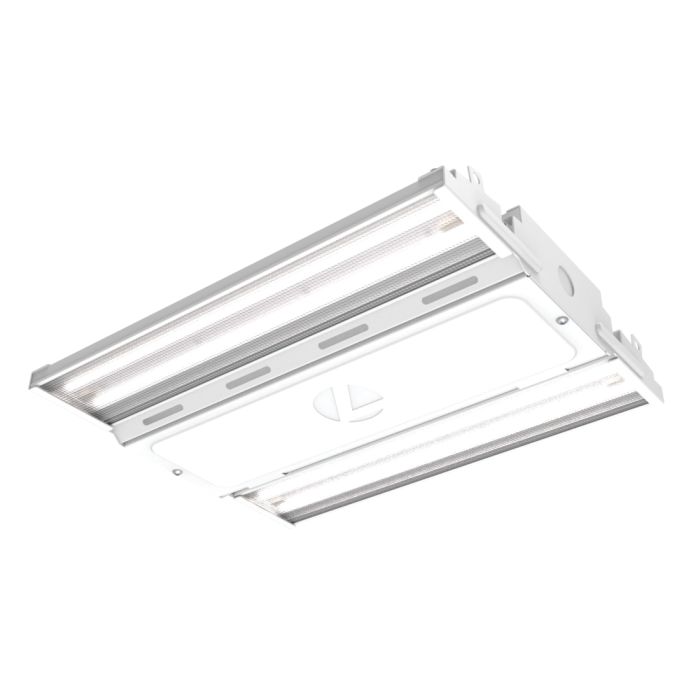

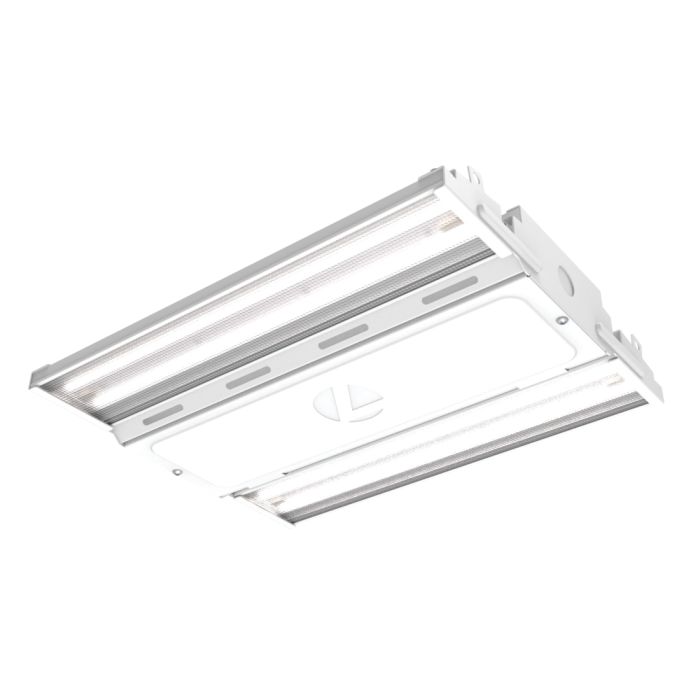

The ACUITY BRANDS cphb 18lm mvolt 50k is a hardwired rectangular LED high bay fixture designed for industrial and commercial overhead lighting applications. Rated at 134 watts with an output of 18000 lumens and a 5000K color temperature, it delivers a cool daylight appearance suited to warehouses, manufacturing floors, and large commercial spaces. Efficacy exceeds 135 lumens per watt, placing it firmly in the high-performance tier for energy-efficient overhead lighting. The fixture runs on a wide voltage range of 120 to 277 volts, making it compatible with standard commercial distribution panels without a dedicated driver or transformer. An acrylic glare control lens reduces harsh hotspots while maintaining broad illumination coverage. Rated at 100000 hours average lamp life, it is built for long service intervals in demanding environments.

This fixture is suited for pendant, surface, or suspended mounting configurations in single-phase or multi-phase commercial and industrial electrical systems. Its compact rectangular profile — 14.44 inches long by 11.52 inches wide by 2.3 inches high — allows it to fit in tight ceiling conditions and simplifies installation where larger fixtures would be impractical. It is a practical choice for new construction retrofits or direct replacements in facilities requiring consistent, high-output overhead lighting with minimal maintenance overhead. Licensed electricians and electrical contractors are the typical installers for this class of hardwired luminaire.

Key Features

• 134-watt static LED lamp with 18000 lumens output at greater than 135 lumens per watt efficacy
• 5000K color temperature for daylight-spectrum illumination in industrial and commercial spaces
• Wide-voltage operation from 120 to 277 volts covers standard commercial supply configurations
• Acrylic glare control lens reduces visual discomfort and hotspot intensity
• Compact rectangular housing at 14.44 x 11.52 x 2.3 inches simplifies handling and installation
• 100000-hour average rated life reduces relamping labor in high-bay applications
• White housing finish with pendant, surface, or suspended mounting support

Compatibility

Designed for hardwired installation in commercial and industrial electrical systems operating at 120 to 277 volts single-phase. Part of the CPHB Series of compact high bay fixtures from Acuity Brands.

Installation Notes

Installation must be performed by a licensed electrician in accordance with the National Electrical Code (NEC) and all applicable local codes. De-energize the circuit at the breaker panel and verify zero voltage with a meter before making any wiring connections. Confirm that the mounting structure — whether pendant, surface, or suspended — is rated to support the fixture weight and meets applicable load requirements. Do not bypass the acrylic lens or operate the fixture with the lens removed, as the lens is part of the glare control design.

Technical Specifications

• Fixture Wattage: 134 watts
• Lumens: 18000 lumens
• Efficacy: greater than 135 lumens per watt
• Color Temperature: 5000K
• Voltage Rating: 120 to 277 volts
• Lamp Type: Static LED
• Average Rated Life: 100000 hours
• Lens Type: Acrylic Glare Control
• Mounting Type: Pendant, Surface, or Suspended
• Dimensions: 14.44 inches L x 11.52 inches W x 2.3 inches H
• Housing Finish: White
• Wiring Type: Hardwired
• Series: CPHB Series

Standard Information

• Brand: ACUITY BRANDS
• Manufacturer Part Number: cphb 18lm mvolt 50k
