Acuity Brands 7B2W TOR R24 6 inch Baffle Narrow Flange Standard Resale Pack of 24

Product Description

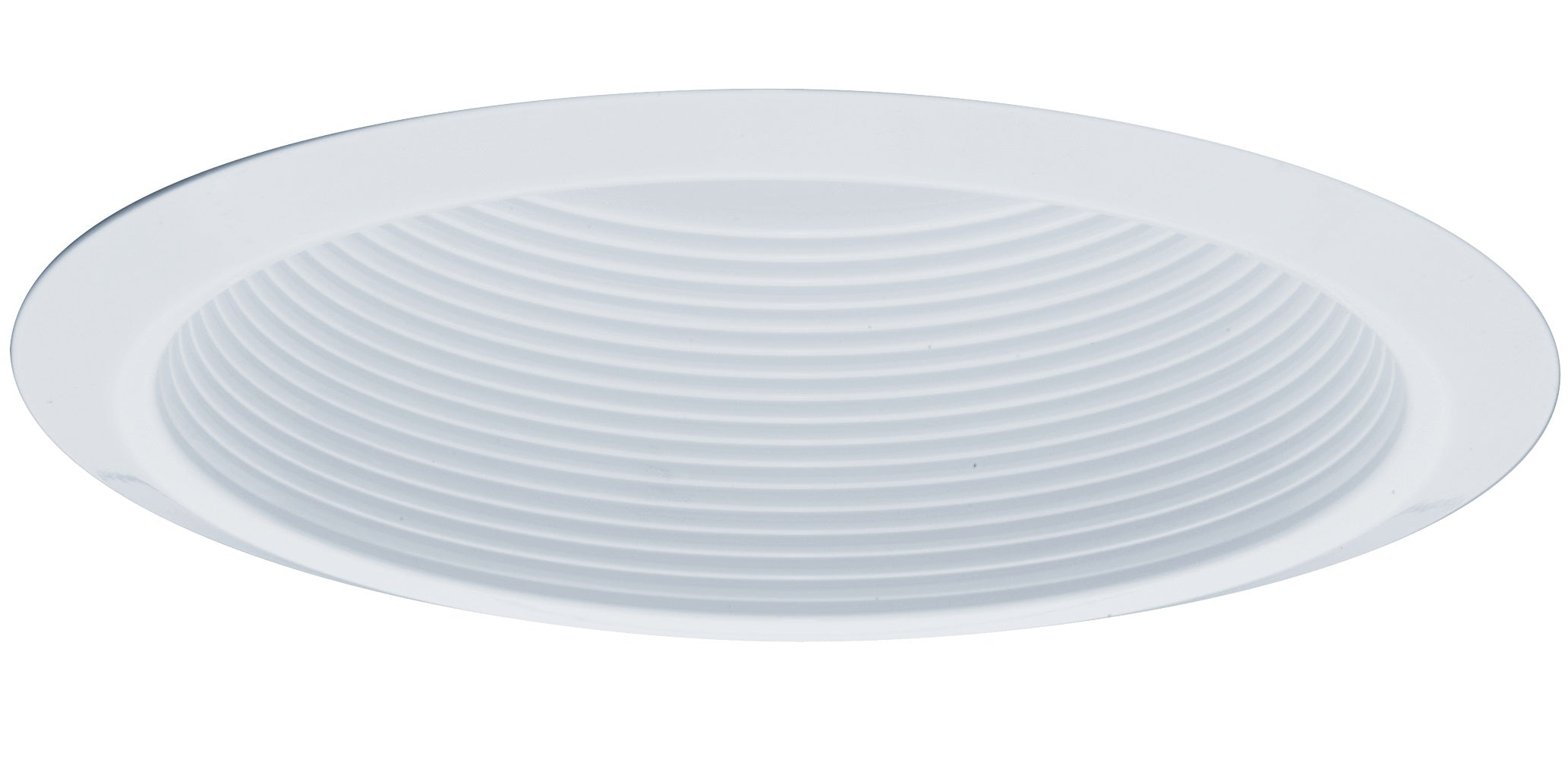

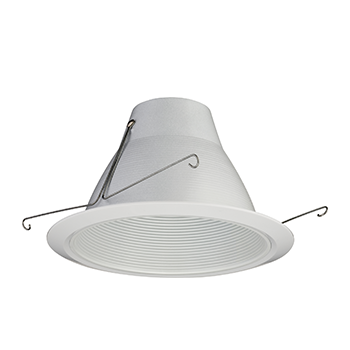

The ACUITY BRANDS 7B2W TOR R24 is a 6-inch round baffle narrow flange standard trim designed for recessed lighting applications. This trim features a torsion spring mounting type and is suitable for use with compatible housings like L7X and L7XR. Its baffle design effectively controls glare by absorbing stray light, minimizing ceiling brightness and providing a crisp, classic look. This product is UL, cUL, and CSA regulatory listed, ensuring compliance with safety standards.

• Effective glare control for comfortable illumination.
• Baffle steps absorb stray light, reducing glare and ceiling brightness.
• Classic baffle design with crisp lines, presenting a smaller aperture.

Product Highlights

This ACUITY BRANDS 7B2W TOR R24 baffle trim offers effective glare control and a classic aesthetic for recessed lighting, featuring a torsion spring for easy installation and UL/CSA compliance.

Product Information

Standard Information

• Brand: ACUITY BRANDS
• Manufacturer Part Number: 7B2W TOR R24
• Country of Origin: China

Technical Specifications

• Size: 6 IN
• Shape: Round
• Product Type: Trim
• Certifications: CSA, cUL, UL
• Trim Style: Baffle
• Mounting Type: Recessed
• Housing Compatibility: L7X, L7XR
• Spring Type: Torsion Spring
• Packaging: Resale Pack of 24
• ECCN: EAR99
• Country of Origin: CN - China
• UPC: 74597523141
• UNSPSC: 39111515
• Series: Contractor Select
• Air Rating: Airtight
• Fixture Type: 6 in. Housing
• Insulation Rating: IC/Non-IC
• Lamp Base Type: GU24
• Environmental Conditions: Indoor
• Lens: No
• Hardware: Yes
