Honeywell M9185C1006 Modutrol IV Motor 60 lb-in (Single Unit) Replacement MPN

Product Description

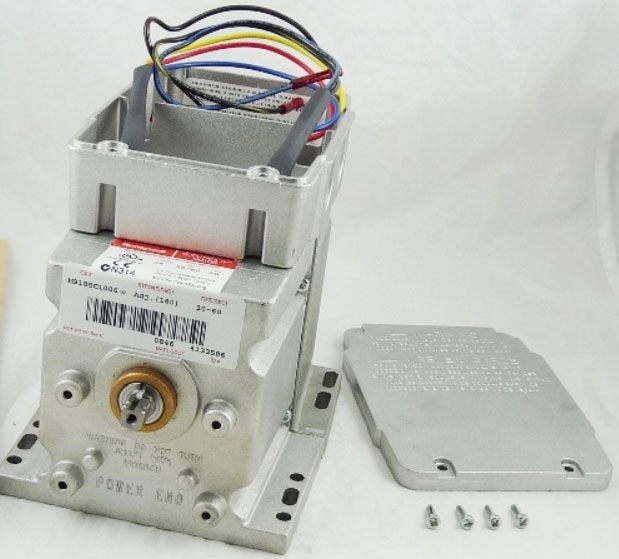

The Honeywell M9185C1006 is a Modutrol IV Motor designed for controlling dampers and valves. It operates with a power supply of twenty-four volts and features a spring return mechanism. This motor is capable of providing a torque rating of sixty inch-pounds and includes a timing range of thirty to sixty seconds.

• Control Signal: Proportional, 135 Ohm
• Die Cast Aluminum construction for durability
• Adjustable, Asymmetrical Stroke for versatile applications

Product Highlights

The M9185C1006 motor is engineered for efficient performance in HVAC applications. Its wiring box provides NEMA 3 weather protection, ensuring reliable operation in various environments.

Product Information

Standard Information

• Brand: Honeywell
• MPN: M9185C1006

Technical Specifications

• Torque Rating: 60 Inch-lb
• Control Signal: Proportional, 135 Ohm
• Fail Safe Mode: Spring Return
• Rotation Angle: CW
• Shaft Size: 3/8 Inch
• Power Consumption: 20 VA
• Dimensions: 6-7/16 Inch H x 5-1/2 Inch W x 8-3/4 Inch D
• Operating Temperature: -40 to 150 deg F
