Product Description

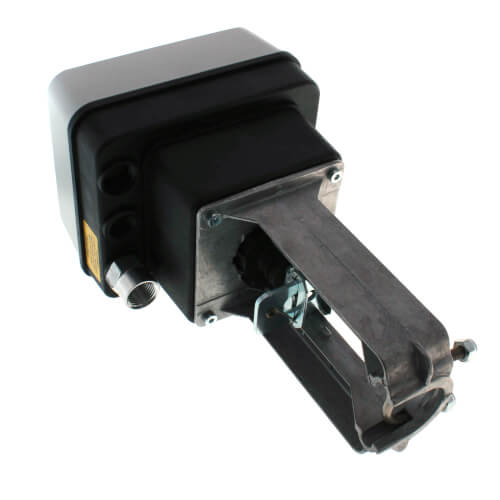

The Honeywell ML6425A3022 Spring Return Valve Actuator is expertly designed to provide consistent, high-quality operation in HVAC setups. Engineered with direct coupling and a linear stroke, this 24-volt actuator ensures precise control with its robust 135 lbf of stem force. Utilizing a floating or switched single-pole double-throw (SPDT) output, it is ideal for applications involving standard Honeywell valves.
- Direct coupled with no additional linkage required.
- Features a convenient stem-down configuration upon power failure for safety.
- Supports both floating and switched SPDT control signals for versatile operations.
Product Highlights
Designed for straightforward mounting on Honeywell’s V5011 and V5013 valve families, ML6425A3022 ensures an easy installation process without the need for external adjustments. The durable construction offers a reliable performance with a lower power consumption, increasing the efficiency of heating, ventilation, and air conditioning systems.
Product InformationStandard Information
-
Operating Voltage: 24V AC
-
Operating Force: 135 lbf
Technical Specifications
-
Mounting: Directly on V5011/V5013 Globe Valves and VGF Flanged Globe Valves
-
Temperature Rating: Operates up to 300 Fahrenheit
-
Protection Class: IP54, ensuring dust and water resistance
-
Material: High-quality ABS-FR Plastic enhances durability
-
Stroke: 3/4 inch
-
Dimensions: 11 1/4 inches high x 5 5/16 inches wide x 6 5/16 inches deep
-
Weight: 5.1 lb
