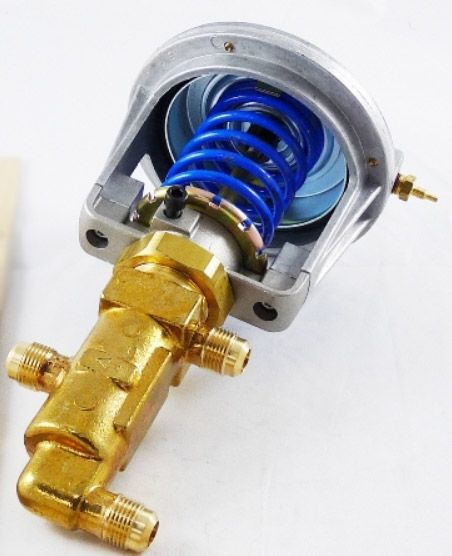

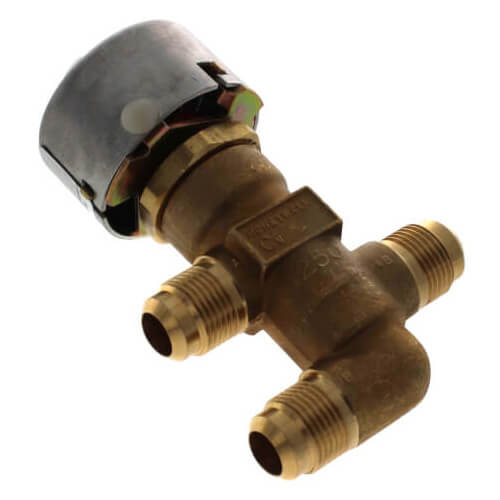

Honeywell VP522B1003 Three-Way Diverting Valve 1.5CV

Product Description

The Honeywell VP522B1003 is a three-way diverting valve designed for effective flow control in HVAC applications. This unit features a quarter inch (3/8 inch and 1/2 inch O.D.) flare connection and has a flow capacity of one point five (1.5) CV. It is suitable for controlling both hot and cold water in fan coil and induction units.

• Corrosion-resistant bronze body.
• Molded-in composition discs ensure tight shutoff.
• Operator can rotate three hundred sixty degrees for easy air piping alignment.

Product Highlights

This valve is ideal for proportional control and can handle various pressure ranges, making it suitable for diverse heating and cooling systems.

Product Information

Standard Information

• MPN: VP522B1003
• Brand: Honeywell

Technical Specifications

• Valve Size: 1/2 inch
• Body Material: Bronze
• Max Pressure: 150 psi WOG
• Weight: 5.00 lbs
• Piping Configuration: Straight
• Temperature Range: 35°F to 250°F
• Air Connections: 1/8 NPT
• Flow Capacity: 1.5 CV
